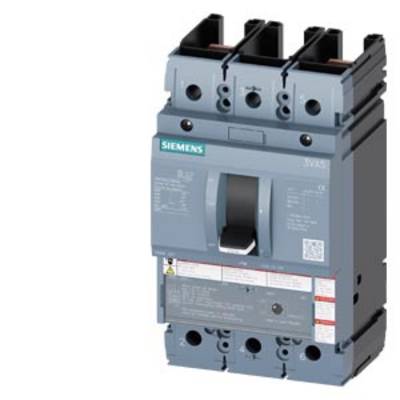

Siemens 3VA5217-7ED61-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 175 - 175 A Switching voltage (max.): 69
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
175 A
Type
3VA5217-7ED61-0AA0
Amperage adjustment range (min.)
175 A
Adjustment range (amperage)
175 - 175 A
Datasheet (PDF)
Technical specifications
- Design: System Protection
- Power loss: 11.7 W
- Weight: 1.5 kg
- Mechanical life: 15000
- Electrical life: 8000
- Isolation voltage: 800 V
- Mains frequency: 50/60 Hz.
- Product type
Circuit breaker
- Type
3VA5217-7ED61-0AA0
- Amperage adjustment range (min.)
175 A
- Amperage adjustment range (max.)
175 A
- Adjustment range (amperage)
175 - 175 A
- No. of pins
2-pin
- Switching voltage (max.)
690 V AC
- Mounting type
Fixed
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Breaking capacity rating
C
- OCR type
TM210
IP40
- Depth
83 mm
- Width
105 mm
- Height
185 mm
- Dim
(W x H x D) 105 x 185 x 83 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
175 A
2
175-175 A
0
690-690 V
23 W
IP40
Other
FALSE
Other
Rocker lever
110 kA
1750-1750 A
TRUE
FALSE
TRUE
Built-in device fixed built-in technique
TRUE
TRUE
Documents & Downloads
Datasheet
Datasheet 1726705 Siemens 3VA5217-7ED61-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 175 - 175 A Switching voltage (max.): 69
User & Safety Instructions
User & Safety Instructions 1726705 Siemens 3VA5217-7ED61-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 175 - 175 A Switching voltage (max.): 69
Description
circuit breaker 3VA5 UL frame 125 breaking capacity class M 35kA @ 480V 3-pole, line protection TM210, ftfm, In=20A overload protection ir=20A fixed short circuit protection iI=10 x In ul489 sb (naval), 50 deg cel. w/o connection 3VA5 molded-case circuit breaker for cable protection, UL approval. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA UL molded-case circuit breakers from Siemens provide effective plant and starter protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA UL sets new standards in terms of flexibility and the variety of modular accessories available. The 3VA UL molded-case circuit breakers also offer the perfect conditions for machine and switchgear manufacturers who export worldwide. Alongside the IEC standard, both the 3VA5 and 3VA6 range also meet the UL standard. All functions can therefore be implemented and used for systems worldwide. Key features of this version of the 3VA molded-case circuit breaker: 1. Compact design. 2. Available as version for plant protection. 3. Depending on the size: 1-pole, 2-pole (3-pole enclosure design) and 3-pole versions. 4. Depending on size: Breaking capacity of 25 kA. 100 kA at 480 V for 3-pole breakers and 25 kA to 50 kA at 277 V for 1-pole breakers. 5. The series has a thermo-magnetic trip unit. 6. Modular and easy-to-fit internal accessories with wide range of functions. 7. Integrated accessories platform for all 3VA UL molded-case circuit breakers. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
