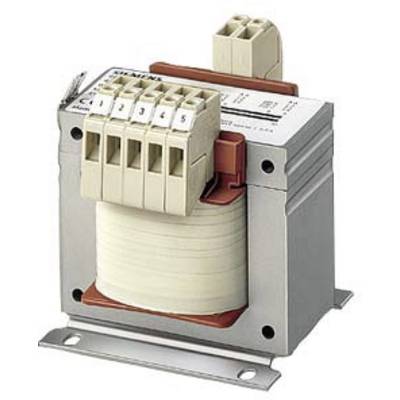

Siemens 4AM32424TT100FA1 Transformer 1 x 242 V, 230 V, 218 V 1 x 230 V 63 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 96.63 / piece)
€
Highlights & Details
TRANSFORMER SITAS PHASES:1
- 1 x 242 V, 230 V, 218 V
- 1 x 230 V
- 63 VA
Technical specifications
- Suitability: CE CRUus
- Product type
Transformer
- Output voltage
230 V
- No. of outputs
1 x
- No. of inputs
1 x
63 VA
- Input voltage
242 V
230 V
218 V
- Connection
Spring-loaded heavy duty connector
- Width
86 mm
- Height
98 mm
- Length
90 mm
- Dim
(L x W x H) 90 x 86 x 98 mm
- Output voltage (number x voltage)
1 x 230 V
- Design type
EI 84/28
- Input voltage (number x voltage)
1 x 242 V, 230 V, 218 V
- Frequency
50-60 Hz
- Content
1 pc(s)
- Mounting type
Screw fastening
DIN rail
- RoHS-compliant
Yes
- Protection class
IP00
- Type
4AM3242-4TT10-0FA1
- Max. ambient temperature
+40 °C
- Efficiency
0.85 %
86
98 mm
90 mm
Other
IP00
FALSE
63 W
FALSE
FALSE
B
FALSE
Documents & Downloads
Datasheet
Datasheet 1704834 Siemens 4AM32424TT100FA1 Transformer 1 x 242 V, 230 V, 218 V 1 x 230 V 63 VA
User & Safety Instructions
User & Safety Instructions 1704834 Siemens 4AM32424TT100FA1 Transformer 1 x 242 V, 230 V, 218 V 1 x 230 V 63 VA
Description
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):0,063 /0,19 UPRI(V):440+/-5% USEC(V):24 ISEC(A):2,625 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREWS/MOUNTING RAILS EN 61558-2-2, -2-6 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER SAFETY ISOLATING TRANSFORMER
