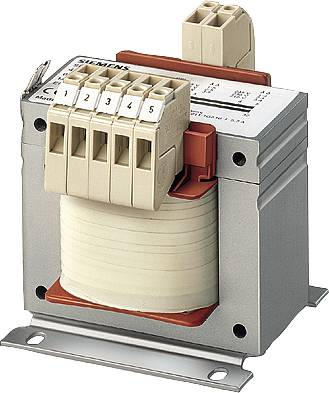

Image similar

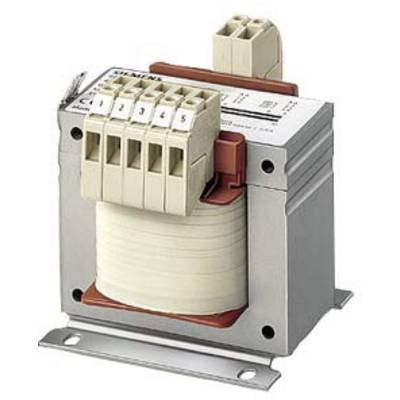

Image similar
Siemens 4AM34425CT100FA1 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 100 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 105.03 / piece)
€
Highlights & Details
TRANSFORMER SITAS PHASES:1
- 1 x 462 V, 440 V, 418 V
- 1 x 230 V
- 100 VA
Technical specifications
- Suitability: CE CRUus
- Product type
Transformer
- Output voltage
230 V
- No. of outputs
1 x
- No. of inputs
1 x
100 VA
- Input voltage
462 V
440 V
418 V
- Connection
Spring-loaded heavy duty connector
- Width
86 mm
- Height
98 mm
- Length
102 mm
- Dim
(L x W x H) 102 x 86 x 98 mm
- Output voltage (number x voltage)
1 x 230 V
- Design type
EI 84/42
- Input voltage (number x voltage)
1 x 462 V, 440 V, 418 V
- Frequency
50-60 Hz
- Content
1 pc(s)
- Mounting type
Screw fastening
DIN rail
- RoHS-compliant
Yes
- Protection class
IP00
- Type
4AM3442-5CT10-0FA1
- Max. ambient temperature
+40 °C
- Efficiency
0.86 %
86
98 mm
102 mm
FALSE
Other
IP00
FALSE
FALSE
FALSE
FALSE
FALSE
B
FALSE
7.7 %
100 VA
Documents & Downloads
Datasheet
Datasheet 1706910 Siemens 4AM34425CT100FA1 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 100 VA
Datasheet 1706910 Siemens 4AM34425CT100FA1 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 100 VA
User & Safety Instructions
User & Safety Instructions 1706910 Siemens 4AM34425CT100FA1 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 100 VA
Description
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):0,1 /0,31 UPRI(V):600-575-550-525-500- 480-460-440-415-400-240-230 USEC(V):24 ISEC(A):4,17 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREWS/MOUNTING RAILS EN 61558-2-2, -2-6 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER SAFETY ISOLATING TRANSFORMER
