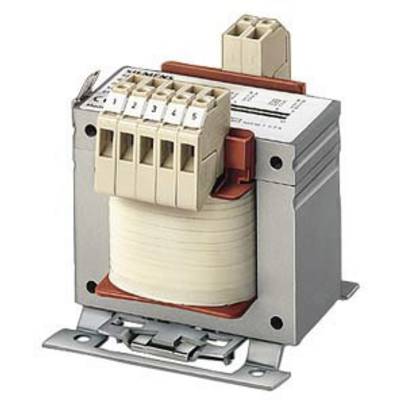

Image similar
Image similar
Siemens 4AM40424TJ100FD0 Transformer 1 x 242 V, 230 V, 218 V 1 x 110 V 200 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TRANSFORMER SITAS PHASES:1
- 1 x 242 V, 230 V, 218 V
- 1 x 110 V
- 200 VA
Technical specifications
- Suitability: CE CRUus
- Product type
Transformer
- Output voltage
110 V
- No. of outputs
1 x
- No. of inputs
1 x
200 VA
- Input voltage
242 V
230 V
218 V
- Connection
Screws
CEE 7/16 CEE plug
- Width
244 mm
- Height
245 mm
- Length
230 mm
- Dim
(L x W x H) 230 x 244 x 245 mm
- Output voltage (number x voltage)
1 x 110 V
- Design type
EI 96/58
- Input voltage (number x voltage)
1 x 242 V, 230 V, 218 V
- Frequency
50-60 Hz
- Content
1 pc(s)
- Mounting type
Screw fastening
- RoHS-compliant
Yes
- Protection class
IP54
- Type
4AM4042-4TJ10-0FD0
- Max. ambient temperature
+40 °C
- Efficiency
0.89 %
244
245 mm
230 mm
FALSE
Other
IP54
FALSE
FALSE
FALSE
FALSE
FALSE
B
FALSE
5.4 %
200 VA
Documents & Downloads
Datasheet
Datasheet 1704107 Siemens 4AM40424TJ100FD0 Transformer 1 x 242 V, 230 V, 218 V 1 x 110 V 200 VA
User & Safety Instructions
User & Safety Instructions 1704107 Siemens 4AM40424TJ100FD0 Transformer 1 x 242 V, 230 V, 218 V 1 x 110 V 200 VA
Description
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):0,25 /0,85 UPRI(V):400+/-5% USEC(V):24 ISEC(A):10,4 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:CAGE-CLAMP INSTALLATION:SCREWS/MOUNTING RAILS EN 61558-2-2, -2-6 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER SAFETY ISOLATING TRANSFORMER
