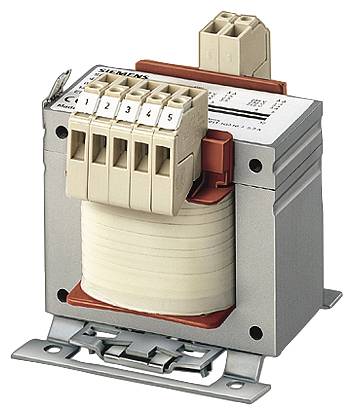

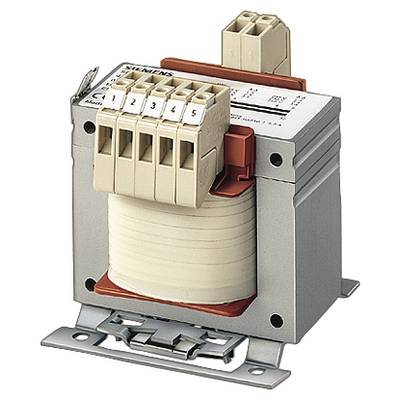

Siemens 4AM43425CT100FA0 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 315 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 197.47 / piece)
€
Highlights & Details
TRANS SITAS PH:1 PN/PN(S6)(KVA):0,315 /1
- 1 x 462 V, 440 V, 418 V
- 1 x 230 V
- 315 VA
Technical specifications
- Suitability: CE CRUus
- Product type
Transformer
- Output voltage
230 V
- No. of outputs
1 x
- No. of inputs
1 x
315 VA
- Input voltage
462 V
440 V
418 V
- Connection
Screws
CEE 7/16 CEE plug
- Width
107 mm
- Height
111 mm
- Length
120 mm
- Dim
(L x W x H) 120 x 107 x 111 mm
- Output voltage (number x voltage)
1 x 230 V
- Design type
EI 105/60
- Input voltage (number x voltage)
1 x 462 V, 440 V, 418 V
- Frequency
50-60 Hz
- Content
1 pc(s)
- Mounting type
Screw fastening
- RoHS-compliant
Yes
- Protection class
IP00
- Type
4AM4342-5CT10-0FA0
- Max. ambient temperature
+40 °C
- Efficiency
0.9 %
107
111 mm
120 mm
Other
IP00
FALSE
315 W
FALSE
FALSE
B
FALSE
5.87 %
Documents & Downloads
Datasheet
Datasheet 1704184 Siemens 4AM43425CT100FA0 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 315 VA
Datasheet 1704184 Siemens 4AM43425CT100FA0 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 315 VA
User & Safety Instructions
User & Safety Instructions 1704184 Siemens 4AM43425CT100FA0 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 315 VA
Description
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):0,315 /1,12 UPRI(V):600-575-550-525-500- 480-460-440-415-400-240-230 USEC(V):24 ISEC(A):13,1 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:MOUNTING RAILS EN 61558-2-2, -2-6 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER SAFETY ISOLATING TRANSFORMER
