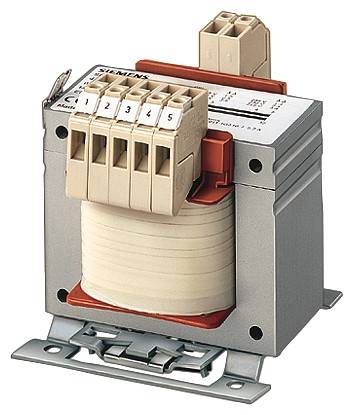

Siemens 4AM61425FT100FC0 Transformer 1 x 525 V, 500 V, 475 V 1 x 230 V 1360 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 852.94 / piece)
€
Highlights & Details
RCCB, 4-pole, type A, In: 25 A, 30 mA, Un AC: 400 V
- 1 x 525 V, 500 V, 475 V
- 1 x 230 V
- 1360 VA
Technical specifications
- Suitability: CE CRUus
- Product type
Transformer
- Output voltage
230 V
- No. of outputs
1 x
- No. of inputs
1 x
1360 VA
- Input voltage
525 V
500 V
475 V
- Connection
Screws
CEE 7/16 CEE plug
- Width
351 mm
- Height
395 mm
- Length
330 mm
- Dim
(L x W x H) 330 x 351 x 395 mm
- Output voltage (number x voltage)
1 x 230 V
- Design type
EI 174/82
- Input voltage (number x voltage)
1 x 525 V, 500 V, 475 V
- Frequency
50-60 Hz
- Content
1 pc(s)
- Mounting type
Screw fastening
- RoHS-compliant
Yes
- Protection class
IP23
- Type
4AM6142-5FT10-0FC0
- Max. ambient temperature
+40 °C
- Efficiency
0.96 %
351
395 mm
330 mm
FALSE
Other
IP23
525-525 V
500-500 V
475-475 V
FALSE
FALSE
FALSE
FALSE
FALSE
B
FALSE
230-230 V
1360 VA
Documents & Downloads
Datasheet
Datasheet 1725871 Siemens 4AM61425FT100FC0 Transformer 1 x 525 V, 500 V, 475 V 1 x 230 V 1360 VA
User & Safety Instructions
User & Safety Instructions 1725871 Siemens 4AM61425FT100FC0 Transformer 1 x 525 V, 500 V, 475 V 1 x 230 V 1360 VA
Description
Residual current operated circuit breaker, 4-pole, type A, In: 25 A, 30 mA, Un AC: 400 V The RCD is the residual current device for touch protection. The patented residual current protective devices from Siemens are an important component of the SENTRON protective devices for electrical installations, as they prevent life-threatening electrical accidents by safely disconnecting hazardous residual currents through grounding. Electrically ignited fires can be prevented as they occur. Whether the problem is direct contact with energized operating parts or indirect contact with equipment, protection is achieved primarily by rapid shutdown. The residual current operated circuit breakers are characterized primarily by: 1. Comprehensive protection from electric shock for personnel and property. 2. Whether sinusoidal residual alternating currents or smooth residual direct currents, Siemens provides the right type for all requirements and special versions 3. Be protected according to the standards: All residual current operated circuit breakers correspond to the provisions of the DIN VDE. 4. Optimized technology for your safety – only from Siemens. www.siemens.com/global/en/home/products/energy/low-voltage/components/sentron-protection-devices/residual-current-protective-devices.html. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
