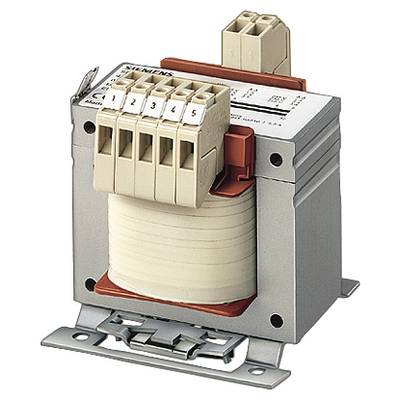

Siemens 4AM65425FJ100FA0 Transformer 1 x 525 V, 500 V, 475 V 1 x 110 V 2500 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 965.55 / piece)
€
Highlights & Details
TRANSFORMER SITAS PHASES:1
- 1 x 525 V, 500 V, 475 V
- 1 x 110 V
- 2500 VA
Technical specifications
- Suitability: CE CRUus
- Product type
Transformer
- Output voltage
110 V
- No. of outputs
1 x
- No. of inputs
1 x
2500 VA
- Input voltage
525 V
500 V
475 V
- Connection
Screws
CEE 7/16 CEE plug
- Width
194 mm
- Height
180 mm
- Length
178 mm
- Dim
(L x W x H) 178 x 194 x 180 mm
- Output voltage (number x voltage)
1 x 110 V
- Design type
EI 192/110
- Input voltage (number x voltage)
1 x 525 V, 500 V, 475 V
- Frequency
50-60 Hz
- Content
1 pc(s)
- Mounting type
Screw fastening
- RoHS-compliant
Yes
- Protection class
IP00
- Type
4AM6542-5FJ10-0FA0
- Max. ambient temperature
+40 °C
- Efficiency
0.96 %
194
180 mm
178 mm
FALSE
Other
IP00
525-525 V
500-500 V
475-475 V
FALSE
FALSE
FALSE
FALSE
FALSE
B
FALSE
1.8 %
110-110 V
2500 VA
Documents & Downloads
Datasheet
Datasheet 1706731 Siemens 4AM65425FJ100FA0 Transformer 1 x 525 V, 500 V, 475 V 1 x 110 V 2500 VA
User & Safety Instructions
User & Safety Instructions 1706731 Siemens 4AM65425FJ100FA0 Transformer 1 x 525 V, 500 V, 475 V 1 x 110 V 2500 VA
Description
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):2,5 /13,3 UPRI(V):500+/-5% USEC(V):110 ISEC(A):22,7 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
