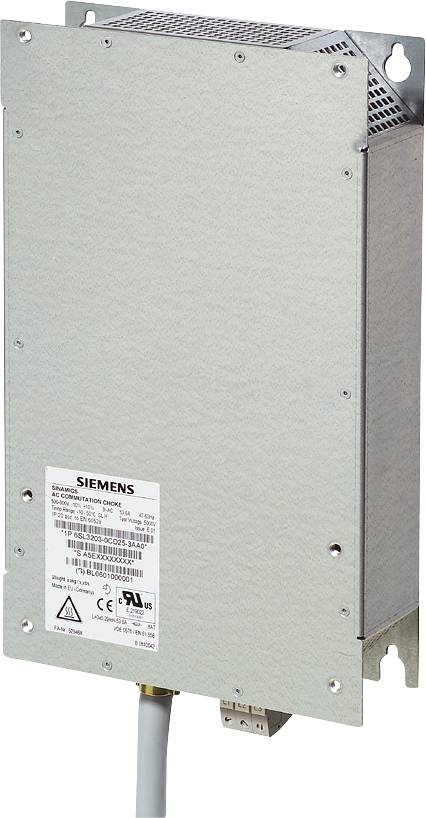

Image similar
Image similar
Siemens 6SL32030CJ286AA0 6SL3203-0CJ28-6AA0 Line choke 95 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Line choke
Nominal voltage
480 V
Nominal current
95 A
Length
94 mm
Width
275 mm
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 575.63 / piece)
€
Technical specifications
- Protection class IP: IP20/UL opentype
- Phase number/of the input voltage: 3
- Product type
Line choke
- Nominal voltage
480 V
- Nominal current
95 A
- Length
94 mm
- Width
275 mm
- Height
577 mm
- Min. cross section
35 mm²
- Content
1 pc(s)
- Dim
(L x W x H) 94 x 275 x 577 mm
- RoHS-compliant
Yes
- Type
6SL3203-0CJ28-6AA0
Reactance coil
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1734801 Siemens 6SL32030CJ286AA0 6SL3203-0CJ28-6AA0 Line choke 95 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1734801 Siemens 6SL32030CJ286AA0 6SL3203-0CJ28-6AA0 Line choke 95 A 1 pc(s)
Description
SINAMICS reactor for Power Module FSD 30 kW Type rating based on I_N base possible Electrical reactor SINAMICS line reactor for the PM340 Power Module of the S110 servo drive and the PM240 Power Module of the SINAMICS G120 modular frequency converter. Line reactors smooth the current drawn by the converter and thus reduce the harmonic content in the line current. Reducing the current harmonics also reduces the power components in the rectifier and thermally offloads the DC-link capacitors and reduces the line harmonic distortions. Using a line reactor increases the life of the converter. The line reactors are available in a three-phase voltage range 380 V to 480 V and for frame sizes FSA to FSD. The line reactors are base components. The cables to the Power Module are already connected to the line reactor. SINAMICS – the integrated drive family for every field of application.
