Siemens 7KM4212-0BA00-3AA0 Digital rack-mount meter Max. 3 x 690/400 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,071.43 / piece)
€
Only 3 Piece(s) available
Highlights & Details

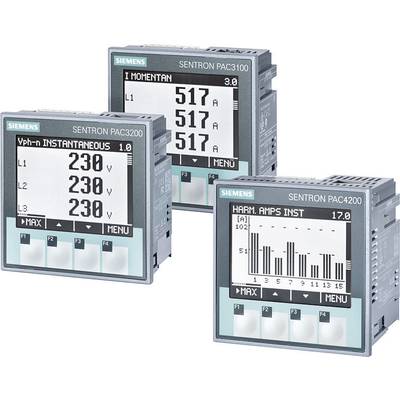

Multifunctional measuring apparatus SENTRON PAC4200
- 2 tariffs
- For monitoring system status and power quality
Technical specifications
- Exact class of actual power: Class 0.2 S
- Current transformer connections: /1 or /5
- Type
7KM4212-0BA00-3AA0
IP65 (front)
IP20
- Dim
(L x W x H) 82 x 96 x 96 mm
- Weight
450 g
- Factory colour
Black
White
- Depth
56 mm
- Height
96 mm
- Length
82 mm
- Width
96 mm
- Display technology
LCD
- Interfaces
1x RS 485
1x Ethernet
- Display lighting
white
- Reading category
CAT I
CAT III
- Recess depth
77 mm
- Display (counts)
1
- Operating voltage
30 V
- Connections
Screw terminals
- Display (details)
Point matrix, 130 x 100 pixels
- Assembly dimensions
92 mm x 92 mm
- Power supply (details)
95 - 240 V/AC, 110 - 340 A V DC
- Reading range
Max. 3 x 690/400 V AC
- Reading category
CAT III
- Max. operating voltage
30 V
96
96 mm
82 mm
2
2
0
0
TRUE
TRUE
0
TRUE
TRUE
FALSE
TRUE
TRUE
TRUE
TRUE
TRUE
400-400 V
690-690 V
110-340 V
3
3
- Product type
Digital rack-mount meter
Documents & Downloads
Datasheet
Datasheet 125232 Siemens 7KM4212-0BA00-3AA0 Digital rack-mount meter Max. 3 x 690/400 V AC
User & Safety Instructions
User & Safety Instructions 125232 Siemens 7KM4212-0BA00-3AA0 Digital rack-mount meter Max. 3 x 690/400 V AC
Description
The device measures the power values of electronic feeders or individual consumers in the low voltage-power distribution. It can be used for single and multiphase networks (TN, TT, IT) and provides important data for assessment of the system status and power quality. Can be in incorporated into next level automation and power management systems.
Features
- Voltage, current, neutral current, apparent, active and idle power, power factor, fundamental component - power factor, frequency, min / max value with date and time, active and idle power, 2 tariffs, daily power values for 365 days, Detection of power consumption by a partial or production process, average power value MIN / MAX, recording of load profile, power meter for S0-Signal, Hour meter, Moving average U / I / S / P / Q / LF, distortion factor voltage / current, strength of distortion current, phase angle, Non-symmetrical voltage / current, harmonics, Monitoring of 12 limits, Boolean logic, event recorder, battery backed Min / Max values, Ethernet, RS485
