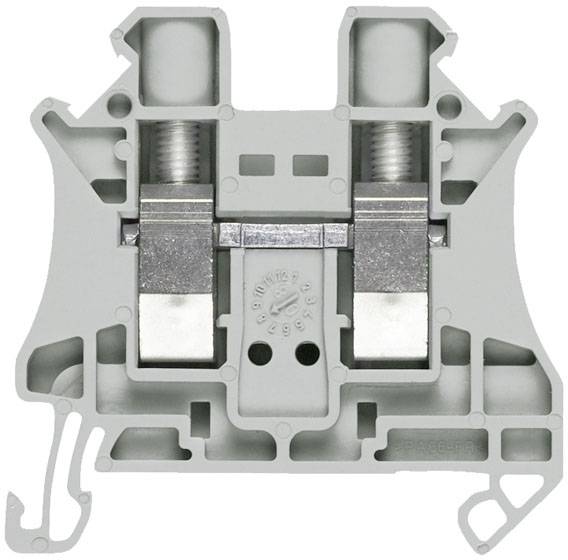

Siemens 8WH10000AF00 Continuity Screws Beige 50 pc(s)
EAN:
Part number:
Item no:
Connection
Screws
Cross section (inflexible) (min.)
0.14 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Content
50 pc(s)
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 68.90 / piece)
€
Only 2 Set(s) available
Technical specifications
- Connectable conductor cross-section / fine-wired / with wire-end processing / maximum: 2.5 mm²
- connectable conductor cross-section / fine-wired / with wire-end processing / minimum: 0.14 mm²
- Number of terminal points / per terminal level: 2
- tightening torque / with screw connection / maximum: 0.8 Nm
- Tightening torque / with screw connection / minimum: 0.6 Nm
- Mounting type: DIN rail 35 mm
- flammability class in accordance with UL 94: V0
- Height / with low-end mounting type: 47.5 mm
- terminal pitch: 5.2 mm
- material / of the insulating body: Thermoplastic
- position / of the terminal clamp: Side
- product component / required / end plate: Yes
- ambient temperature / during operation / maximum: 55 °C
- ambient temperature / during operation / minimum: -25 °C.
- Connection
Screws
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
1
- Factory colour
Beige
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
1000 V
- Stripping length (max.)
9 mm
- Manufacturer part #
8WH10000AF00
- Content
50 pc(s)
- Type
8WH1000-0AF00
- Length
47.7 mm
- RoHS-compliant
Yes
- Weight
8 g
DIN rail (top hat rail) 35 mm
Grey
48 mm
46.9 mm
1000 V
47.7 m
V0
5.2 mm
47.5 mm
TRUE
Screw connection
Screw connection
1
2
FALSE
Other
24 A
FALSE
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 2263832 Siemens 8WH10000AF00 Continuity Screws Beige 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2263832 Siemens 8WH10000AF00 Continuity Screws Beige 50 pc(s)
Description
Through-type terminal with screw connection Terminal size 2.5mm2 Terminal width 5.2mm Color gray Terminal block connection technology for various industrial applications and modern building installation from Siemens. No matter whether you choose the screw, tension spring, push-in or quick connection: All connection methods can be combined freely with one another. The labeling and testing accessories are standardized and can be used across the board. Siemens terminal blocks can be used to implement many applications in industrial, industrial and residential buildings. Thus, you have the suitable connection technology for each connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and wires. 3. Implementation of a variety of applications. 4. Convenient and easy installation and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard touch protection. 7. Optimum technology for your safety - only from Siemens.
