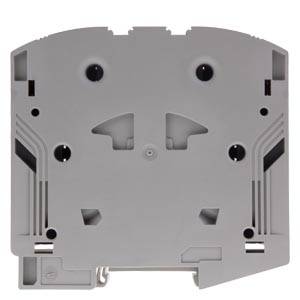

Siemens 8WH60000AS00 Hybrid feedthrough terminal Plug & Clip Grey 3 pc(s)
EAN:
Part number:
Item no:
Connection
Plug & Clip
Cross section (inflexible) (min.)
50 mm²
Cross section (inflexible) (max.)
150 mm²
Nominal current - rounded value
309 A
Content
3 pc(s)
Datasheet (PDF)
Number (Package size 3 pc(s))
Total (€ 54.62 / piece)
€
Technical specifications
- Type of mounting: top-hat rail 35 mm
- Material of the insulating body: thermoplastic
- Ambient temperature: -25 °C to +55 °C
- Number of clamping levels: 1
- Connection
Plug & Clip
- Cross section (inflexible) (min.)
50 mm²
- Cross section (inflexible) (max.)
150 mm²
- Factory colour
Grey
- Nominal current
309 A
- Nominal current - rounded value
309 A
- Nominal voltage
1500 V
- Stripping length (max.)
40 mm
- Manufacturer part #
8WH60000AS00
- Content
3 pc(s)
- Type
8WH6000-0AS00
- Dim
(L x W x H) 101 x 31 x 116.5 mm
- Width
31 mm
- Height
116.5 mm
- Length
101 mm
- RoHS-compliant
Yes
- Weight
107.5 g
DIN rail (top hat rail) 35 mm
Grey
31
116.5 mm
116.4 mm
1500 V
101 m
V0
31 mm
116.5 mm
FALSE
Push-in clamp connection
Push-in clamp connection
1
2
FALSE
Other
309 A
FALSE
- Product type
Hybrid feedthrough terminal
Documents & Downloads
Datasheet
Datasheet 1739790 Siemens 8WH60000AS00 Hybrid feedthrough terminal Plug & Clip Grey 3 pc(s)
User & Safety Instructions
User & Safety Instructions 1739790 Siemens 8WH60000AS00 Hybrid feedthrough terminal Plug & Clip Grey 3 pc(s)
Description
Load disconnector 3LD3, Iu 63 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 22.0 kW floor mounting Basic switch with door coupling Central hole mounting 22.5mm Toggle drive black 48x48 mm with auxiliary switch 1OE + 1S The 3LD main and emergency off switch for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD3 disconnector units. After disconnects from the grid, they ensure safe activation of all of the electrical equipment, thus switch, for example, to three-phase motors, but also air-conditioning and ventilation systems. 3LD3 are also ideal for control panels, in particular for applications in small machines (for example saws, compressors, pumps, concrete mixers, drills, mills, and woodworking machinery) Key features of the Siemens 3LD main and emergency off switches: 1. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4-pole 2. Versatile thanks to local approvals. 3. One mechanical size for five electrical sizes. 4. Can be used for DC applications. 5. Types of mounting: Front mounting, mounting plate, standard mounting rail. 6. Optimized disconnect from 16 A to 63 A with lockable rotary operating mechanism. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
