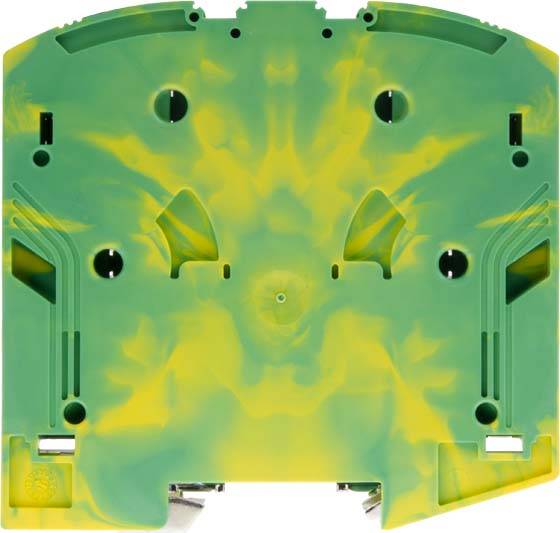

Image similar

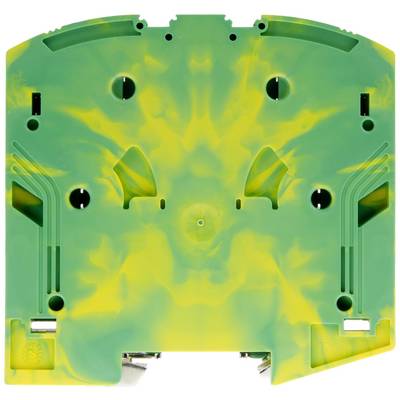

Image similar

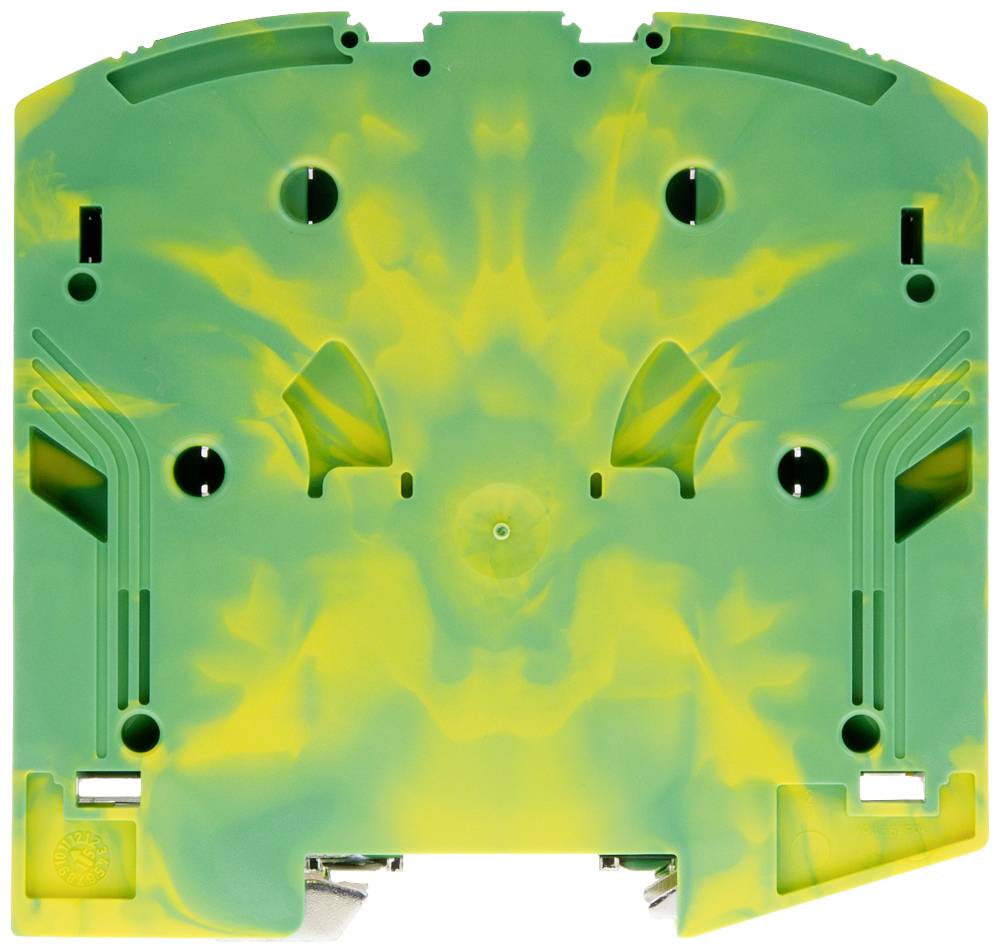

Siemens 8WH60000CN07 Terminal 20 mm Jack connector Green, Yellow 10 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Jack connector
Cross section (flexible) (max.)
50 mm²
Cross section (inflexible) (max.)
50 mm²
Content
10 pc(s)
Datasheet (PDF)
Sales and shipping:
Number (Package size 10 pc(s))
Total (€ 46.13 / piece)
€
Technical specifications
- Ambient temperature: -25 °C to +55 °C
- Depth: 101 mm
- Material of the insulating body: thermoplastic
- Type of mounting: top-hat rail 35 mm with 15 mm high
- Number of clamping levels: 1
- Product type
Terminal
- Connection
Jack connector
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
50 mm²
- Cross section (inflexible) (min.)
10 mm²
- Cross section (inflexible) (max.)
50 mm²
- Clamp width
20 mm
- Factory colour
Green
Yellow
- Stripping length (max.)
30 mm
- Manufacturer part #
8WH60000CN07
- Content
10 pc(s)
- Type
8WH6000-0CN07
- Dim
(W x H) 20 mm x 105 mm
- Width
20 mm
- Height
105 mm
- RoHS-compliant
Yes
- Weight
157 g
DIN rail (top hat rail) 35 mm
Other
20
101 mm
96.65 mm
V0
20 mm
FALSE
Other
Push-in clamp connection
TRUE
1
2
Other
Documents & Downloads
Datasheet
Datasheet 1739793 Siemens 8WH60000CN07 Terminal 20 mm Jack connector Green, Yellow 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1739793 Siemens 8WH60000CN07 Terminal 20 mm Jack connector Green, Yellow 10 pc(s)
Description
Load disconnector 3LD3, Iu 25 A Main switch 3-pole + N Rated operating capacity at AC-23 A at 400V 9.0kW Installation in distribution boards, Basic switch with Toggle drive black The 3LD main and emergency off switch for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD3 disconnector units. After disconnects from the grid, they ensure safe activation of all of the electrical equipment, thus switch, for example, to three-phase motors, but also air-conditioning and ventilation systems. 3LD3 are also ideal for control panels, in particular for applications in small machines (for example saws, compressors, pumps, concrete mixers, drills, mills, and woodworking machinery) Key features of the Siemens 3LD main and emergency off switches: 1. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4-pole 2. Versatile thanks to local approvals. 3. One mechanical size for five electrical sizes. 4. Can be used for DC applications. 5. Types of mounting: Front mounting, mounting plate, standard mounting rail. 6. Optimized disconnect from 16 A to 63 A with lockable rotary operating mechanism. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
