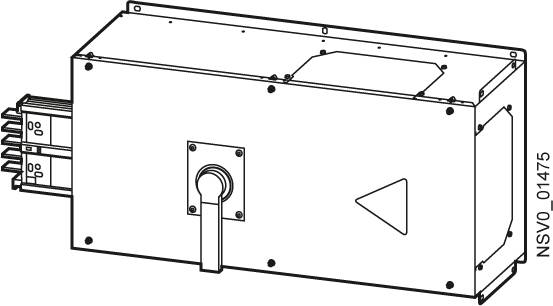

Siemens BVP:611343 PLUG-IN IN-LINE SWITCH DISCONNECTOR Feeder box Copper Light grey 5-pin 65.7 mm² 250 A 690 V AC 1 pc(s
EAN:
Part number:
Item no:
Product type
Feeder box
Nominal voltage
690 V AC
Compatible with (details)
Rail distribution system BD2
Operating voltage
690 V AC
Factory colour
Light grey
Datasheet (PDF)
92 Piece(s)
Sales and shipping:
Number
Total (€ 1,827.73 / piece)
€
Technical specifications
- Protection class: IP54
- Mounting type: ceiling/wall
- Insulation voltage 690 V/AC
- Operating frequency: 50/60 Hz
- Surge current strength: 32 kA
- Nominal voltage
690 V AC
- Product type
Feeder box
- Compatible with (details)
Rail distribution system BD2
- Operating voltage
690 V AC
- Factory colour
Light grey
- Cross section
65.7 mm²
- Number of pins
5
- Dim
(L x W x H) 1055 x 440 x 278 mm
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Content
1 pc(s)
- Material
Copper
- Width
440 mm
- Height
278 mm
- Length
1055 mm
Documents & Downloads
Datasheet
Datasheet 1738094 Siemens BVP:611343 PLUG-IN IN-LINE SWITCH DISCONNECTOR Feeder box Copper Light grey 5-pin 65.7 mm² 250 A 690 V AC 1 pc(s
User & Safety Instructions
User & Safety Instructions 1738094 Siemens BVP:611343 PLUG-IN IN-LINE SWITCH DISCONNECTOR Feeder box Copper Light grey 5-pin 65.7 mm² 250 A 690 V AC 1 pc(s
Description
Switch disconnector with fuses In-line design, pluggable NH3 630 A, 3-pole High switching capacity H manual operation without auxiliary switch without current transformer without ammeter
