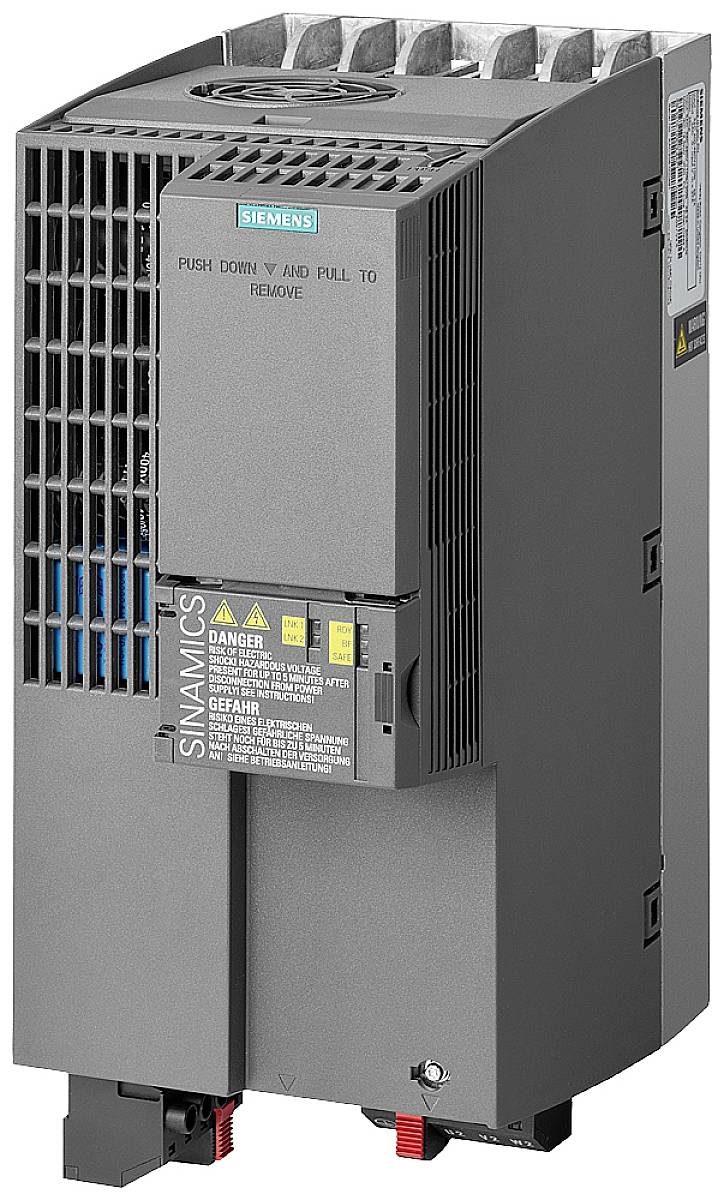

Image similar

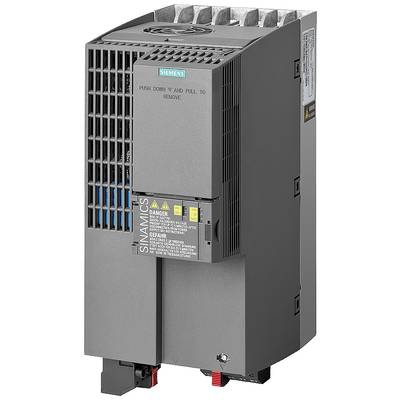

Image similar
Siemens Frequency inverter 6SL3210-1KE23-2UP1 11.0 kW 380 V, 480 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Relative symmetrical power frequency tolerance: 5
- Relative symmetrical power voltage tolerance: -20
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
11.0 kW
- Max. frequency
550 Hz
- Min. frequency
0 Hz
- Frequency range
0 Hz - 550 Hz
- Nominal current
32 A
- Depth
203 mm
- Height
295 mm
- Width
140 mm
IP20
- Type
6SL3210-1KE23-2UP1
- Dim
(W x H x D) 140 x 295 x 203 mm
- Manufacturer part #
6SL32101KE232UP1
- Weight
5.2 kg
Documents & Downloads
Datasheet
Datasheet 1736777 Siemens Frequency inverter 6SL3210-1KE23-2UP1 11.0 kW 380 V, 480 V
User & Safety Instructions
User & Safety Instructions 1736777 Siemens Frequency inverter 6SL3210-1KE23-2UP1 11.0 kW 380 V, 480 V
Description
SINAMICS G120C RATED POWER 15,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD) EXTERNAL 24V
