Buy Hirschmann Test & Measurement MLS WS 25/2,5 rt Safety test lead Banana jack 4 mm Banana jack 4 mm 25.00 cm Red 1 pc(s)

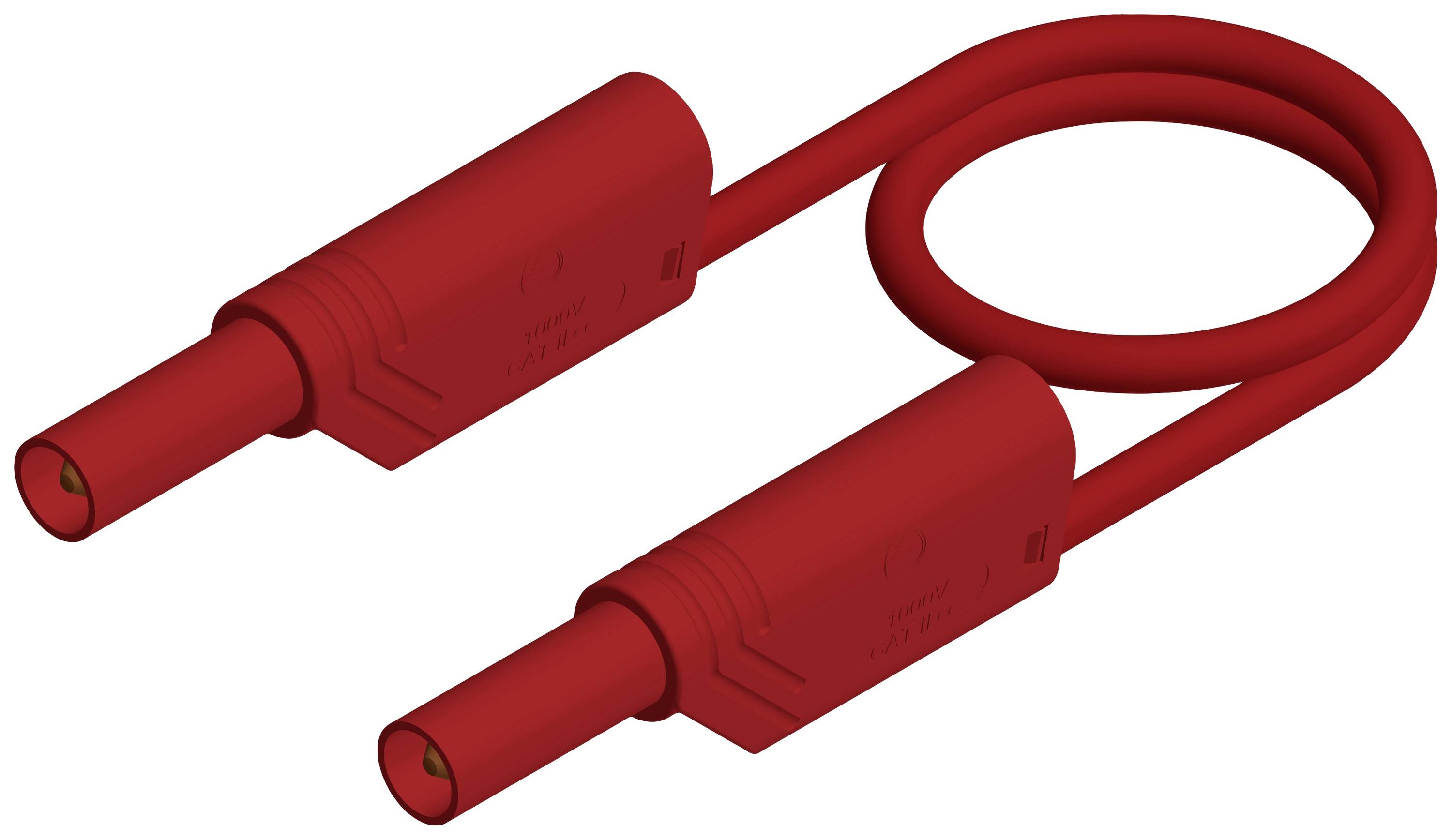

Red banana cable with two plugs, used for electrical connections in electronic devices and test equipment.

Datasheet (PDF)

212 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.87 / piece)

€

Report legal concerns

Highlights & Details

4 mm safety test lead, 2x stackable plugs, 2,5 mm², 25 cm

safety test lead 1000 V / CAT II, stackable plugs Ø 4 mm, 32 A, 25 cm

Technical specifications

Product type: Safety test lead

Type A: Banana jack 4 mm

Type B: Banana jack 4 mm

Cable length: 25.00 cm

Factory colour: Red

Plug features: Scoop-proof
Nestable

Material: PVC

Cable cross section: 2.5 mm²

Nominal voltage: 1000 V

Diameter/connectortype: 4 mm safety system

Temperature range: -15 °C to +70 °C °C

Nominal current: 32 A

Nominal current - rounded value: 32 A

Contact material: Ni

Reading category: CAT II 1000 V
CAT III 600 V

Width: 10.5 mm

Height: 18.5 mm

Type: MLS WS 25/2,5 rt

Nominal current (details): 32 A

Reading category: CAT II

Documents & Downloads

Datasheet

Datasheet 679049 Hirschmann Test & Measurement MLS WS 25/2,5 rt Safety test lead Banana jack 4 mm Banana jack 4 mm 25.00 cm Red 1 pc(s)

User & Safety Instructions

User & Safety Instructions 679049 Hirschmann Test & Measurement MLS WS 25/2,5 rt Safety test lead Banana jack 4 mm Banana jack 4 mm 25.00 cm Red 1 pc(s)

Conformity certificate

Conformity certificate 679049 Hirschmann Test & Measurement MLS WS 25/2,5 rt Safety test lead Banana jack 4 mm Banana jack 4 mm 25.00 cm Red 1 pc(s)

Description

Safety measuring lead to IEC 61010 standard, at either end 4 mm diameter safety connector with onward connection capability (4 mm socket). Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Built in color indicator for easy indentification of insulation damages.
