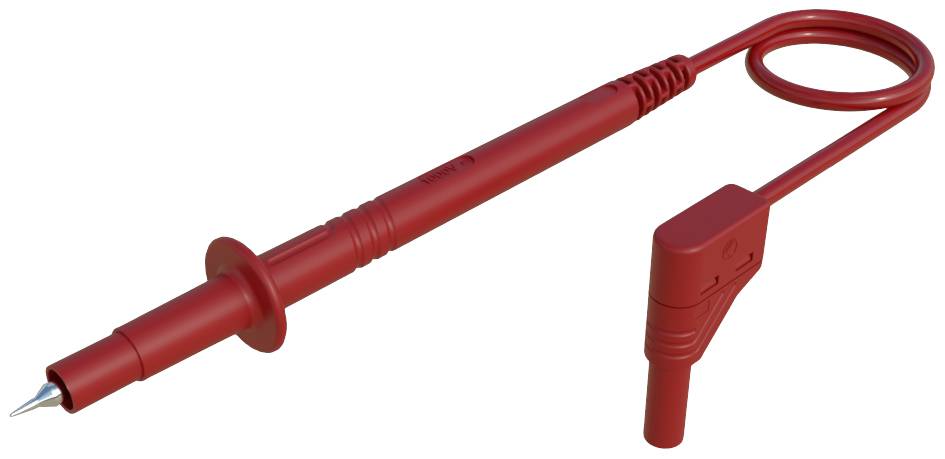

Hirschmann Test & Measurement PL 2600 SIL S WS Safety test lead Banana jack 4 mm Test probe 1.00 m Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
28 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 21.84
-54 %
€
Highlights & Details
4 mm safety test lead, silicone, test probe/angled plug, 100 cm
- silicone safety test lead 1000 V/CAT II, test probe + angled plug Ø 4 mm, 100 cm
Technical specifications
- Product type
Safety test lead
- Type A
Banana jack 4 mm
- Type B
Test probe
- Cable length
1.00 m
- Factory colour
Red
- Plug features
Scoop-proof
- Material
Silicone
- Cable cross section
1 mm²
- Nominal voltage
1000 V
- Diameter/connectortype
4 mm safety system
- Temperature range
-15 °C to +70 °C °C
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Contact material
Ni
- Reading category
CAT II 1000 V
CAT III 600 V
- Width
20 mm
- Height
20 mm
- Type
PL 2600 SIL S WS
- Nominal current (details)
16 A
- Reading category
CAT II
Documents & Downloads
Datasheet
Datasheet 679244 Hirschmann Test & Measurement PL 2600 SIL S WS Safety test lead Banana jack 4 mm Test probe 1.00 m Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 679244 Hirschmann Test & Measurement PL 2600 SIL S WS Safety test lead Banana jack 4 mm Test probe 1.00 m Red 1 pc(s)
Information
Information 679244 Hirschmann Test & Measurement PL 2600 SIL S WS Safety test lead Banana jack 4 mm Test probe 1.00 m Red 1 pc(s)
Description
Safety silicone test lead, resistant against contact with soldering iron, with dual function safety test probe. Tip for penetration of insulation and oxide layers and 4 mm diameter pin for insertion into sockets. 4 mm diameter safety connector with right-angled outlet. Incl.
Tip protection
Tip protection
Features
- Dual function safety test probe for penetration of insulation and oxide layers and insertion into sockets. CE certified.
Scope of delivery
- 1 x safety silicone measuring lead incl. tip protection
