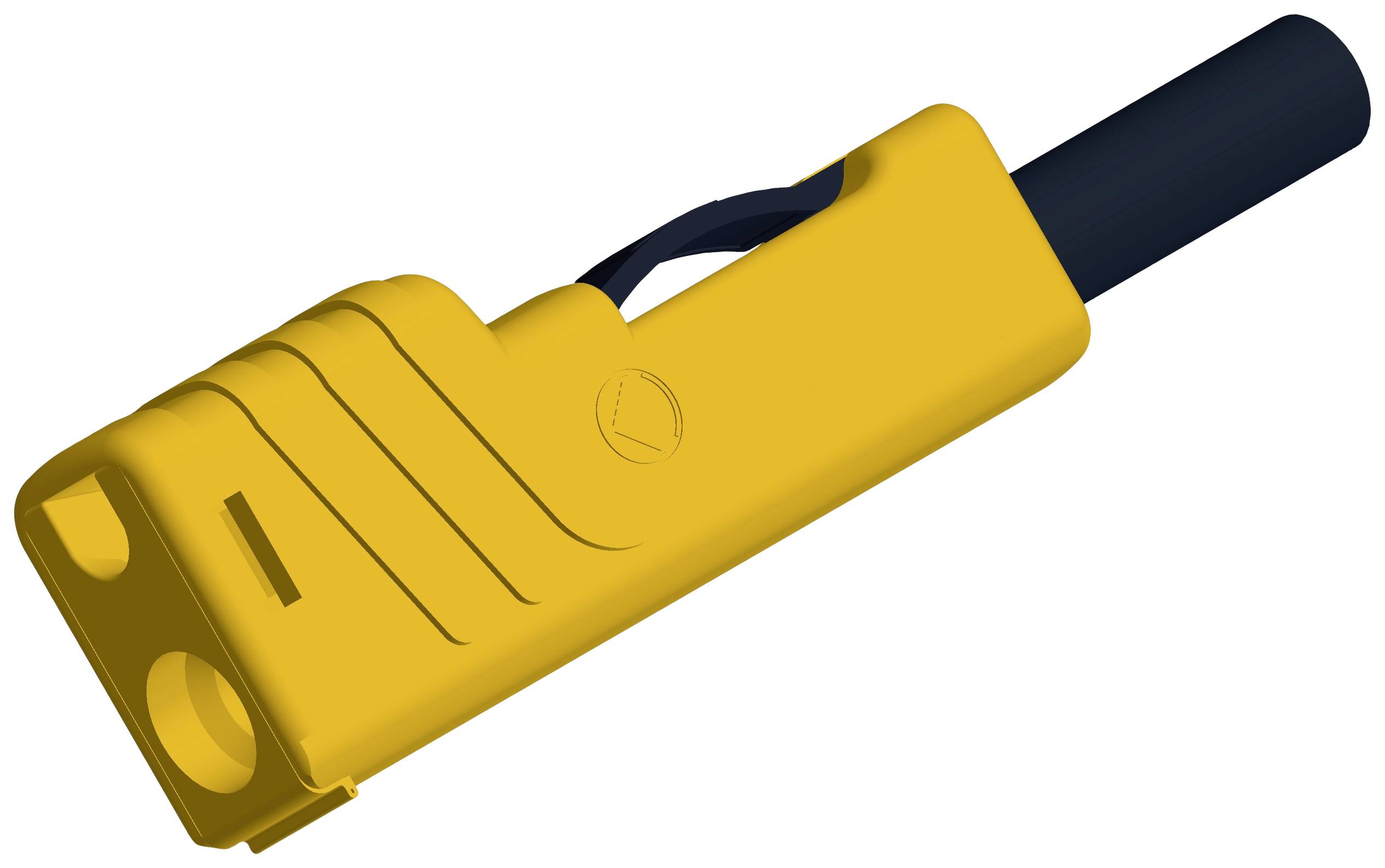

Hirschmann Test & Measurement SLS 200 Jack plug Plug, straight Pin diameter: 4 mm Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Jack plug
Connector type
Plug, straight
Pin Ø
4 mm
Connection
Screws
Nominal current
30 A
Datasheet (PDF)
144 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€
Highlights & Details
Hirschmann Test & Measurement SLS 200 Jack plug Plug, straight Pin diameter: 4 mm Yellow 1 pc(s)
- 4 mm
Technical specifications
- Product type
Jack plug
- Connector type
Plug, straight
- Pin Ø
4 mm
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Cross section (flexible) (max.)
2.5 mm²
- Connection
Screws
- Factory colour
Yellow
- Insulation type
Insulated
- Manufacturer part #
932153103
- Type
SLS 200
- Content
1 pc(s)
- Insulation material
PP
- Contact material
Nickel plated
- Nominal voltage
60 V DC
- RoHS-compliant
Yes
- Temperature range
-25 - +80 °C
- Compatible with (details)
Wires up to 2.5 mm² cross-section.
- Permanent current
30 A
- Nominal voltage (details)
60 V DC
- Nominal current (details)
30 A
- Cross section
2.5 mm²
- Connection
Screws
Documents & Downloads
Datasheet
Datasheet 734766 Hirschmann Test & Measurement SLS 200 Jack plug Plug, straight Pin diameter: 4 mm Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 734766 Hirschmann Test & Measurement SLS 200 Jack plug Plug, straight Pin diameter: 4 mm Yellow 1 pc(s)
Description
Banana plug touch-proof with further plugging option, insulated through locking and spring-mounted insulation sleeve, which is released only through pressure on the lateral locking springs.
