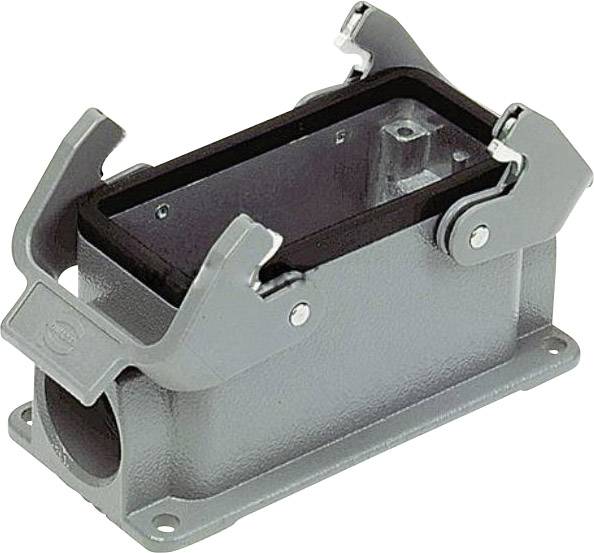

Grey metal enclosure with an open lid, two toggle latches for locking. Used for electrical or industrial connections.

Image similar

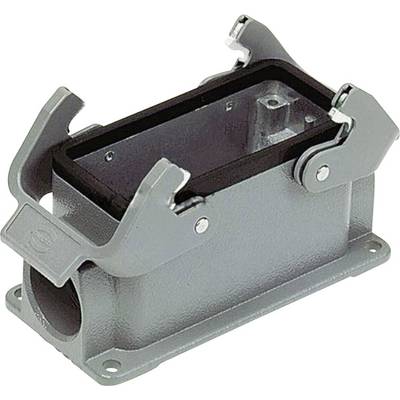

Grey metal enclosure with an open lid, two toggle latches for locking. Used for electrical or industrial connections.

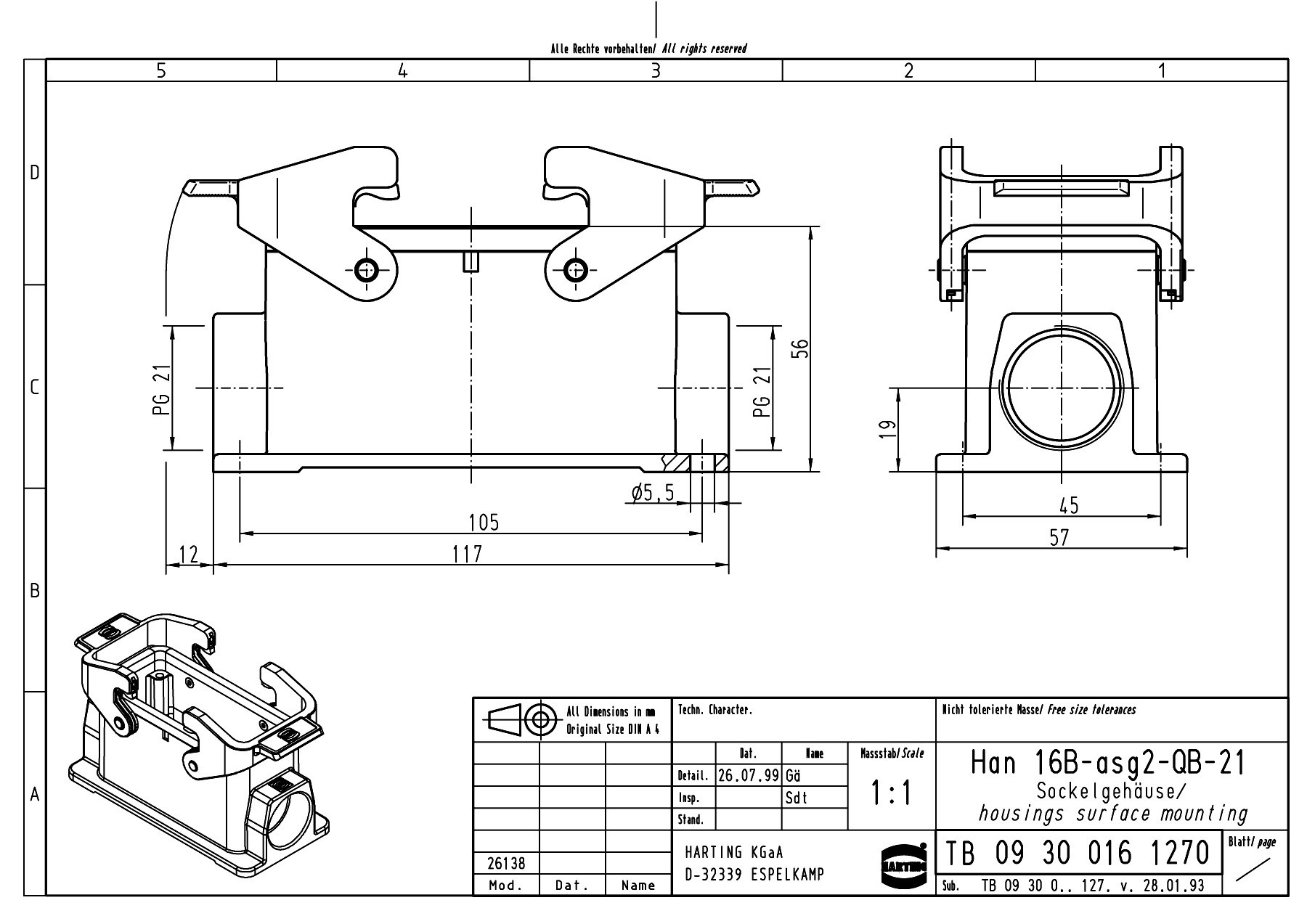

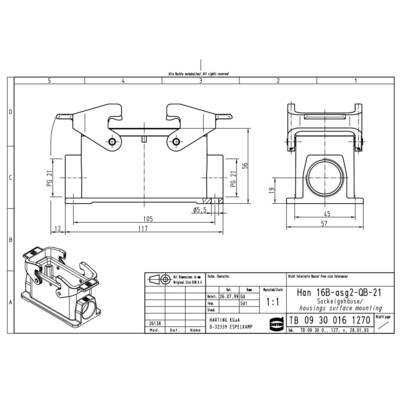

Technical drawing of a base housing with dimensions and three-dimensional view. Manufacturer: HARTING KGaA, Scale 1:1.

1/2

Image similar

Product type

Socket enclosure

Series

Han® 16B

Thread size

2 x PG21

Type

Han® 16B-asg2-QB-21

Manufacturer part #

09300161270

Datasheet (PDF)

English

HARTING

1 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 43.69 / piece)

€

Only 1 Piece(s) available

Report legal concerns

Technical specifications

Type: Han® 16B-asg2-QB-21

Product type: Socket enclosure

Series: Han® 16B

Manufacturer part #: 09300161270

Features: 2x cable exit (lateral)
low type
2x transverse brace lock

Factory colour: Grey

Thread size: 2 x PG21

Type: 2 side cable output, low design, 2-transverse stirrups lock

Size: 16 B

Thread type: 2 x PG21

Content: 1 pc(s)

Cable input: PG21

Material (details): Metal

: IP65

Max. temperature: +125 °C

Min. temperature: -40 °C

Temperature range: -40 - +125 °C

Documents & Downloads

Datasheet

English

Datasheet 741458 Socket enclosure Han® 16B-asg2-QB-21 09300161270 HARTING 1 pc(s)

User & Safety Instructions

User & Safety Instructions 741458 Socket enclosure Han® 16B-asg2-QB-21 09300161270 HARTING 1 pc(s)

Description

Socket housing for Series 16 B for industrial applications. Available in metal (aluminum die-cast).
