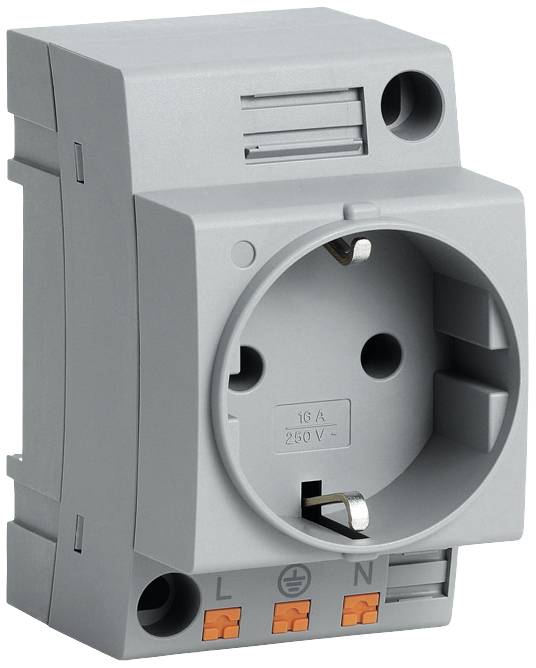

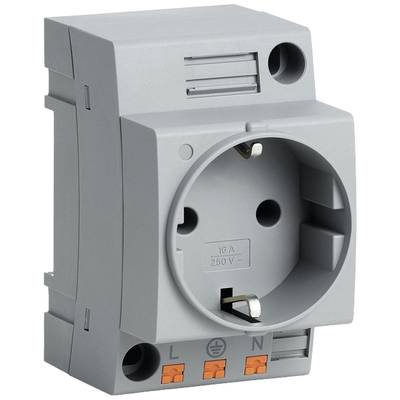

Lütze Plug Socket ST-3/S Push In GR Grey 5 pc(s)
EAN:
Part number:
Item no:
Product type
Socket
Type
Plug Socket ST-3/S Push In GR
Factory colour
Grey
Material
PA
Length
60 mm
Datasheet (PDF)
Sales and shipping:
Total (€ 55.45 / piece)
€
Technical specifications
- Temperature range --20°C to +60°C.
- Voltage: 250 V/AC
- Nominal current: 16 A
- Number of poles: 2
- Rated insulation voltage 2000 V
- Rated surge voltage strength 4000 V
- Pollution level PD3
- Contact material: CuZn37
- Conductor cross-section rigid: 0.2 mm² - 4 mm²
- Conductor cross-section flexible: 0.2 mm² - 2.5 mm²
- Conductor cross-section AWG 24 - 12 AWG
- Status indicator: No.
- Product type
Socket
- Type
Plug Socket ST-3/S Push In GR
- Factory colour
Grey
- Material
PA
- Length
60 mm
- Width
45 mm
- Height
75 mm
- Dim
(L x W x H) 60 x 45 x 75 mm
- RoHS-compliant
- Connection type
Spring-loaded push-in connector
- Core cross section (max.)
4 mm²
- Core cross section (min.)
0.2 mm²
Documents & Downloads
Datasheet
Datasheet 3124512 Lütze Plug Socket ST-3/S Push In GR Grey 5 pc(s)
User & Safety Instructions
User & Safety Instructions 3124512 Lütze Plug Socket ST-3/S Push In GR Grey 5 pc(s)
Description
The developed snap-on socket with fully protected wire connections and integrated snap closure permits an easy and fast mounting in the switch cabinet.
