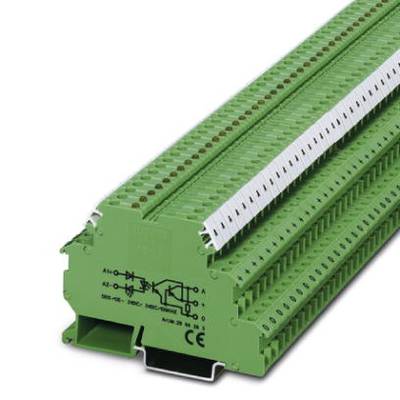

Solid-state relay terminal block DEK-OE- 5DC/ 24DC/100KHZ 2964270 Phoenix Contact
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 47.48 / piece)
€
Highlights & Details
Solid-state relay terminal block DEK-OE- 5DC/ 24DC/100KHZ
- Industrial packaging, pack of 10
Technical specifications
- Type
DEK-OE- 5DC/ 24DC/100KHZ
- Connection
Screws
- Control voltage (min.)
5 V DC
- Control voltage (max.)
5 V DC
- Control voltage range
5 - 5 V DC
- Switching voltage (min.)
4 V DC
- Switching voltage (max.)
30 V DC
- Current load (max.)
50 mA
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Width
6.2 mm
- Height
80 mm
- Depth
56 mm
- Industrial packaging
Yes
- Content
10 pc(s)
- Product type
SSR
Documents & Downloads
Datasheet
Datasheet 707555 Solid-state relay terminal block DEK-OE- 5DC/ 24DC/100KHZ 2964270 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 707555 Solid-state relay terminal block DEK-OE- 5DC/ 24DC/100KHZ 2964270 Phoenix Contact
Description
Input solid-state relay, transmission frequency: 100 kHz, with LED and protective circuit in input and output circuits, input: 5 V DC, output: 4 - 30 V DC/50 mA
