Buy Sonel MIC-30 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V 100 GΩ

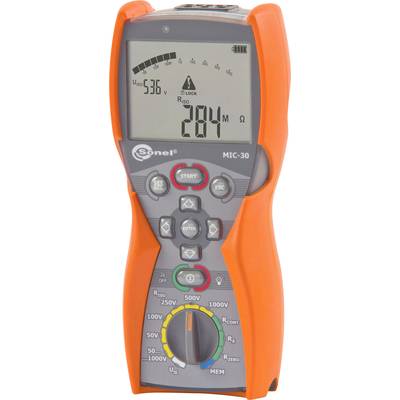

Measuring device with a digital display, showing 284 ohms. Control buttons and measurement range selection visible. Orange and grey colour scheme.

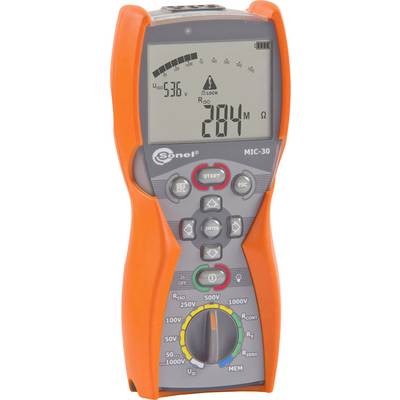

A digital multimeter displays 5.36 volts and 284 ohms on the display. It has orange sides with a grey central section and several buttons.

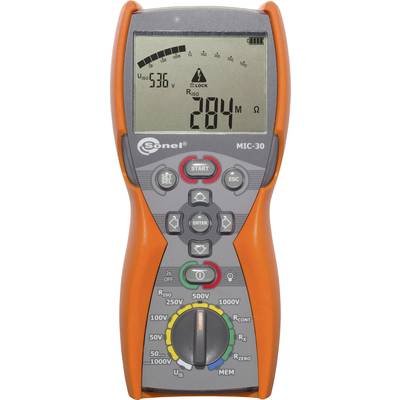

Digital multimeter with an orange casing and black-grey display showing a resistance measurement of 284 ohms.

1/3

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 679.83 / piece)

€

Report legal concerns

Highlights & Details

Insulation tester MIC-30

Test voltage 50 V, 100 V, 250 V, 500 V, 1 kV
Protective earth resistance measurement ± 200 mA
Capacitance testing
AC/DC voltage measurement up to 600 V
3 test times for the determination of the absorption coefficient
Leakage current measurement
990 memory slots
Bluetooth

Technical specifications

Range - insulation resistance 0.0...999 kΩ at 50V test voltage: Resolution: 0.1 kΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 1.000... 9.999 MΩ at 50 V test voltage: Resolution: 0.001 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 10.0.. 99.99 MΩ at 50 V test voltage: Resolution: 0.01 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 100.0 250.0 MΩ at 50 V test voltage...: Resolution: 0.1 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 0.0... 999.9 kΩ at 100 V test voltage: Resolution: 0, 1 kΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 1.000... 9.999 MΩ at 100 V test voltage: Resolution: 0.001 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 10.00.. 99.99 MΩ at 100 V test voltage: Resolution: 0.01 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 100.0... 500,0 MΩ at 100 V test voltage: Resolution: 0.1 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 0.0... 999.9 kΩ at 250 V test voltage: Resolution: 0.1 kΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 1.000... 9.999 MΩ at 250 V test voltage: Resolution: 0.001 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 10.00.. 99.99 MΩ at 250 V test voltage: Resolution: 0.01 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 100.0... 999,0 MΩ at 250 V test voltage: Resolution: 0.1 MΩ, accuracy: ± (3% v.M. such + 8 digits); Range Insulation Resistance 1...2 GΩ at 250 V test voltage: Resolution: 0.001 GΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 0.0... 999.9 kΩ at 500 V test voltage: Resolution: 0.1 kΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 1.000... 9.999 MΩ at 500 V test voltage: Resolution: 0.001 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 10.00.. 99.99 MΩ at 500 V test voltage: Resolution: 0.01 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 100.0... 999,0 MΩ at 500 V test voltage: Resolution: 0.1 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 1.000... 5.000 GΩ at 500 V test voltage: Resolution: 0.001 GΩ, accuracy: ± (4% v.M. such + 6 digits); range insulation resistance 1.000... 9.999 GΩ at 500 V test voltage: Resolution: 0.001 GΩ, accuracy: ± (4% v.M. such + 6 digits); range insulation resistance 10...20 GΩ at 500 V test voltage: Resolution: 0.01 GΩ, accuracy: ± (6% v.M. such + 6 digits); range insulation resistance 0.0 kΩ at 1 kV test voltage... 999.9: Resolution: 0.1 kΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 1.000... 9.999 MΩ at 1kV test voltage: Resolution: 0.001 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 10.00.. 99.99 MΩ at 1kV test voltage: Resolution: 0.01 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 100.0... 999,0 MΩ at 1kV test voltage: Resolution: 0.1 MΩ, accuracy: ± (3% v.M. such + 8 digits); range insulation resistance 1.000... 9.999 GΩ at 1 kV test voltage: Resolution: 0.001 GΩ, accuracy: ± (4% v.M. such + 6 digits); range insulation resistance 10.00 ... 99.99 GΩ at 1 kV test voltage: Resolution: 0.01 GΩ, accuracy: ± (4% v.M. such + 6 digits); range insulation resistance 100 GΩ at 1 kV test voltage: Resolution: 0.1 GΩ, accuracy: ± (4% v.M. such + 6 digits); range AC/DC measurement: 0.0.. 299,9 V, Resolution: 0.1 V, accuracy: ± (2% v.M. such + 6 digits); range AC/DC measurement: 300...600 V, Resolution: 1 V, accuracy: ± (2% v.M. such + 2 digits); frequency range: 45...65 Hz; test continuity measurements ±200 mA; range continuity measurement 0.00... 19.99 Ω: Resolution: 0.01 Ω, accuracy: ± (2% v.M. such + 3 digits); range continuity measurement 20... 199.9 Ω: Resolution: 0.1 Ω, accuracy: ± (2% v.M. such + 3 digits); range continuity measurement 200... 1999 Ω: Resolution: 1 Ω, accuracy: ± (4% v.M. such + 3 digits); range capacitance measurement 1...999 nF: Resolution: 1 nF, accuracy: ± (5% v.M. such + 5 digits); range capacitance measurement 1.00... 49.99 µF: Resolution: 0.01µF, accuracy: ± (5% v.M. such + 5 digits)

Product type: Insulation tester

Test voltage: 50 V
100 V
250 V
500 V
1000 V

Reading type: Insulation resistance

: ISO standards

Interfaces: Bluetooth®

: IP67

Dim: (L x W x H) 16 x 30.5 x 26.5 cm

Weight: 1.62 kg

Display type: Digital (LCD)

Insulation resistance (max.): 100 GΩ

Reading category: CAT IV 600 V

Width: 30.5 cm

Height: 26.5 cm

Length: 16 cm

Documents & Downloads

Datasheet

Datasheet 1427983 Sonel MIC-30 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V 100 GΩ

User & Safety Instructions

User & Safety Instructions 1427983 Sonel MIC-30 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V 100 GΩ

Information

Information 1427983 Sonel MIC-30 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V 100 GΩ

Description

Ergonomic handheld 1 kV insulation and continuity tester from sonel for each tool bag, ideal for a quick check of electrical machines and systems
