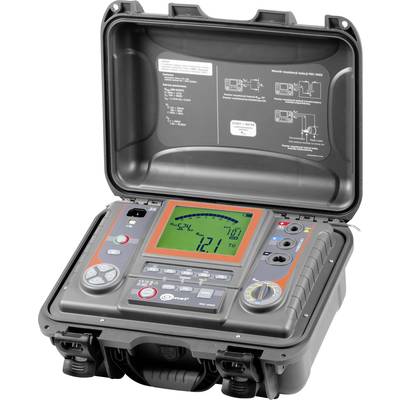

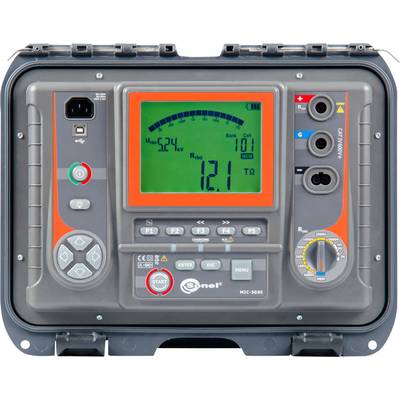

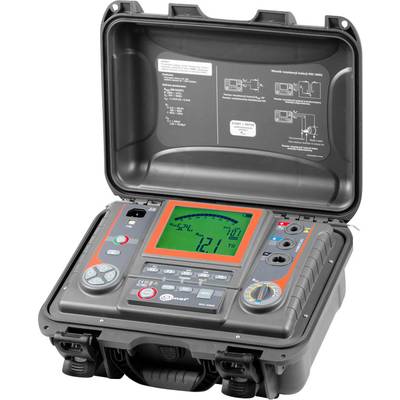

Sonel MIC-5005 Insulation tester Calibrated to (ISO standards) 250 V, 500 V, 1000 V, 2500 V, 5000 V 15 TΩ
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,452.94 / piece)
€
Only 1 Piece(s) available
Highlights & Details
Insulation tester MIC-5005
- Test voltage 50...5000 V for measuring range up to 15 tω
- Testing voltage adjustable in 10 V steps (50...1000V) and 25 V steps (1...5 kV).
- The device under test is discharged automatically after the measurement
- Time interval measurements with acoustic 5 sec. signalling
- 3 test times for the determination of the absorption coefficient
- Determination of the polarisation index (PI) and the dielectric absorption ratio (DAR)
- Test method (SV)
- Index d. dielectric discharge (DD)
- Adjustable test current (1,2mA, 3 mA)
- Leakage current measurement
- Digital filter function for testing environment with large disturbances
- AC/DC measurement 0...750 V
- Capacitance testing
- 5.6" LCD display
- Built-in fast charger
Technical specifications
- The insulation resistance range 0...999 kΩ: Resolution: 1 kΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 1.00...9.99 MΩ: Resolution: 0.01 MΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 10.0. 99.9 MΩ: Resolution: 0.1 MΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 100...999 MΩ: Resolution: 1 MΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 1.00...9.99 GΩ: Resolution: 0.01 GΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 10.0...99.9 GΩ: Resolution: 0.1 GΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 100...999 GΩ: Resolution: 1 GΩ, accuracy: ±(3.5% v.M. such + 10 digits); range insulation resistance 1.00...9.99 TΩ: Resolution: 0.01 TΩ, accuracy: ± (7.5% v.M. such + 10 digits); Range - insulation resistance 10...15 tω: Resolution: 0.1 TΩ, accuracy: ± (10% v.M. such + 10 digits); Range Insulation voltage 250 V: 500 GΩ; Range Insulation voltage 500 V: 1.00 TΩ; range insulation voltage 1000 V: 2.00 TΩ; range insulation voltage 2500 V:5 TΩ; range insulation voltage 5000 V:15 tω; Level Test Uiso. .1000 V: 200 V steps; Step Test Uiso...2500 V 500 V steps; Step Test Uiso. .5000 V: 1 kV steps; range AC/DC measurement: 0.0.. 29.9 V, Resolution: 0.1 V, accuracy: ± (2% v.M. such + 20 digits); range AC/DC measurement: 0.0.. 29.9 V, Resolution: 0.1 V, accuracy: ± (2% v.M. such + 20 digits); range AC/DC measurement: 30.. 299,9 V, Resolution: 0.1 V, accuracy: ± (2% v.M. such + 6 digits); range AC/DC measurement: 300. .600 V, Resolution: 1 V, accuracy: ± (2% v.M. such + 2 digits); frequency range: 45...65 Hz; test continuity measurement: ± 200 mA; range continuity measurement 0.00... 19.99 Ω: Resolution: 0.01 Ω, accuracy: ± (2% v.M. such + 3 digits); range continuity measurement 20.0... 199.9 Ω: Resolution: 0.1 Ω, accuracy: ± (2% v.M. such + 3 digits); range continuity measurement 200...999 Ω: Resolution: 1 Ω, accuracy: ± (4% v.M. such + 3 digits); range capacitance measurement 1...999 nF: Resolution: 1 nF, accuracy: ± (5% v.M. such + 5 digits); range capacitance measurement 1.00... 49.99 µF: Resolution: 0.01µF, accuracy: ± (5% v.M. such + 5 digits)
- Product type
Insulation tester
- Test voltage
250 V
500 V
1000 V
2500 V
5000 V
- Reading type
Insulation resistance
ISO standards
- Interfaces
USB
Wi-Fi
IP67
- Dim
(L x W x H) 15 x 82 x 15 cm
- Weight
9.56 kg
- Display type
Digital (LCD)
- Frequency range
- Insulation resistance (max.)
15 TΩ
- Reading category
CAT III 1000 V
CAT IV 600 V
- Width
82 cm
- Height
15 cm
- Length
15 cm
Documents & Downloads
Datasheet
Datasheet 1427984 Sonel MIC-5005 Insulation tester Calibrated to (ISO standards) 250 V, 500 V, 1000 V, 2500 V, 5000 V 15 TΩ
User & Safety Instructions
User & Safety Instructions 1427984 Sonel MIC-5005 Insulation tester Calibrated to (ISO standards) 250 V, 500 V, 1000 V, 2500 V, 5000 V 15 TΩ
Security datasheet
Security datasheet 1427984 Sonel MIC-5005 Insulation tester Calibrated to (ISO standards) 250 V, 500 V, 1000 V, 2500 V, 5000 V 15 TΩ
Description
The Sonel MIC-5005 of sonel is an insulation tester with measurement range up to 15 Terra ohm at 5 kV test voltage according to EN 61557-2. Even in the case of high-frequency interferences by filtering, absolutely precise measuring results. All parameters on the diagnostic insulation measurement as PI,, DD, capacity measurement, level test (SV) as well as Riso and PE measurement, with this test device for a professional insulation measurement.
This text is machine translated.
This text is machine translated.
Features
- Robust IP67 hard shell case
- CAT III 1000 V
- CAT IV 600V
- Test lines up to 20 m
- Alligator clips and probe tips
- USB cable
- Rechargeable battery
- OR-1 Adapter
- Protocol software Sonel Reader
- Measurements according to EN 61557
Scope of delivery
- Alligator clip 5.5 kV, black, shielded · Alligator clip 5.5 kV, red · Alligator clip 5.5 kV, blue · Test tip 5.5 kV with banana socket, black · Test tip 5.5 kV with banana socket, red · Power supply cable · Battery pack · Test lead with banana socket 1.8 m, 10 kV, red · Test lead with banana socket 1.8 m, 10 kV, blue · Test lead with banana socket 1.8 m, 10 kV, black, shielded · USB cable ·
- Carrying Case L4 for accessories · Battery pack · Software
- Sonel Reader · User manual · ISO calibration certificate
