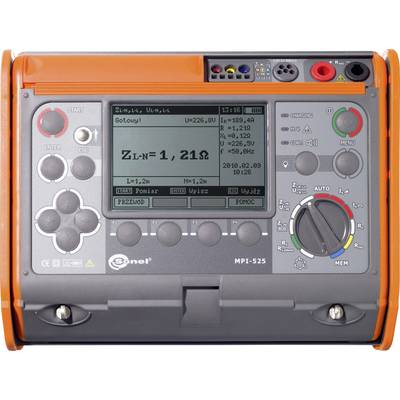

Electronic measuring device with display; shows resistance value 'ZL-N=1.21Ω'. Input buttons and rotary control visible.

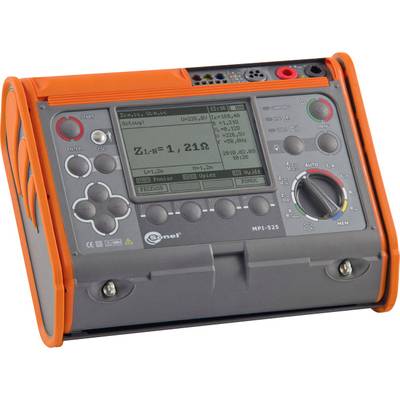

'Multifunction device for electrical measurement, Model MPI-525, shown in the switched-on state with screen displays.'

1/2

Datasheet (PDF)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,281.51 / piece)

€

Report legal concerns

Highlights & Details

VDE 0100 Installation Tester MPI-525

Loop impedance measurement with max. 41 A at 415 V
Loop impedance test without tripping the RCD
Short-circuit current calculation
Insulation resistance measurement with max. 2500 V up to 10 GΩ
Determination of the absorption coefficient by adjustable time intervals with audio signal
Protective earth resistance measurement with ± 200 mA
RCD/FI type AC, A and B up to 1000 mA
Earthing measurement
Rotary field indicator;

Technical specifications

Loop impedance measurement range: 0 to 1999 Ω
Earth resistance measurement range: 0 to 1.99 kΩ
Insulation resistance measurement range: 0 to 9.99 GΩ
Low-ohm resistance of the PE conductor: 0 to 400 Ω

Product type: Electrical tester

: Manufacturer's standards (no certificate)

Reading category: CAT IV 300 V

Interfaces: USB

Dim: (L x W x H) 310 x 455 x 180 mm

Weight: 7 kg

: IP54

Reading range (VDE): Insulation resistance
Loop impedance
Wave impedance
Resistance
Earth leakage resistance
Touch voltage
Voltage
Current
Frequency

DIN standard: DIN IEC 60364

Display type: Digital (LCD)

Reading range

Width: 455 mm

Height: 180 mm

Length: 310 mm

Voltage supply: Battery

Memory: Yes

Type: MPI-525

VDE standard: 0100

Features: RCD/FI testing

Documents & Downloads

Datasheet

Datasheet 1427979 Sonel MPI-525 Electrical tester VDE standard 0100

User & Safety Instructions

User & Safety Instructions 1427979 Sonel MPI-525 Electrical tester VDE standard 0100

Description

The MPI-525is a universally applicable DIN VDE 0100/0105 test device from sonel the complete testing of electric installations, as well as industrial plants of all kinds. Now with extended insulation test up to 2500 V and the determination of 2 absorption coefficient of tonsignalisierte time intervals. Further functions such as 3-conductor earth measurement, PE resistance measurement as well as the examination of all RCD types, (A, AC, B) normal and then selectively belong to the measurements of the MPI-525, conform to the Version MPI-520 in this series.

This text is machine translated.

Features

Robust rubber-protected IP54 housing
CAT IV 300V
Test Leads
Push Rod
Earthing measurement accessories such as auxiliary electrodes and measuring lines for spindles
Universal rotary current accessories such as CEE-adapter 16 A and 32 A 4- or 5-pin
Uni-Schutzkontakt Adapter
USB cable
Bag
Rechargeables
Protocol software Sonel Reader
