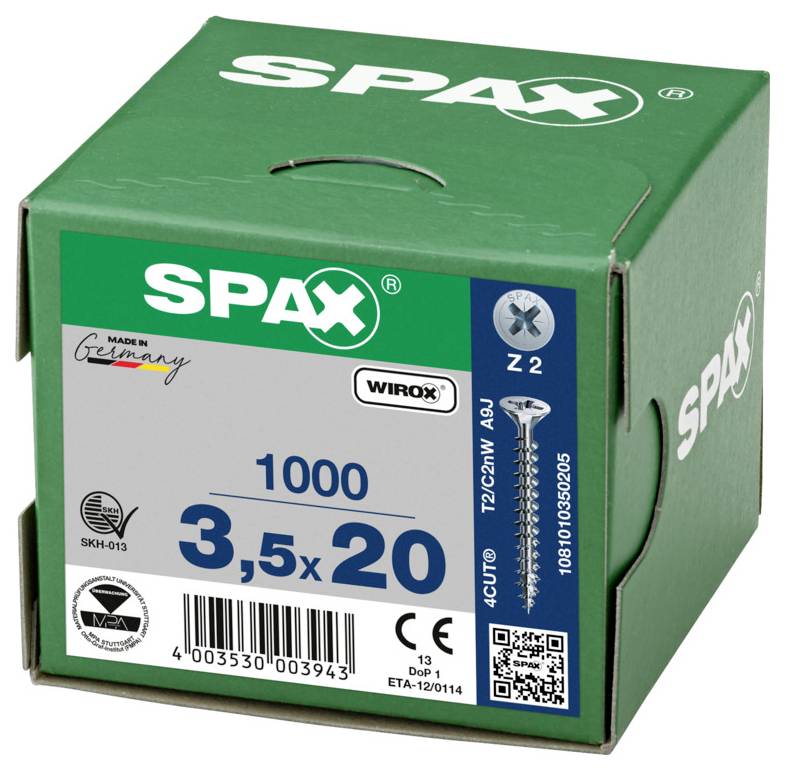

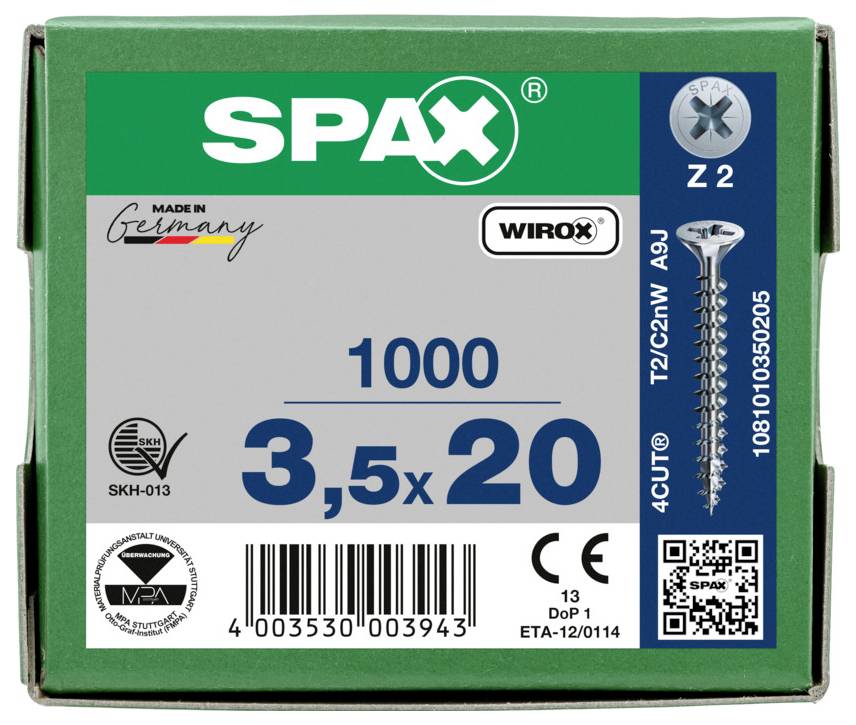

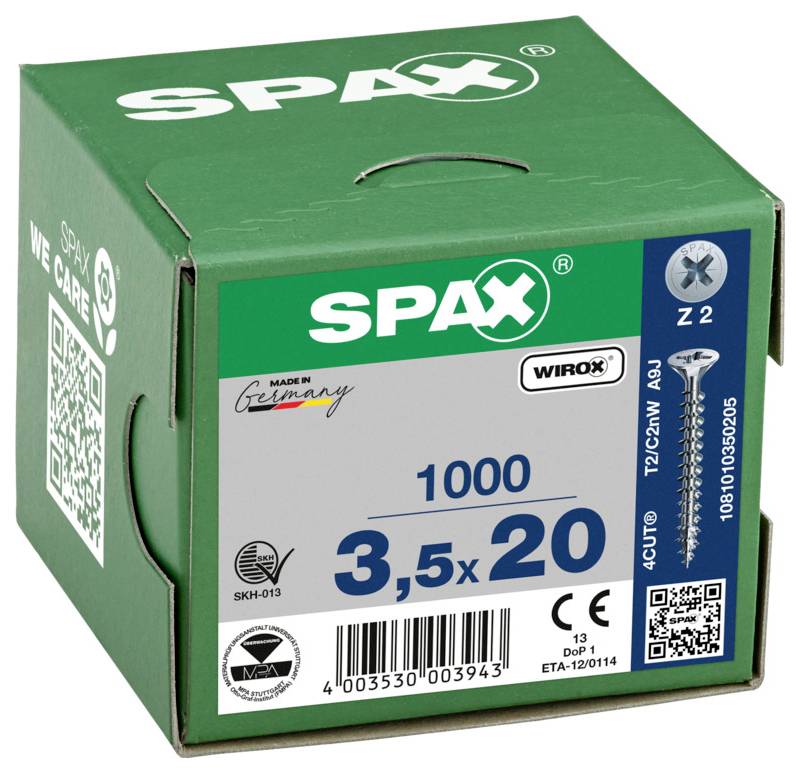

SPAX 1081010350205 Countersunk screw 3.5 mm 20 mm Steel 1000 pc(s)
EAN:
Part number:
Item no:
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 1000 pc(s))
Total (€ 11.76 / piece)
€
Only 2 Set(s) available
Highlights & Details

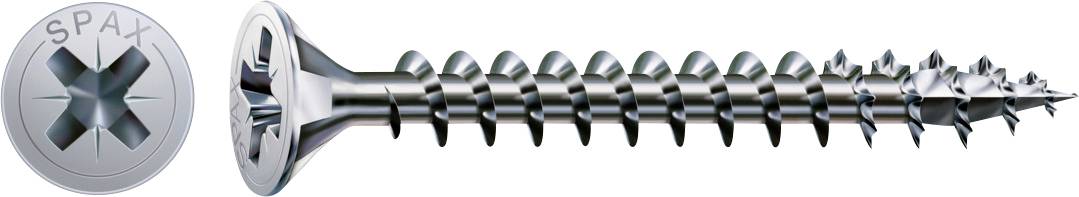

SPAX SENKKOPF CROSS-HEAD Z2 FULL THREAD WIROX 1000 PCS
- Multifunctional applications indoors
- Fast and safe processing with low application of force (more fittings with one battery charging)
- Can be used everywhere
- Reduces effectively the splice of wood material even with small edge distances

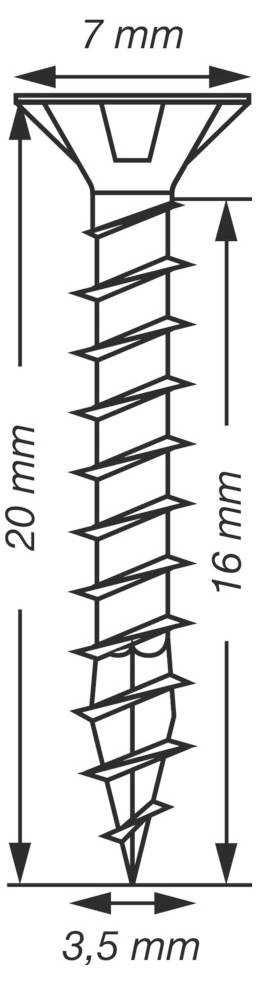

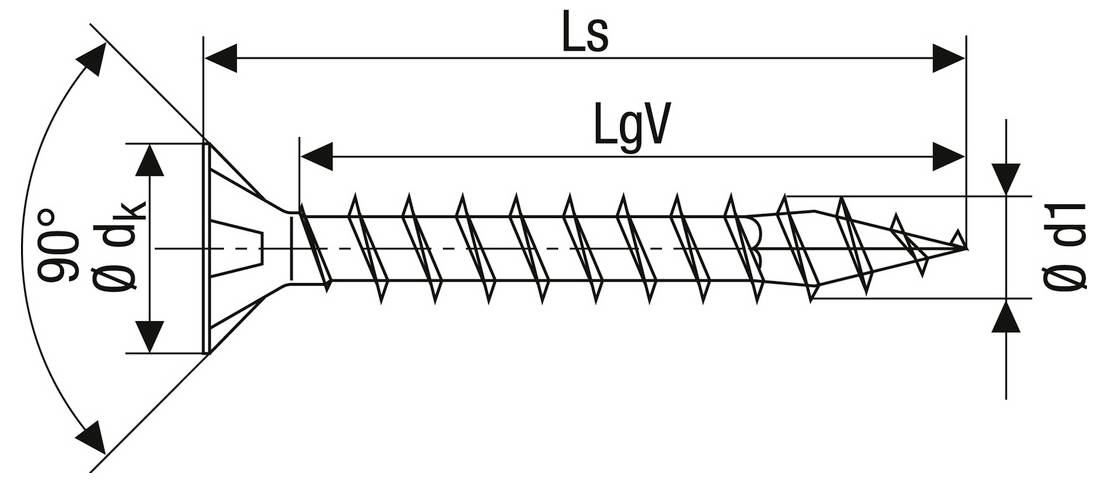

Technical specifications
- Head diameter: 7 mm
- Head base: MULTI head
- Head angle: 90º
- Drive: Z cross-tip
- Thread form: Full thread
- Thread length: 16 mm
- Surface: WIROX
- Anti-corrosion code A9J
- Tip: 4CUT
- MIG certificate: Yes
- MPA certificate: Yes
- Certificate SKH: Yes
- Certificate CE 12/0114: Yes
- Content
1000 pc(s)
- Dim
(Ø x L) 3.5 mm x 20 mm
- (Ø)
3.5 mm
- Length
20 mm
- Material
Steel
- Head shape
Countersunk
- Product type
Countersunk screw
Variants(All information is without VAT, plus shipping costs)
Length
(Ø)
Product type
SPAX 1081010350205 Countersunk screw 3.5 mm 20 mm Steel 1000 pc(s)
This article
20 mm
3.5 mm
Countersunk screw
Minimum order quantity: 1
Multiple: 1
€ 11.76*
SPAX 1081010250105 R 88094 Senkkopf m.Spitze/Kreuzschl.-PZ Wood screw 2.5 mm 10 mm Pozidriv Steel WIROX 1000 pc(s)
10 mm
2.5 mm
Wood screw
Minimum order quantity: 1
Multiple: 1
€ 10.08*
SPAX 1081010450503 Countersunk screw 4.5 mm 50 mm Steel 200 pc(s)
50 mm
4.5 mm
Countersunk screw
Minimum order quantity: 1
Multiple: 1
€ 10.08*
SPAX 1081010450403 Countersunk screw 4.5 mm 40 mm Steel 200 pc(s)
40 mm
4.5 mm
Countersunk screw
Minimum order quantity: 1
Multiple: 1
€ 7.97*
SPAX 1081010400403 Countersunk screw 4 mm 40 mm Steel 200 pc(s)
40 mm
4 mm
Countersunk screw
Minimum order quantity: 1
Multiple: 1
€ 6.29*
SPAX 1081010400205 Countersunk screw 4 mm 20 mm Steel 1000 pc(s)
20 mm
4 mm
Countersunk screw
Minimum order quantity: 1
Multiple: 1
€ 15.12*
SPAX 1081010450305 Countersunk screw 4.5 mm 30 mm Steel 1000 pc(s)
30 mm
4.5 mm
Countersunk screw
Minimum order quantity: 1
Multiple: 1
€ 26.04*
SPAX 1081010400555 Countersunk screw 4 mm 55 mm Steel 500 pc(s)
55 mm
4 mm
Countersunk screw
Minimum order quantity: 1
Multiple: 1
€ 19.32*
SPAX 1081010500705 Countersunk screw 5 mm 70 mm Steel 200 pc(s)
70 mm
5 mm
Countersunk screw
Minimum order quantity: 1
Multiple: 1
€ 11.76*
SPAX 1081010500605 Countersunk screw 5 mm 60 mm Steel 500 pc(s)
60 mm
5 mm
Countersunk screw
Minimum order quantity: 1
Multiple: 1
€ 26.88*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742732 SPAX 1081010350205 Countersunk screw 3.5 mm 20 mm Steel 1000 pc(s)
Description

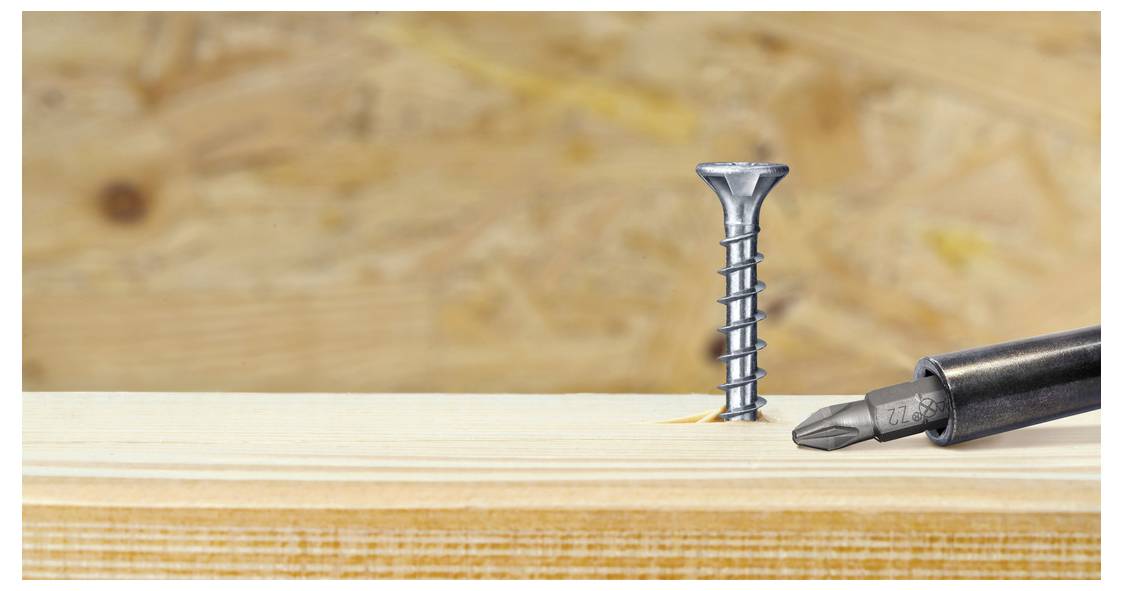

The universal screw is the absolute all-rounder in the range of SPAX. It can be screwed in almost everything – for example, without the annoying pre-drilling in coniferous wood like spruce and pine wood as well as in the common wooden material plates (MDF, chipboard and OSB boards). Our universal screw plays its superiority mainly in the interior fittings and furniture construction area, but also on the outside it can be used well with the appropriate corrosion protection. The special thread geometry makes the screw-in resistance much lower than conventional screws, WAS not only saves your power and nerves, but also of course the battery of the inserted screwdriver. Splining of the wood in the proximity of the edges is almost completely prevented. This means you can turn more screws per battery charge, and you don't have to worry about broken wood ends!
This text is machine translated.
This text is machine translated.
Features
- Multifunctional applications indoors
Hints

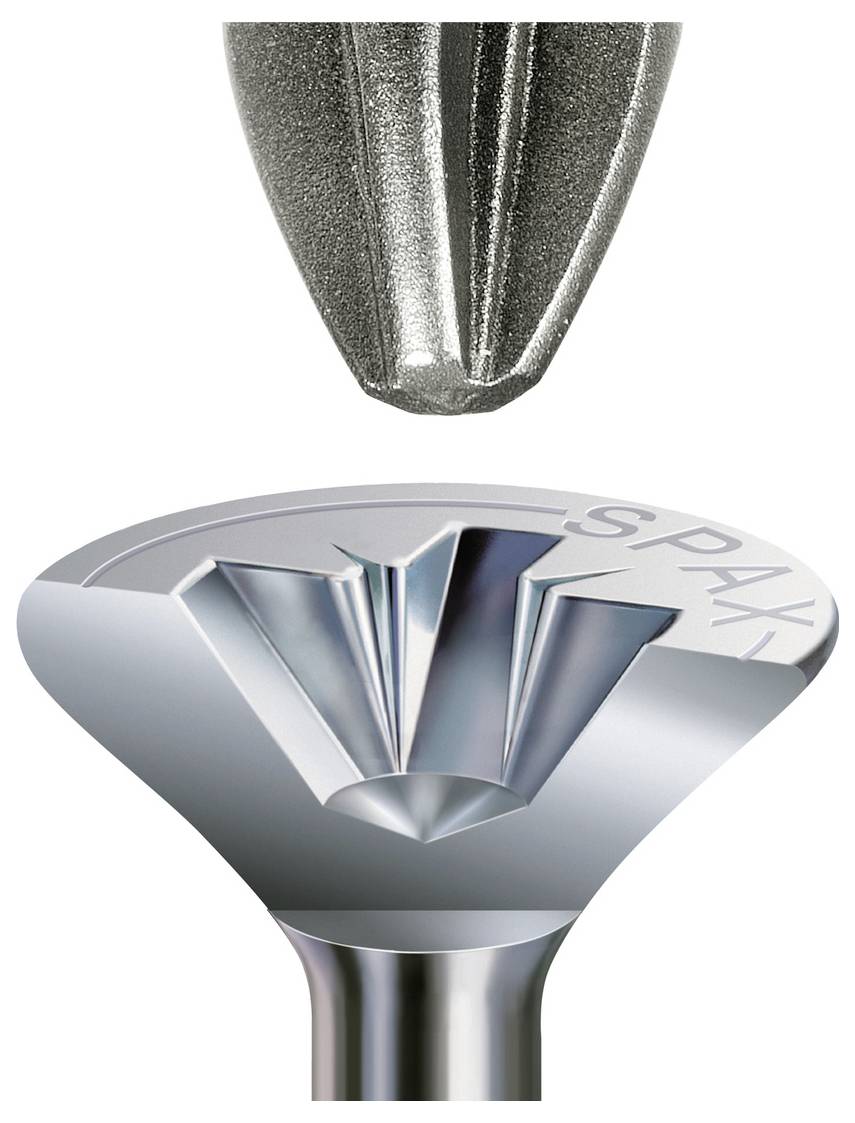

The Force Attack Cross Head Z is a further development of the simple cross-force attack by the company Philips SCREW COMPANY. The difference is that the four edges of the screwdriver blade do not taper toward the tip. This increases the lateral hold for the bit and reduces the cam-out effect. This is the result of conventional cross-head power attacks by rejuvenation, because the torque of the cordless screwdriver pushes the screwdriver bit upwards.

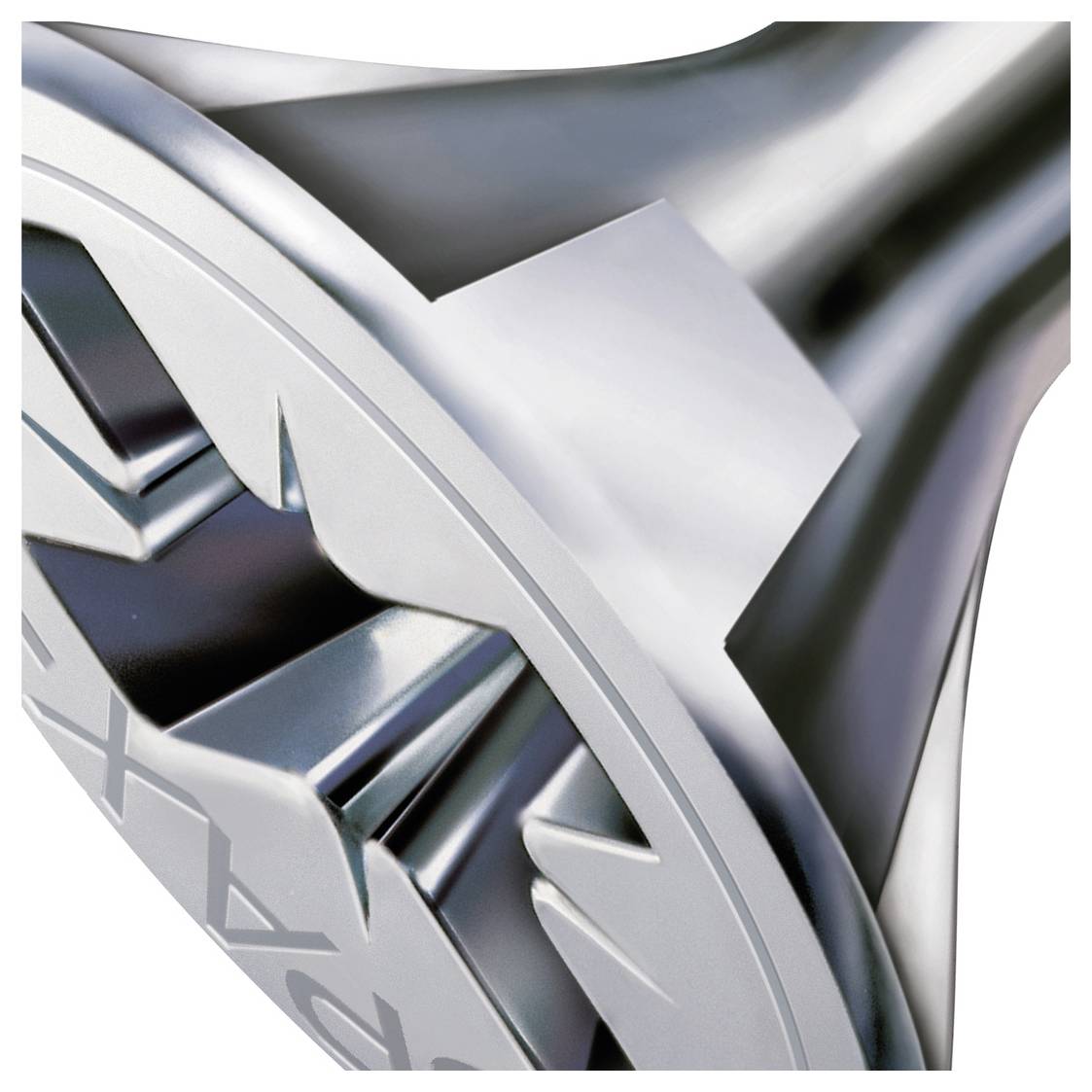

The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.
In contrast to the partial thread, the full thread extends over the entire length of the screw. The more threads a screw has, the greater the tensile and compressive forces that can be deflected from screw to wood via it. Our threaded screws are used mainly for high-strength wood joints.

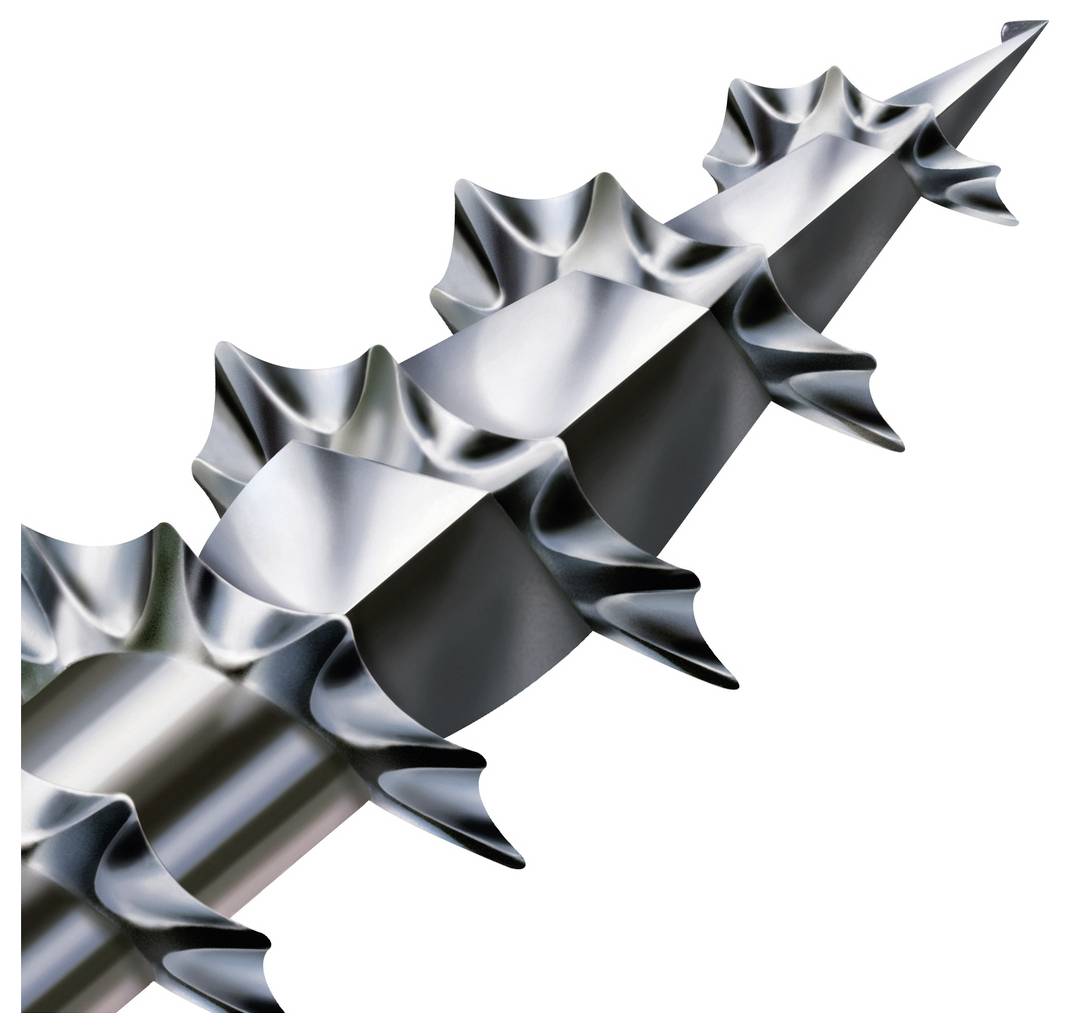

The term 4CUT stands for the square shape of the screw tip. These edges supplant the wooden fibers during insertion and creates space for the core diameter of the screw. This reduces the spread pressure exerted by the Kern in the wood and prevents the wood from springing up close to the edges. The necessary torque of the cordless screwdriver is also reduced, because the Kern of the screw does not have to "squeeze" itself into the wood.
With WIROX, SPAX has developed a coating that is far superior to zinc plating in terms of corrosion protection. With WIROX no chrome (VI) is used, the screws can be loaded just as well after years in the not directly weathered external area as well as environmentally friendly. WIROX screws are the first choice for all open buildings without direct weathering such as carports or pergoles, for direct weather stresses as with terraces we recommend our screws in the stainless steel version.
