Buy SpeaKa Professional Monitor desk mount SP-1664312 1 Display(s) 33,0 cm (13") - 55,9 cm (22") Black Tiltable, Swivelling,

A black, adjustable monitor arm with desk clamp mounting. Suitable for standard monitors for flexible positioning.

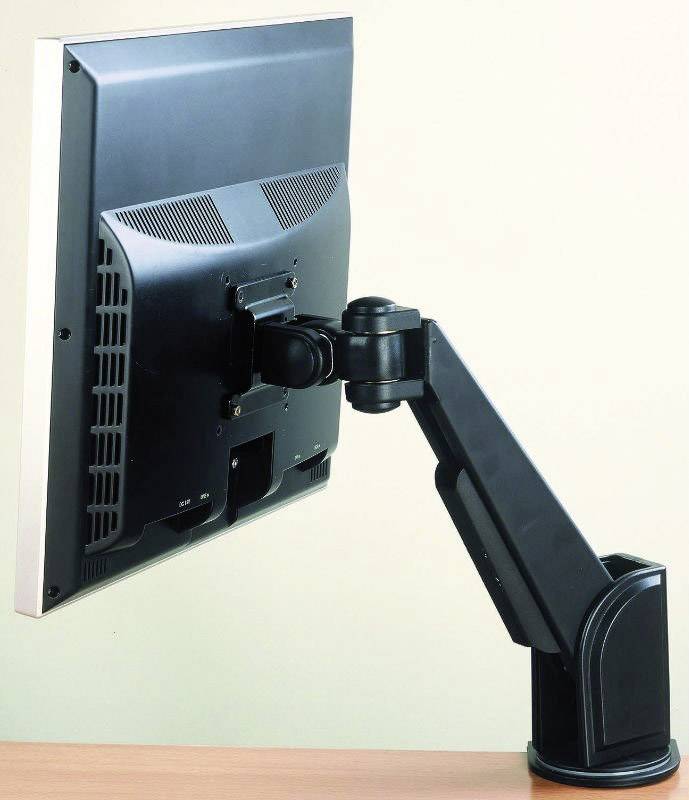

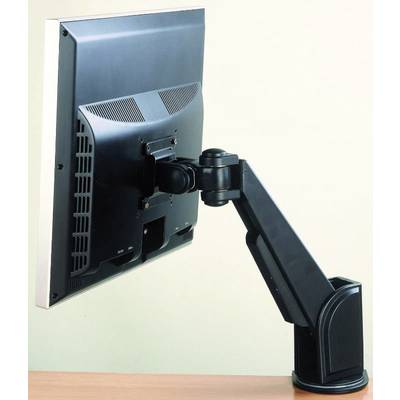

A computer monitor mounted on an adjustable arm, sitting on a desk. The screen displays no content.

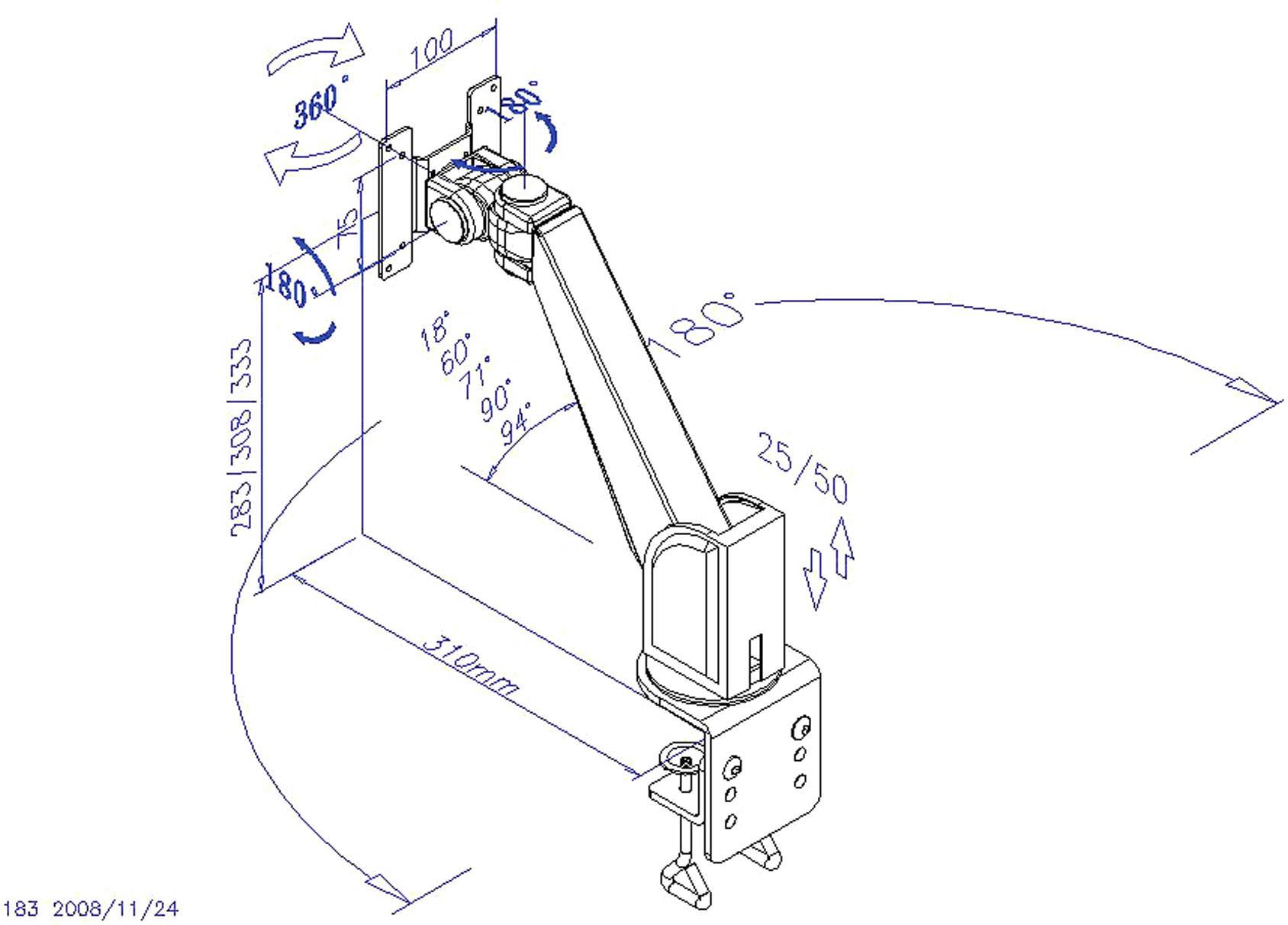

Technical drawing of a pivoting arm with dimensions and angles. Shows rotation and tilting ranges as well as mounting points.

1/3

Datasheet (PDF)

80 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 60.50 / piece)

€

Report legal concerns

Highlights & Details

SpeaKa Professional Table mount for LCD monitor arm black

Holder type: Tiltable, Swivelling, Swivelling, Retractable
Supports all VESA standards up to 100 x 100 mm
Suitable for displays sized (range): 33,0 cm (13") - 55,9 cm (22")
Load capacity (max.) 10 kg
Three adjustable positions

Technical specifications

Product type: Monitor desk mount

Suitable for: 33,0 cm (13") - 55,9 cm (22")

Add-on displays: 1 Display(s)

Holder type: Tiltable
Swivelling
Swivelling
Retractable

: No

Max. load capacity: 10 kg

: No

: 75 x 75 mm
100 x 100 mm

Rotation: 360°

Max. table thickness: 90 mm

Tilt range (bottom): -90°

Tilt range (top): +90°

Swivel range (left): 90°

Swivel range (right): 90°

Distance to wall (min.): 0 cm

Distance to wall (max.): 31 cm

Width: 31 cm

Height: 55 cm

Depth: 11.5 cm

Factory colour: Black

Material (details): Steel

Weight: 2.2 kg

Dim: (W x H x D) 31 x 55 x 11.5 cm

Suitable for: 33,0 cm (13")
33,8 cm (13,3")
35,6 cm (14")
38,1 cm (15")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
Show more

Documents & Downloads

Datasheet

Datasheet 416078 SpeaKa Professional Monitor desk mount SP-1664312 1 Display(s) 33,0 cm (13") - 55,9 cm (22") Black Tiltable, Swivelling,

User & Safety Instructions

User & Safety Instructions 416078 SpeaKa Professional Monitor desk mount SP-1664312 1 Display(s) 33,0 cm (13") - 55,9 cm (22") Black Tiltable, Swivelling,

Information

Information 416078 SpeaKa Professional Monitor desk mount SP-1664312 1 Display(s) 33,0 cm (13") - 55,9 cm (22") Black Tiltable, Swivelling,

Description

The convenient LCD monitor table bracket offers an optimum viewing position thanks to the large rotation and inclination options as well as the height adjustment. The solid base ensures a secure stand.
The monitor holder is suitable for all monitors up to 55.9 cm (22") with VESA-standardized hole spacing of 75 x 75 or 100 x 100 mm.

Ideal alignment
You do not have to do without an optimum alignment and flexible viewing angle, because you can rotate the monitor 360° around your own axis and tilt it up and down by 180°. The holder is also height-adjustable between 28.3 and 33.3 cm and can thus be adjusted perfectly to the user.

Also perfect for TVs
Use the monitor holder also for the usually smaller second TV sets. Simply pay attention to the suitable VESA standard.

C-clamp included in delivery
A C-clamp is included in the delivery, with which you can attach the holder to the table. Here it is not necessary to drill a hole in the desk, the LCD monitor table holder is attached here to the table edge (table thickness: Max. 90 mm).

This text is machine translated.
