Buy SpeaKa Professional Monitor wall mount SP-4330476 Superflex Workstation 1 Display(s) 25,4 cm (10") - 76,2 cm (30") Grey

Monitor mount with adjustable arm, mounted on a pole. Suitable for attaching a screen to walls for flexible positioning.

Image of an adjustable metal monitor arm. It is attached to a vertical pole to allow flexible positioning of a screen.

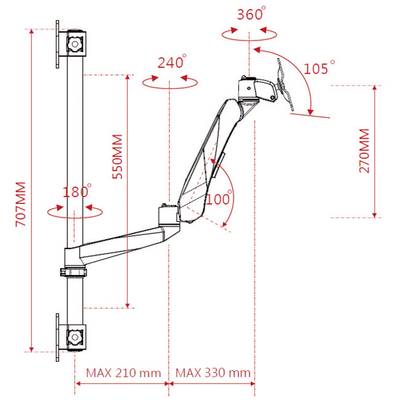

Assembly Instructions for a Monitor Mount: shows dimensions and maximum pivot and tilt angles. Maximum height 707mm.

Technical drawing of a mechanical component with a red-marked circle and dimensions, possibly part of a mechanical system.

1/4

42 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 155.45 / piece)

€

Report legal concerns

Highlights & Details

SpeaKa Professional Super Flex monitor holder height adjustable, wall mounting with pneumatic

Holder type: Height-adjustable, Tiltable, Swivelling, Swivelling
Supports all VESA standards up to 100 x 100 mm
Suitable for displays sized (range): 25,4 cm (10") - 76,2 cm (30")
Load capacity (max.) 9 kg
Height adjustable by a on the wall mounted rod
Powered by Xergo

Technical specifications

Product type: Monitor wall mount

Suitable for: 25,4 cm (10") - 76,2 cm (30")

Add-on displays: 1 Display(s)

Holder type: Height-adjustable
Tiltable
Swivelling
Swivelling

Features: Pneumatic

: No

Max. load capacity: 9 kg

: Yes

: 75 x 75 mm
100 x 100 mm

Rotation: 90°

Tilt range (bottom): -15°

Tilt range (top): +90°

Min. distance to floor/ceiling: 0 cm

Max. distance to floor/ceiling: 97.7 cm

Swivel range (left): 120°

Swivel range (right): 120°

Distance to wall (min.): 0 cm

Distance to wall (max.): 54 cm

Factory colour: Grey

Weight: 3.8 kg

Dim

Suitable for: 25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
33,0 cm (13")
33,8 cm (13,3")
35,6 cm (14")
38,1 cm (15")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
Show more

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1082619 SpeaKa Professional Monitor wall mount SP-4330476 Superflex Workstation 1 Display(s) 25,4 cm (10") - 76,2 cm (30") Grey

Description

The SpeaKa Professional Flex monitor holder offers an optimum viewing position on your wall thanks to 2 pivot points and large rotation and inclination options. The 70 cm long rod allows the holder to be easily pushed up and down: Perfect for constantly changing viewing angles. Thus, you can view the mounted screen e.g. in the lying position as well as in the standing position.

With the help of the accompanying mounting material it is very easy to mount and disassemble the monitor holder on the wall. Thanks to the gas pressure technology, the monitor is easily adjusted in height on one level (vertical or horizontal). The swivel function allows you to adjust the viewing distances to the monitor according to your individual needs. It can be swiveled up to 240° and inclined up to 205°. The monitor holder is suitable for all monitors up to 76 cm (30") with VESA standardized hole spacing of 75 x 75 or 100 x 100 mm.

Also perfect for TVs
Use the monitor holder also for the usually smaller second TV sets. Simply pay attention to the suitable VESA standard.
