SpeaKa Professional Monitor desk mount SP-3947568 Flex 2 Display(s) 25,4 cm (10") - 68,6 cm (27") Black, Silver Height-a
EAN:
Part number:
Item no:
Datasheet (PDF)
119 Piece(s) (Only while stocks last)
Sales and shipping:
Number
Total (€ 189.07 / piece)
€ 214.29
-12 %
€
Highlights & Details
SpeaKa Professional Flex 2-way monitor holder, table mounting with gas pressure technology with grommet- and C-terminal
- Holder type: Height-adjustable, Tiltable, Swivelling, Swivelling, Retractable
- Supports all VESA standards up to 100 x 100 mm
- Suitable for displays sized (range): 25,4 cm (10") - 68,6 cm (27")
- Load capacity (max.) 18 kg
- Stepless height adjustment through gas pressure technology
- Powered by Xergo
Technical specifications
- Adjustable height
- Product type
Monitor desk mount
- Suitable for
25,4 cm (10") - 68,6 cm (27")
- Add-on displays
2 Display(s)
- Holder type
Height-adjustable
Tiltable
Swivelling
Swivelling
Retractable
- Features
2-in-1 fastener
Pneumatic
No
- Max. load capacity
18 kg
Yes
75 x 75 mm
100 x 100 mm
- Rotation
360°
- Max. table thickness
110 mm
- Tilt range (bottom)
-15°
- Tilt range (top)
+90°
- Min. distance to floor/ceiling
0 cm
- Max. distance to floor/ceiling
73.5 cm
- Swivel range (left)
180°
- Swivel range (right)
180°
- Distance to wall (min.)
0 cm
- Distance to wall (max.)
54 cm
- Width
735 mm
- Height
540 mm
- Depth
1180 mm
- Factory colour
Black
Silver
- Weight
6.3 kg
- Dim
(W x H x D) 735 x 540 x 1180 mm
- Suitable for
25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
Show more
Documents & Downloads
Datasheet
Datasheet 986892 SpeaKa Professional Monitor desk mount SP-3947568 Flex 2 Display(s) 25,4 cm (10") - 68,6 cm (27") Black, Silver Height-a
User & Safety Instructions
User & Safety Instructions 986892 SpeaKa Professional Monitor desk mount SP-3947568 Flex 2 Display(s) 25,4 cm (10") - 68,6 cm (27") Black, Silver Height-a
Description

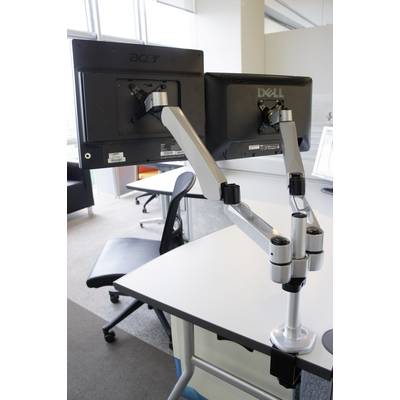

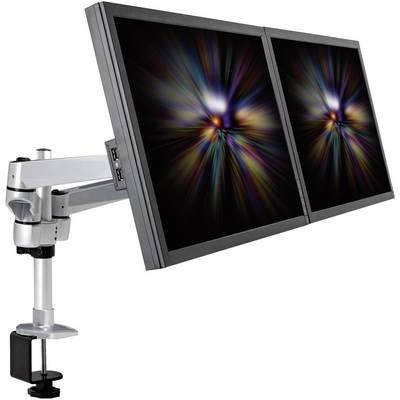

The SpeaKa Professional Flex monitor holder offers an optimum viewing position for two monitors thanks to 2 pivot points per joint as well as large rotation and tilt options and height adjustment. Thanks to the gas pressure technology, the monitors are easily adjusted in height on one level (vertical or horizontal). Through the telescopic sight distances function can be set on the monitor depending upon your individual needs. It can be swiveled up to 360° and tilted up to 105°. The monitor holder is suitable for all monitors up to 69 cm (27") with VESA standardized hole spacing of 75 x 75 or 100 x 100 mm.
2-in-1 mounting set: Grommet and C-clamp
Both a Grommet and a C-clamp are included in the delivery, with which you can either clamp the holder to the table or fix it through a hole in the table.
Also perfect for TVs
Use the monitor holder also for the usually smaller second TV sets. Simply pay attention to the suitable VESA standard.
This text is machine translated.
2-in-1 mounting set: Grommet and C-clamp
Both a Grommet and a C-clamp are included in the delivery, with which you can either clamp the holder to the table or fix it through a hole in the table.
Also perfect for TVs
Use the monitor holder also for the usually smaller second TV sets. Simply pay attention to the suitable VESA standard.
This text is machine translated.
Features
- C-clamp for attaching the holder on the edge of the table
- Grommet terminal for mounting the bracket through a hole in the table
- Internal cable management laid cables properly below the swivel arm.
- Adjustable height: up to 16 cm
- Load capacity per monitor up to 9 kg
- Material: aluminum, steel, plastic
- Swivels 360°, tilt: 15° downward and 90° upward, rotation: 360°

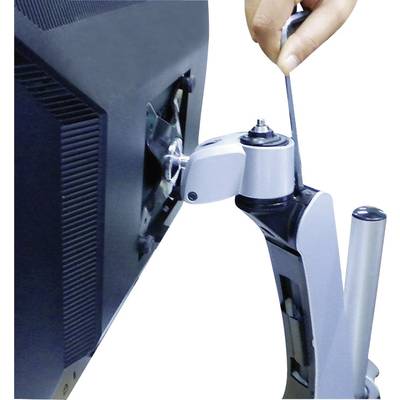

- Easy to assemble and dismantle
Scope of delivery
- 2x brackets
- 8 x M4 screws (9 mm)
- 2x M3L tool
- 1 x C-clamp and grommet terminal
- 2x spring arm
- 2 x M6 L tool
- 2 x swivel arm
- 30.2 cm rod
- Cable management
- EVA padding
- Metal-C-clamp (L)
- Metal-C-clamp (S)
- M4 screw (15 mm)
- Washer (male round)
- Washer (female round)
- 4 x M6 screw (12 mm)
- 4 x M5 screw (14 mm)
- Base
- User manual.
