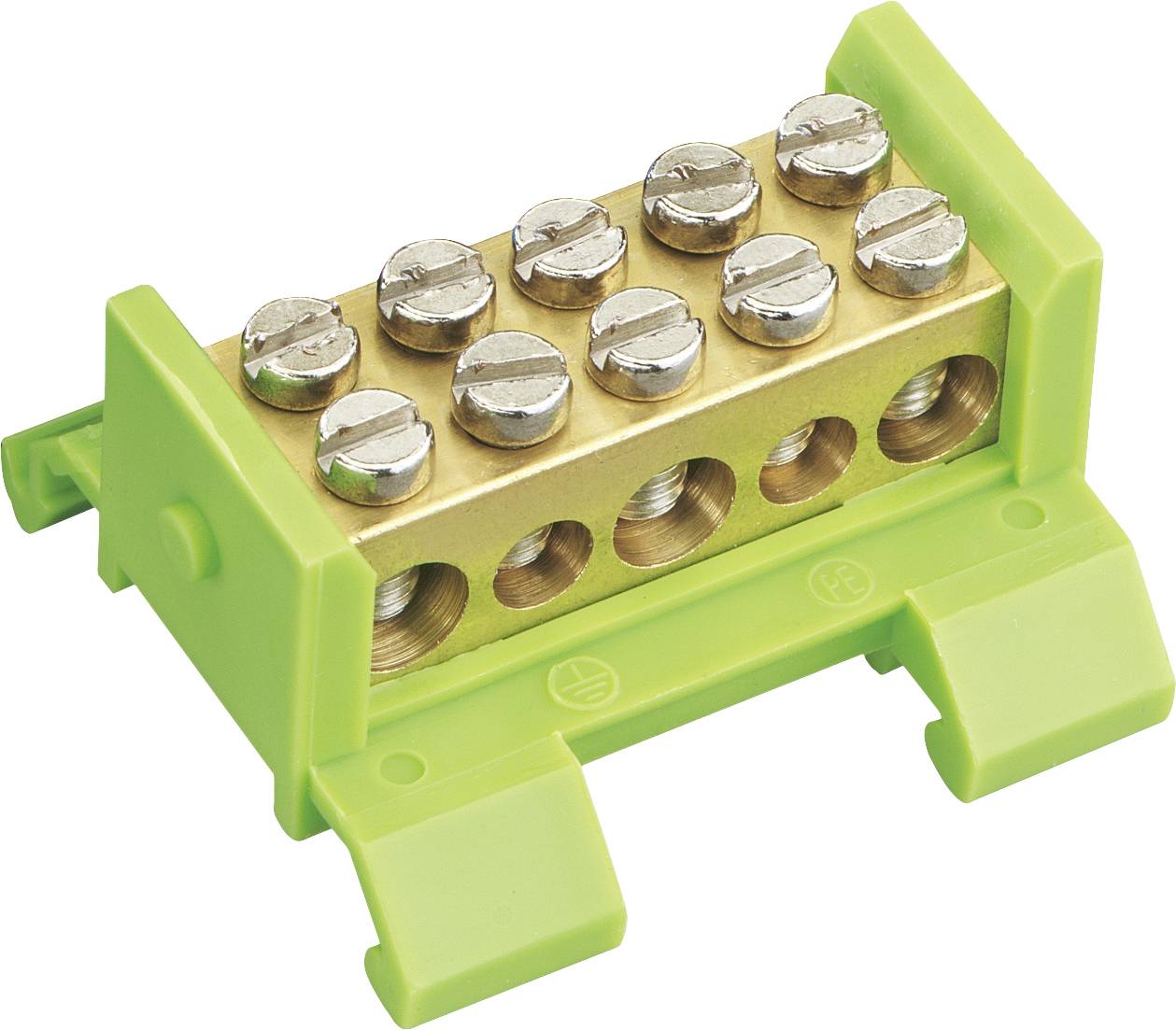

Spelsberg 79080501 Green 101 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal block
Number of pins
1
Nominal current - rounded value
101 A
Factory colour
Green
Dim
(W x H x D) 48 x 35 x 25 mm
Datasheet (PDF)
Technical specifications
- Mounting type: DIN rail
- Connection type: Screws
- Total number of connections: 5
- Product type
Terminal block
- Factory colour
Green
- Number of pins
1
- Dim
(W x H x D) 48 x 35 x 25 mm
- Nominal current
101 A
- Nominal current - rounded value
101 A
- Width
48 mm
- Height
35 mm
- Depth
25 mm
DIN rail (top hat rail) 35 mm
Green
51
TRUE
23 mm
20 mm
690 V
1
40-40 °C
V2
FALSE
Screw connection
Screw connection
FALSE
1-25 mm²
1-25 mm²
Thermoplastic
76 A
FALSE
Documents & Downloads
Datasheet
Datasheet 2379571 Spelsberg 79080501 Green 101 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379571 Spelsberg 79080501 Green 101 A 1 pc(s)
Description

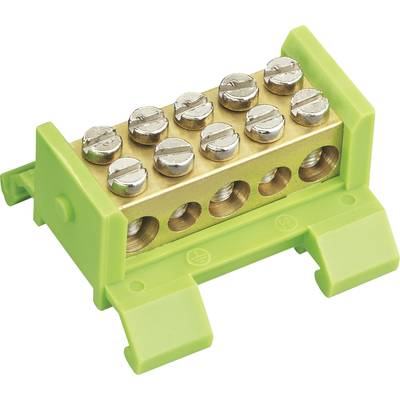

PE/N terminal block for mounting on 35mm standard rail, for example in meter housings, PE terminal (green) 3 x 25qmm, 2 x 16qmm
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
