Buy Stabila LAR 350, 9-pcs 360-degree laser Self-levelling Range (max.): 800 m

Construction equipment consisting of a laser level, tripod and measuring rod, used for precise alignment and measurement.

Yellow laser measuring device on a tripod, used for precise measurement and alignment in construction.

A yellow laser level on an aluminium tripod, used for precise height measurements in construction projects.

Construction site laser device set with tripod, receiver, scale, safety glasses and transport case on grey background.

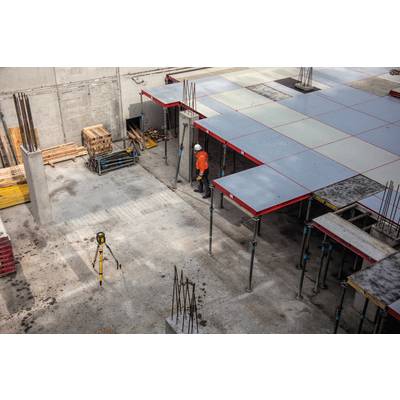

A construction site with a construction worker wearing an orange hi-vis vest, standing beneath a partially completed concrete building. Posts and supports are visible.

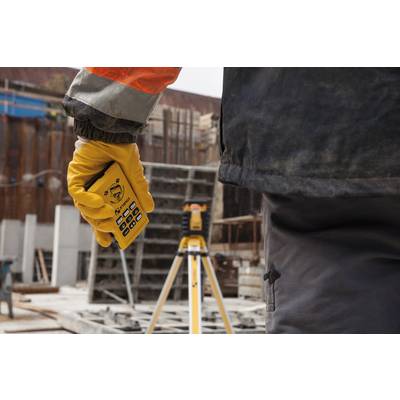

A person is holding a control device and looking at an orange survey instrument mounted on a tripod at a construction site.

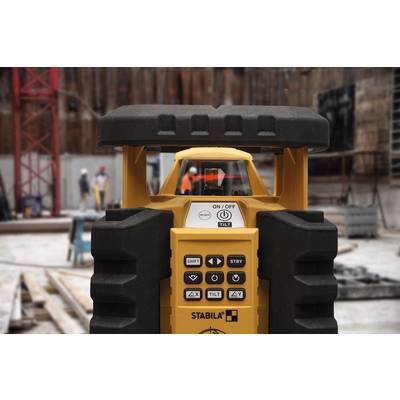

'Close-up of a yellow laser level on a construction site. Builders and equipment working out of focus in the background.'

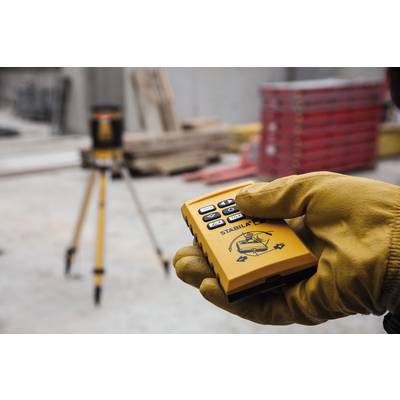

A gloved hand is holding a yellow control device, with a tripod blurred in the background.

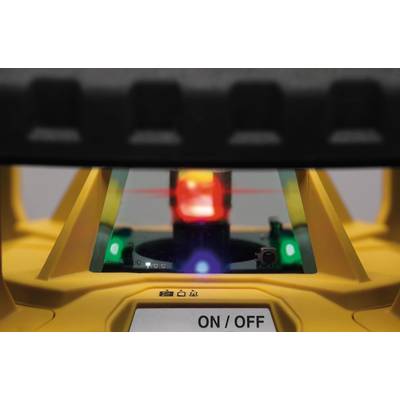

A yellow laser levelling unit is activated, displaying a red laser beam. Front panel with 'ON/OFF' switch visible.

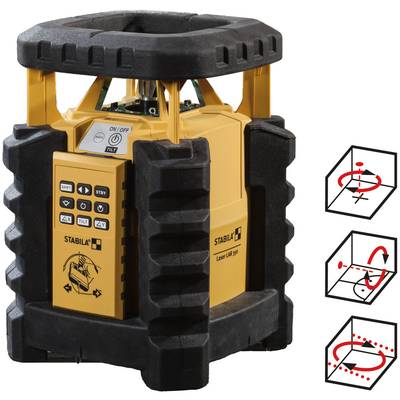

A yellow stabilaser with a black protective housing and control elements. On the right, symbols for horizontal, vertical, and manual rotations.

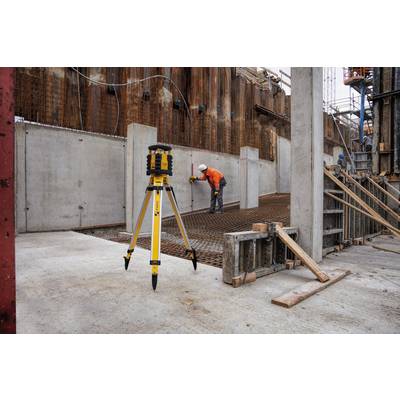

On a construction site, a worker in orange clothing is aligning the metal reinforcement. A surveying instrument is in the foreground.

1/13

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,500.00 / piece)

€

Report legal concerns

Technical specifications

Protection class IP65
Power 1 mW
Working range: Up to 800 m diameter

Features: Self-levelling

Range (max.): 800 m

Accuracy (+/-): 0.10 mm/m

Auto-adjustment range (+/-): 5°

Laser category: 2

Visible beam length: 635 nm

Operating time (battery-powered): 80 h

Tripod thread mount: 5/8"

: Manufacturer's standards (no certificate)

Type: LAR 350, 9-pcs

Product type: 360-degree laser

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1677887 Stabila LAR 350, 9-pcs 360-degree laser Self-levelling Range (max.): 800 m

Information

Information 1677887 Stabila LAR 350, 9-pcs 360-degree laser Self-levelling Range (max.): 800 m

Warranty Terms

Warranty Terms 1677887 Stabila LAR 350, 9-pcs 360-degree laser Self-levelling Range (max.): 800 m

Description

Fully automatic, motor-controlled rotating laser for horizontal and vertical applications as well as manual tilt in two axes. The variety of the groundbreaking technologies and features. Thanks to the built-in protection systems this laser nothing on - no crash, no rain, no dust. A strong measurement package for professionals with responsibility.

This text is machine translated.

Features

IP 65 protection
Slope function
MOTION CONTROL motion control
SECTION MODE
LED ASSIST system.

Scope of delivery

Rotation Laser LAR 350
Receiver REC300 Digital
Remote control RC-LAR350
90° Angle Rail
Laser viewing goggles
Target plate
Carrying case
2 x D 1.5 V batteries
4x AA battery

Hints

Horizontal and vertical applications

Stabila LAR 350, 9-pcs 360-degree laser Self-levelling Range (max.): 800 m
