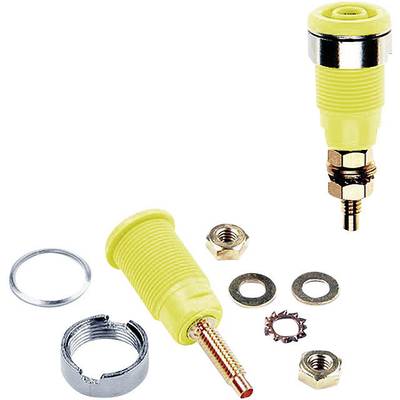

Stäubli SLB4-G Safety jack socket Socket, built-in Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€
Highlights & Details
Safety panel-mounted socket SLB4-G
- 32 A Green, Yellow
Technical specifications
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Manufacturer part #
23.3020-20
- Type
SLB4-G
- Content
1 pc(s)
- Dim
(Ø x L) 14.5 mm x 38.5 mm
- Factory colour
Green
Yellow
- (Ø)
14.5 mm
- Length
38.5 mm
- Connection
Soldering
M4 threaded stud
- Insulation type
Insulated
- Nominal voltage
1000 V
- Connector type
Socket, built-in
- Nominal current (details)
32 A
- Connection
Threaded bolts M4 or soldered hole
- Contact material
Gold plated
- Jack diameter
4 mm
- RoHS-compliant
Yes
- Product type
Safety jack socket
Documents & Downloads
Datasheet
Datasheet 731162 Stäubli SLB4-G Safety jack socket Socket, built-in Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 731162 Stäubli SLB4-G Safety jack socket Socket, built-in Green, Yellow 1 pc(s)
Information
Information 731162 Stäubli SLB4-G Safety jack socket Socket, built-in Green, Yellow 1 pc(s)
Description
Insulated, rigid Ø 4 mm, suitable for accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass rotating part. Mounting by bolting in drillings of plates or housings made of plastic, metal, etc.
