Steinel 006532 Surface-mount PIR motion detector 360 ° White IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
73 Piece(s)
Sales and shipping:
Number
Total (€ 70.58 / piece)
€
Highlights & Details
Motion detector IS 360-3 WS
- Housing made of UV-resistant plastic
- Inconspicuous thanks to colored lens
- Continuous light: Switchable, 4 h
- Response brightness: 2-1000 lx
Technical specifications
- II protection rating
- Housing: UV-resistant plastic.
- Product type
PIR motion detector
- Detection angle
360°
24 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Operating voltage
240 V
- Switching capacity
2000 W
- Voltage (max.)
240 V
- Switching capacity (LED)
400 W W
- Switching capacity (light tubes)
2000 W
- Twilight settings
2 - 1000 lx
- Time settings
5 sec - 15 mins.
- Factory colour
White
- Similar RAL
9010
IP54
- Operating temperature
-20 °C...+50 °C
- Type
Passive infrared
- Type
IS 360-3 WS
- Length
57 mm
- Height
57 mm
- (Ø)
121 mm
- Dim
(Ø x H) 121 mm x 57 mm
- Weight
0.177 kg
- Voltage (min.)
220 V
Surface mounted (plaster)
White
Movement sensor
TRUE
57 mm
57 mm
Other
Other
AC
50-60 MHz
121 mm
Thermoplastic
200 A
Plastic
9010
IP54
FALSE
TRUE
FALSE
Documents & Downloads
Datasheet
Datasheet 1668765 Steinel 006532 Surface-mount PIR motion detector 360 ° White IP54
User & Safety Instructions
User & Safety Instructions 1668765 Steinel 006532 Surface-mount PIR motion detector 360 ° White IP54
Warranty Terms
Warranty Terms 1668765 Steinel 006532 Surface-mount PIR motion detector 360 ° White IP54
Description

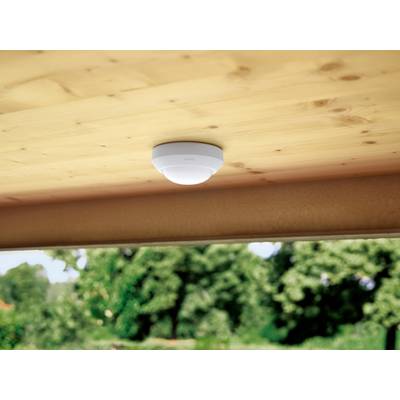

The infrared ceiling sensor, which meets all requirements, is really easy to install. Simply ingenious: Sophisticated technology, which is mounted and adjusted with a few simple steps through a clever installation concept. Thanks to its three Pyro sensors, the infrared surface sensor captures a considerable 360° and achieves a range of up to 12 m. With the help of cover plates the detection range can be adjusted as required. The IS 360-3 is available in black and white. Ideal for ceiling mounting under roof overhang, carports, large house fronts and driveways.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Motion detector
- Cover frame.
