Sygonix SY-4755360 Ceiling, Wall, Surface-mount PIR motion detector 180 ° Relay White IP65
EAN:
Part number:
Item no:
608 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€
Highlights & Details
PIR motion sensor, 180° IP65 surface-mounted
- Switching power up to 1200 W
- Three possible mounting options (wall, ceiling, outer corner) for different installation environments
- Weatherproof IP65 rating
Technical specifications
- Detection angle 180°/360°
- Detection range: Max. 12 m
- Product type
PIR motion detector
- Detection angle
180°
12 m
- Used at
Indoors
Outdoors
- Mounting type
Ceiling
Wall
Surface-mount
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity (energy saving bulbs)
600 W
- Switching capacity (light bulbs)
1200 W
- Switching capacity (LED)
600 W
- Twilight settings
3 - 2000 lx
- Factory colour
White
IP65
- Length
116 mm
- Width
76 mm
- Height
63 mm
- Dim
(L x W x H) 116 x 76 x 63 mm
- Weight
150 g
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2377680 Sygonix SY-4755360 Ceiling, Wall, Surface-mount PIR motion detector 180 ° Relay White IP65
User & Safety Instructions 2377680 Sygonix SY-4755360 Ceiling, Wall, Surface-mount PIR motion detector 180 ° Relay White IP65
Warranty Terms
Warranty Terms 2377680 Sygonix SY-4755360 Ceiling, Wall, Surface-mount PIR motion detector 180 ° Relay White IP65
Description

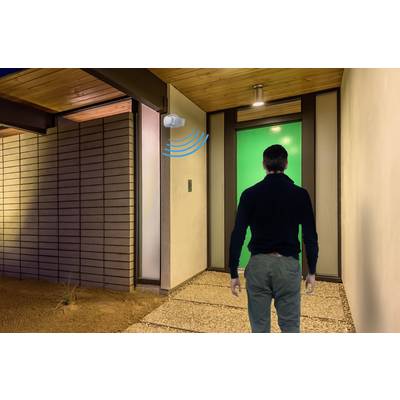

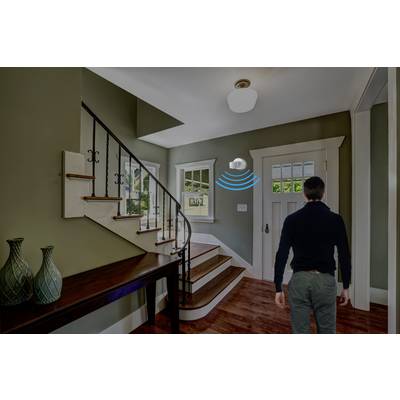

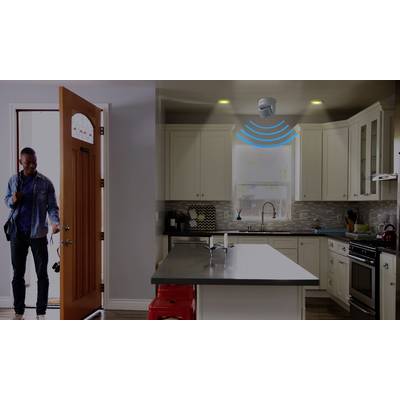

The motion detector is used for motion detection in indoor and outdoor areas. It can be installed very easily in entrance areas, driveways or stairwells. It is reliably protected according to IP65.To optimally illuminate certain areas, connect the motion detector to a light, for example. The lamp is automatically switched on and off via the built-in PIR sensor. The sensors react to temperature changes within the detection range. This is the case, for example, when a person or an animal whose temperature differs from the ambient temperature enters the detection area.
This text is machine translated.
This text is machine translated.
Features
- Infrared motion sensor
- For incandescent bulbs, energy-saving lamps and LED lights
- Coverage angle: 180°/360°
- Detection distance: max. 12m
Scope of delivery
- Sensor with mount
- 2x Screws
- 2x Dowels
- User manual
