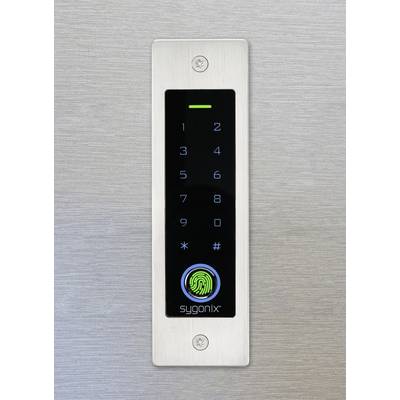

Sygonix SY-5231014 Fingerprint/RFID access system Flush mount 12 V DC, 18 V DC IP55 + backlit keypad
EAN:
Part number:
Item no:
114 Piece(s) (Only while stocks last)
Sales and shipping:
Number
Total (€ 68.90 / piece)
€
Highlights & Details
RFID/Touch/Fingerprint Access S
- Vandal-proof stainless steel housing
- Access with PIN, card or fingerprint
- 1000 users (990 general users + 10 visitor users)
Technical specifications
- No. of codes/combinations
1000
- LEDs
1 pc(s)
IP55
- Weight
201 g
- Dim
(W x H x D) 52 x 168 x 32 mm
- Factory colour
Black
Stainless steel
- Depth
32 mm
- Height
168 mm
- Width
52 mm
- Features
+ backlit keypad
- Triggered by
Fingerprint
Numerical code
Transponder
- Mounting type
Flush mount
- Operating voltage
12 V DC
18 V DC
- Plastic free packaging
Plastic-free packaging
- Product type
Fingerprint/RFID access system
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2615507 Sygonix SY-5231014 Fingerprint/RFID access system Flush mount 12 V DC, 18 V DC IP55 + backlit keypad
User & Safety Instructions 2615507 Sygonix SY-5231014 Fingerprint/RFID access system Flush mount 12 V DC, 18 V DC IP55 + backlit keypad
Warranty Terms
Warranty Terms 2615507 Sygonix SY-5231014 Fingerprint/RFID access system Flush mount 12 V DC, 18 V DC IP55 + backlit keypad
Description

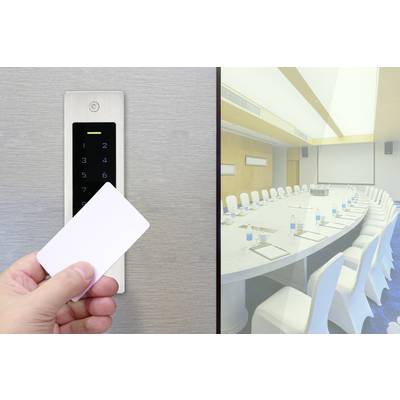

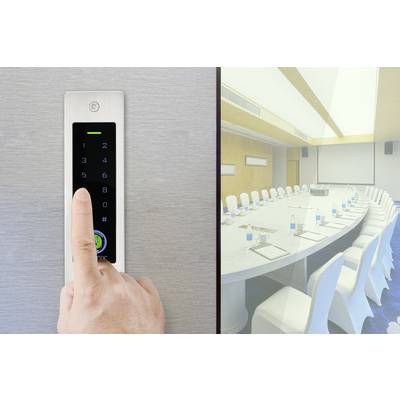

No access for unauthorized personsHigh-quality technology is concealed under the vandalism-protected metal housing of Sygonix electronic access control: A programmable relay, pulse or toggle mode as well as a Wiegand 26/44 interface, can be used as controller or reader.Various access optionsUp to 1,000 users, 10 of whom are visitors, can receive access authorizations via PIN, card or fingerprint. For easier use in low light conditions, the keypad is equipped with illumination.Supplied with mounting accessoriesEverything necessary for the installation is included in the delivery package. 30 cm cable for access control as well as screws, plugs, plastic mounting box, diode and manual.
This text is machine translated.
This text is machine translated.
Features
- Programmable relay
- Pulse or toggle mode
- Tri-color LED indicators
- Wiegand 26~44 bits input & output for use as a controller or Wiegand reader
- Illuminated keypad
- 125 kHz transponder reader

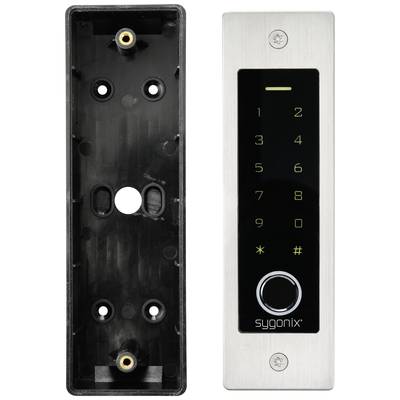

Scope of delivery
- Access control
- Plastic assembly box
- 2 x Screws, with L-key
- 4 x Screws
- 4 x Dowels
- 4 x Screw cover stickers
- diode
- Manual
