Buy T.I.P. - Technische Industrie Produkte 30171 Extrema 500/13 IX Effluent sump pump 30000 l/h 13 m

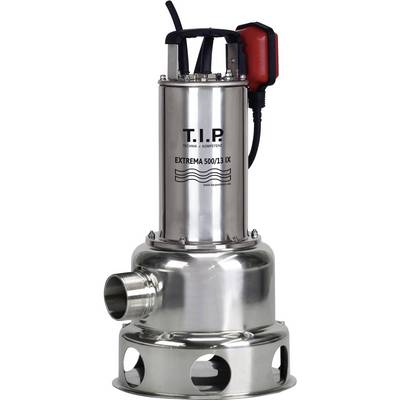

Stainless steel submersible pump with side outlet and red cable connection. Model name 'EXTREMA 500/13 IX' by T.I.P.

38 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 293.28 / piece)

€

Report legal concerns

Highlights & Details

Waste water submersible pump extremes 500/13 IX

Maximum flow 30,000 l/h
Maximum pump lift: 13 m
Max. solids size 45 mm

Technical specifications

Minimum suction level: 65 mm

Product type: Effluent sump pump

Max. delivery head: 13 m

Max. feed rate: 30000 l/h

Max. discharge pressure: 1.3 bar

Operating voltage: 230 V

Power consumption (P1): 1800 W

Pressure connection: 59.62 mm (2") OT

Max. size of solids: 45 mm

Immersion depth: 7 m

Max. cable length: 10 m

Float switch: Yes

Overload protection: Yes

Length: 252 mm

Width: 252 mm

Height: 480 mm

Dim: (L x W x H) 252 x 252 x 480 mm

Weight: 14 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1457915 T.I.P. - Technische Industrie Produkte 30171 Extrema 500/13 IX Effluent sump pump 30000 l/h 13 m

Warranty Terms

Warranty Terms 1457915 T.I.P. - Technische Industrie Produkte 30171 Extrema 500/13 IX Effluent sump pump 30000 l/h 13 m

Description

The extremes 500/13 IX has a particularly high-quality design and technology: pump housing completely made of stainless steel, water-cooled motor and self-lubricating precision ball bearings make this pump continuous operation and extremely durable. This pump is absolutely top class enables high
Displacement and is also suitable for grain sizes of up to 45 mm. Also for the transport of liquids with higher temperature in normal operation up to 50 °C, short-term (approx. 4 min) even up to 95°C.

This text is machine translated.
