T.I.P. - Technische Industrie Produkte 30307 SPF 180 Pool filtration system 4500 l/h 6 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€
Only 4 Piece(s) available
Highlights & Details

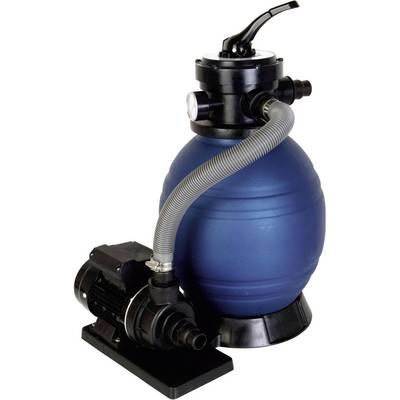

Sand filter swimming pool pump SPF 180
- Max. Pump flow 7900 l/hMax. lifting height 6 mSandfilter flow: 4,500 l/h. Power 250 WRecommended basin size: 20 m³

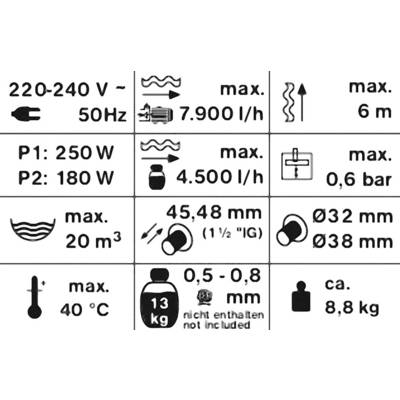

Technical specifications
- Fluid Temperature: 40°C
- Coolant temperature min: 5°C
- Connection cable H07RN-F 3G 1.0 mm²
- Operating voltage
230 V
- Max. feed rate
4500 l/h
- Max. delivery head
6 m
- Hose connector
44.9 mm (1 1/2") IT
- Pressure connection
44.9 mm (1 1/2") IT
- Power (P2)
180 W
- Power consumption (P1)
250 W
- Max. cable length
1.9 m
IPX5

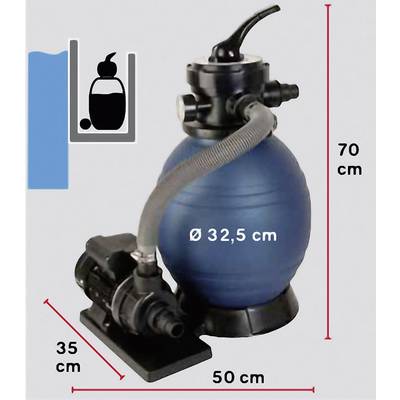

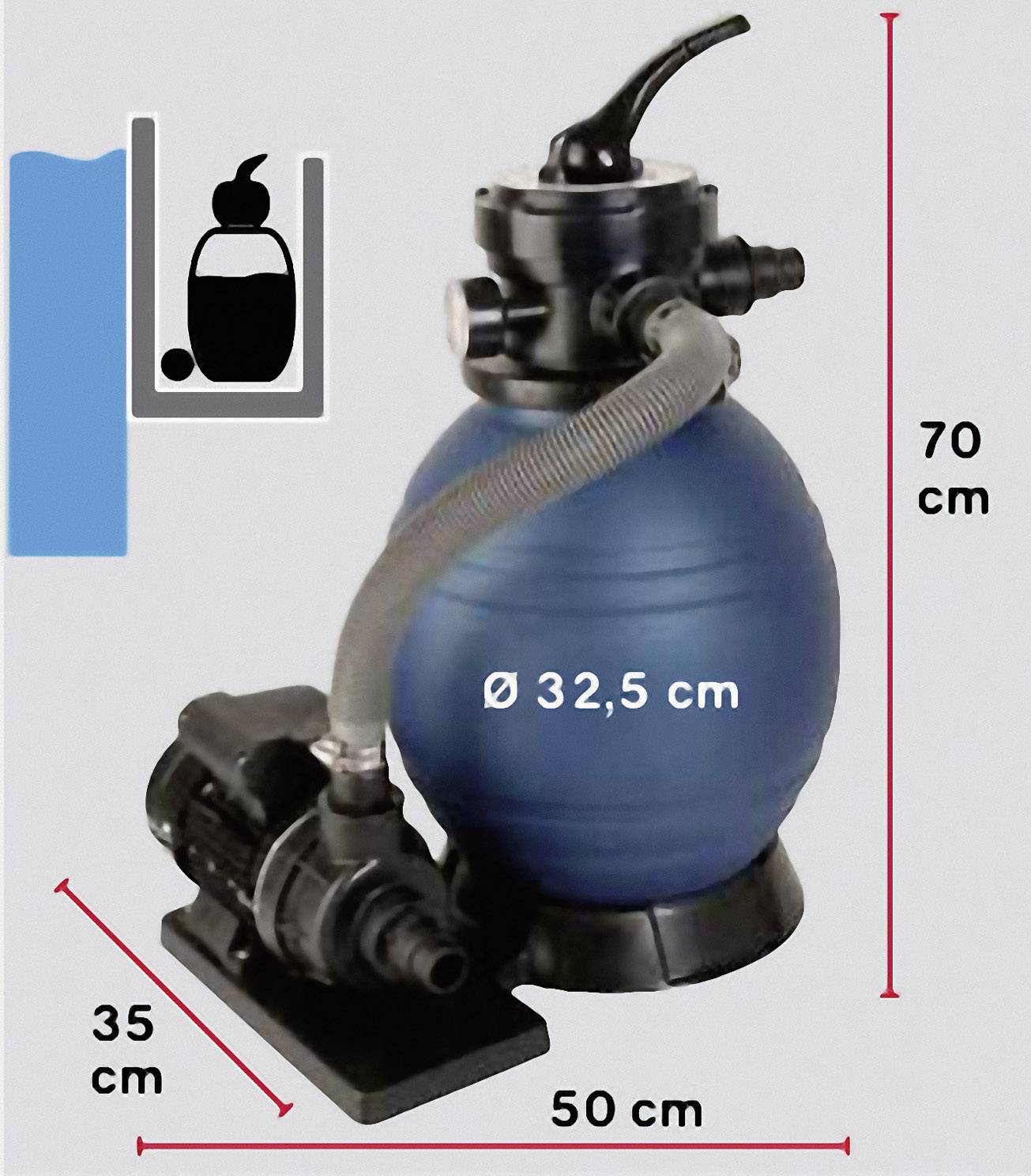

- Length
50 cm
- Width
35 cm
- Height
64 cm
- Dim
(L x W x H) 50 x 35 x 64 cm
- Weight
4 kg
- Product type
Pool filtration system
Documents & Downloads
Datasheet
Datasheet 1165435 T.I.P. - Technische Industrie Produkte 30307 SPF 180 Pool filtration system 4500 l/h 6 m
User & Safety Instructions
User & Safety Instructions 1165435 T.I.P. - Technische Industrie Produkte 30307 SPF 180 Pool filtration system 4500 l/h 6 m
Warranty Terms
Warranty Terms 1165435 T.I.P. - Technische Industrie Produkte 30307 SPF 180 Pool filtration system 4500 l/h 6 m
Description

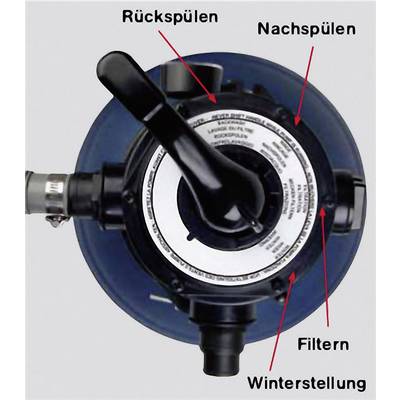

The Swimming Pool Filter Set consists of a pump and a sand filter with the following features: Filters, rewind (cleaning of the filter), after coils (elimination of sulfur best openly in the sand), winter position (on the discharge of the seals). The handling is done via a 4-way valve. The recommended operating time is 8 to 9 hours per day. The set provides for water clarity in a swimming pool with efficient use of energy. The system can be quickly assembled and installed. The cleaning of the sand filter is easy. The pump works in the feed operation. The inlet port of the pump should be at least 30 cm below the water level from the swimming pools.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Swimming pool pump SPF 180
- Sand filter tank including base plate
- 4-way valve
- Connection and installation accessories
- User manual.
Hints
13 kg of filter quartz sand with a grain size of 0.5 - 1.2 mm are required for commissioning. The filter sand is not included in the delivery and is absolutely necessary for use.
