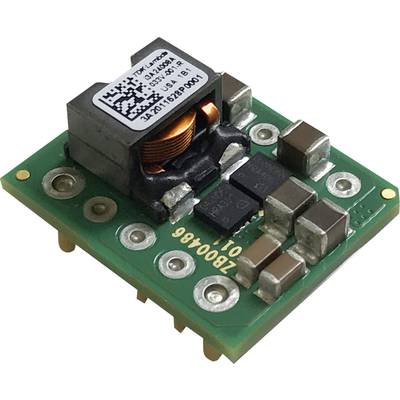

TDK-Lambda i3A4W008A033V-001-R DC/DC converter 8 A 100 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€
Highlights & Details
DC DC Converters
- Non-insulated buck converter
- 100 W in 1/32 brick design
- Very high efficiency up to 98%
- Output voltage adjustable (3.3 to 16.5 V DC or 5 to 30 V DC)
- Requires only a minimum of external components
Technical specifications
- Product type
DC/DC converter
- Type
i3A4W008A033V-001-R
- Min. input voltage
9 V
- Input voltage (max.)
53 V
- Max. output current
8 A
- Output current (max.) - rounded
8 A
- Efficiency (max.)
96.5 %
100 W
- Connection
Print
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+125 °C
- Dim
(L x W x H) 19.1 x 23.4 x 9.6 mm
- Height
9.6 mm
- Length
19.1 mm
- Width
23.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
16.5 V
- Output voltage (min.)
3.3 V
- Weight
8 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2255881 TDK-Lambda i3A4W008A033V-001-R DC/DC converter 8 A 100 W Content 1 pc(s)
Warranty Terms
Warranty Terms 2255881 TDK-Lambda i3A4W008A033V-001-R DC/DC converter 8 A 100 W Content 1 pc(s)
Description
The i3A DC-DC converters are ideal for branching further voltages with high nominal current from a 12, 24, 36 or 48 V standard power supply. With up to 98% efficiency, they work extremely efficiently and generate hardly any heat loss. Typical applications are found in medical or telecom applications as well as in industry or test and measurement technology. Thanks to a sophisticated thermal design, its derating is very low, even at low air flow and high ambient temperatures. A control behavior optimized for dynamic current changes saves external capacitors in many cases and thus saves space on the circuit board.
