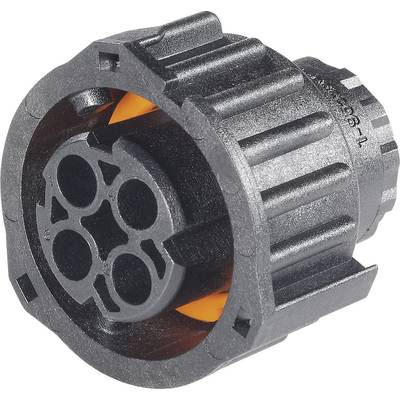

TE Connectivity 1-968968-1 Bullet connector Socket, straight Total number of pins: 4 Series (round connectors): DIN 7258
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connector type
Socket, straight
- Total no. of pins
4
- Connection
Crimp
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
30 A
- Min. temperature
-40 °C
- Nominal current - rounded value
30 A
- Seal
Bayonet (secondary lock)
- Nominal voltage
230 V
IP69/IP69K
- Series
DIN 72585
- Manufacturer part #
1-968968-1
- Type
1-968968-1
- Number of pins
4
- Connection angle
180°
- RoHS-compliant
Yes
- Product type
Bullet connector
Documents & Downloads
Datasheet
Datasheet 1005688 TE Connectivity 1-968968-1 Bullet connector Socket, straight Total number of pins: 4 Series (round connectors): DIN 7258
Information
Information 1005688 TE Connectivity 1-968968-1 Bullet connector Socket, straight Total number of pins: 4 Series (round connectors): DIN 7258
Description
These connectors are characterized by efficient processing, high stress and excellent electrical properties. Easy application, connector for single hole mounting provided.
Typical application: sensors, solenoid valves or power supply.
Typical application: sensors, solenoid valves or power supply.
