TE Connectivity 206036-1 Bullet connector Sleeve socket Total number of pins: 16 Series (round connectors): CPC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€
Highlights & Details

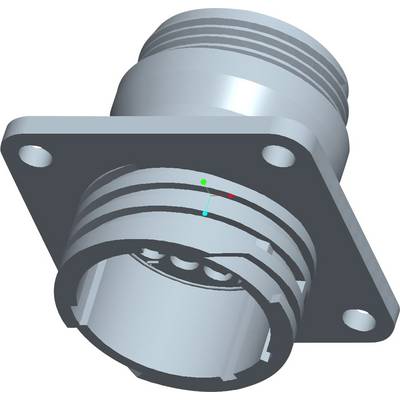

CPC Socket casing with rectangular flange
Technical specifications
- Connector type
Sleeve socket
- Total no. of pins
16
- Connection
Crimp
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+125 °C
- Nominal current
13 A
- Min. temperature
-55 °C
- Nominal current - rounded value
13 A
- Seal
Thread: 15/16 20 UNEF-2A
- Nominal voltage
600 V
- Case material
Thermoplastic UL94V-1
- Contact size
16
- Series
CPC
- Manufacturer part #
206036-1
- Type
206036-1
- Material (details)
Polyester (Ul94 V-0)
- Number of pins
16
- Nominal voltage (details)
600 V AC
- Nominal current (details)
See data sheet
- Connection angle
180°
- Code
A
- Temperature range
-55 - +125 °C
- RoHS-compliant
Yes
- Product type
Bullet connector
Documents & Downloads
Datasheet
Datasheet 1341072 TE Connectivity 206036-1 Bullet connector Sleeve socket Total number of pins: 16 Series (round connectors): CPC 1 pc(s)
Datasheet 1341072 TE Connectivity 206036-1 Bullet connector Sleeve socket Total number of pins: 16 Series (round connectors): CPC 1 pc(s)
Information
Information 1341072 TE Connectivity 206036-1 Bullet connector Sleeve socket Total number of pins: 16 Series (round connectors): CPC 1 pc(s)
Information 1341072 TE Connectivity 206036-1 Bullet connector Sleeve socket Total number of pins: 16 Series (round connectors): CPC 1 pc(s)
Description
Scope of delivery
- Without contact
