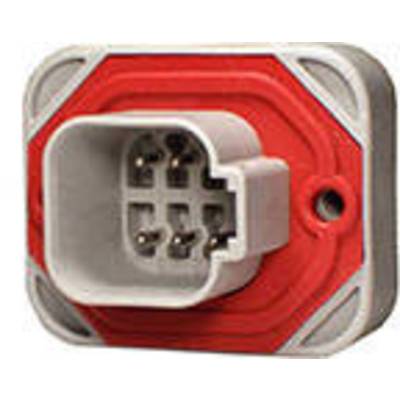

TE Connectivity DT15-6P Bullet connector Plug, straight Total number of pins: 6 Series (round connectors): DT 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
36 Piece(s)
Sales and shipping:
Number
Total (€ 12.60 / piece)
€ 13.44
-6 %
€
Technical specifications
- Connector type
Plug, straight
- Total no. of pins
6
- Connection
Soldering
- Factory colour
Grey
- Content
1 pc(s)
- Max. temperature
+100 °C
- Nominal current
13 A
- Min. temperature
-40 °C
- Nominal current - rounded value
13 A
- Cable Ø (max.)
3.68 mm
- Cable Ø up to
1.35 mm
- Case material
Thermoplastic material
- Cable Ø range
1.35 - 3.68 mm
- Cross-section range
2 mm² (max)
IP68
- Series
DT
- Manufacturer part #
DT15-6P
- Type
DT15-6P
- max. cross section
2 mm²
- Number of pins
6
- Connection angle
180°
20 - 14
- RoHS-compliant
Yes
- Product type
Bullet connector
Documents & Downloads
Datasheet
Datasheet 1429425 TE Connectivity DT15-6P Bullet connector Plug, straight Total number of pins: 6 Series (round connectors): DT 1 pc(s)
Description
Connector consists of housing, contacts and fuse wedge.
This text is machine translated.
This text is machine translated.
Hints
Contacts and fuse wedge not included in the delivery.
