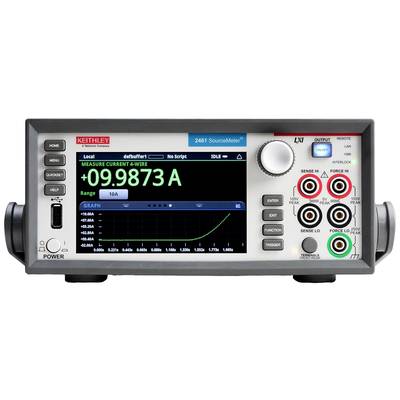

Tektronix 2461 Bench PSU (adjustable voltage) 100 V (max.) 7 A (max.) 100 W GPIB, USB programmable

The 2461 High Current SourceMeter® Source Measure Unit (SMU) instrument brings the advanced touch, test, Invent® technology directly to your fingertips. It combines an innovative graphical user interface (GUI) with capacitive touch-screen technology to make testing intuitive and minimize learning curve, so engineers and scientists can learn faster, work smarter and invent easier. With its 10 A/1000 W pulse current and 7 A/100 W DC power capability in combination with two 18-bit 1MS/s digitizers, the 2461 is optimized for characterization and testing of high-performance materials, devices and modules such as silicon carbide (SiC), gallium nitride (GaN), DCDC converters, circuit protectors, solar cells and panels, bright LEDs and lighting systems, electrochemical cells and batteries and much more. These new features, combined with Keithley's expertise in high-precision and high-precision SMU instruments, make the 2461 a "go-to-instrument" for high-current and high-speed measurement applications in the laboratory and rack for years to come.
