Buy Tektronix MDO32 3-BW-500 Digital 500 MHz 2.5 GS/s 10 MP 8 Bit 1 pc(s)

An oscilloscope with a displayed waveform diagram and several control elements on the right side for measurement adjustments.

A person is working with an oscilloscope on a circuit board in a laboratory. They are checking electronic circuits.

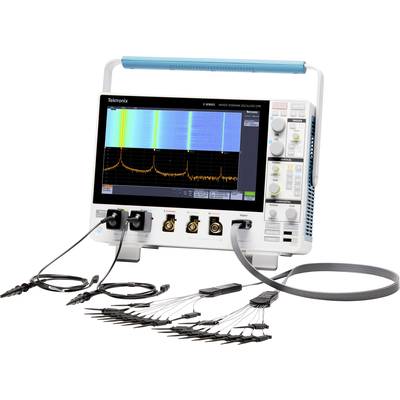

A digital oscilloscope with a screen displaying a complex waveform, along with various settings and ports.

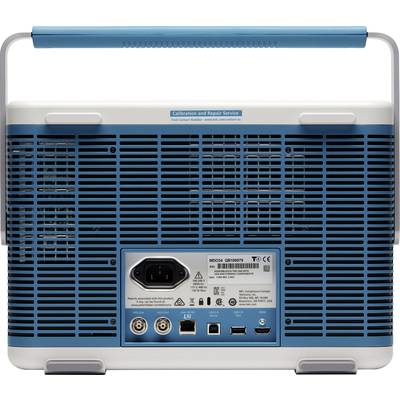

Back of a blue and white electronic device with ventilation slots, connection sockets, and a power inlet.

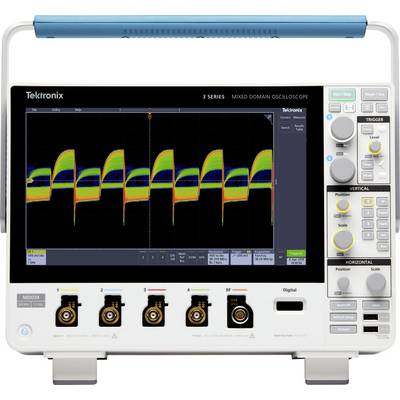

An oscilloscope displays a waveform with multiple periodic signals on a colour display. Control elements for adjustment are visible.

1/5

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 12,693.28 / piece)

€

Report legal concerns

Highlights & Details

Tektronix MDO32 3-BW-500 Digital 500 MHz 2.5 GS/s 10 MP 8 Bit 1 pc(s)

500 MHz
No. of analogue inputs 2

Technical specifications

Digital channels optional

Displays: 11.6” HD (1920x1080) touch screen

Screen size: 11.6"

Time base: 800 hp

Input impedance: 50 Ω

Dim: (L x W x H) 149 x 370 x 252 mm

Weight: 5.3 kg

Height: 252 mm

Length: 149 mm

Width: 370 mm

Display: 1920 x 1080 LCD display

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Interfaces: Ethernet
USB device
USB host

Type: MDO32 3-BW-500

Bandwidth: 500 MHz

Channel memory depth: 10 MP

Resolution: 8 Bit

Channel sample rate: 2.5 GS/s

Product type: Digital

Documents & Downloads

Datasheet

Datasheet 2112010 Tektronix MDO32 3-BW-500 Digital 500 MHz 2.5 GS/s 10 MP 8 Bit 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2112010 Tektronix MDO32 3-BW-500 Digital 500 MHz 2.5 GS/s 10 MP 8 Bit 1 pc(s)

Description

The MDO 3 series from Tektronix offers a powerful oscilloscope with its large, intuitive display and numerous upgrade options for a wide range of applications.

This text is machine translated.

Features

Numerous upgrades possible (spectrum analyzer, frequency generator, digital channels, digital voltmeter etc.)
Sampling rate, typical:˃280,000 wfm/s.
This text is machine translated.
