Tektronix MSO22 2-BW-200 Digital 200 MHz 1.25 GS/s 8 Bit 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 3,419.33 / piece)
€
Highlights & Details
Tektronix MSO22 2-BW-200 Digital 200 MHz 1.25 GS/s 8 Bit 1 pc(s)
- 200 MHz
- No. of analogue inputs 2
Technical specifications
- Screen size
10.1 inch
- Power supply (details)
230 V AC
- Dim
(L x W x H) 344 x 210 x 40.4 mm
- Weight
1800 g
- Height
40.4 mm
- Length
344 mm
- Width
210 mm
- Display
1280 x 800 p
- No. of analogue inputs
2
Manufacturer's standards (no certificate)
- Type
MSO22 2-BW-200
- Bandwidth
200 MHz
- Resolution
8 Bit
- Channel sample rate
1.25 GS/s
- Product type
Digital
Documents & Downloads
Datasheet
Datasheet 2585666 Tektronix MSO22 2-BW-200 Digital 200 MHz 1.25 GS/s 8 Bit 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2585666 Tektronix MSO22 2-BW-200 Digital 200 MHz 1.25 GS/s 8 Bit 1 pc(s)
Description

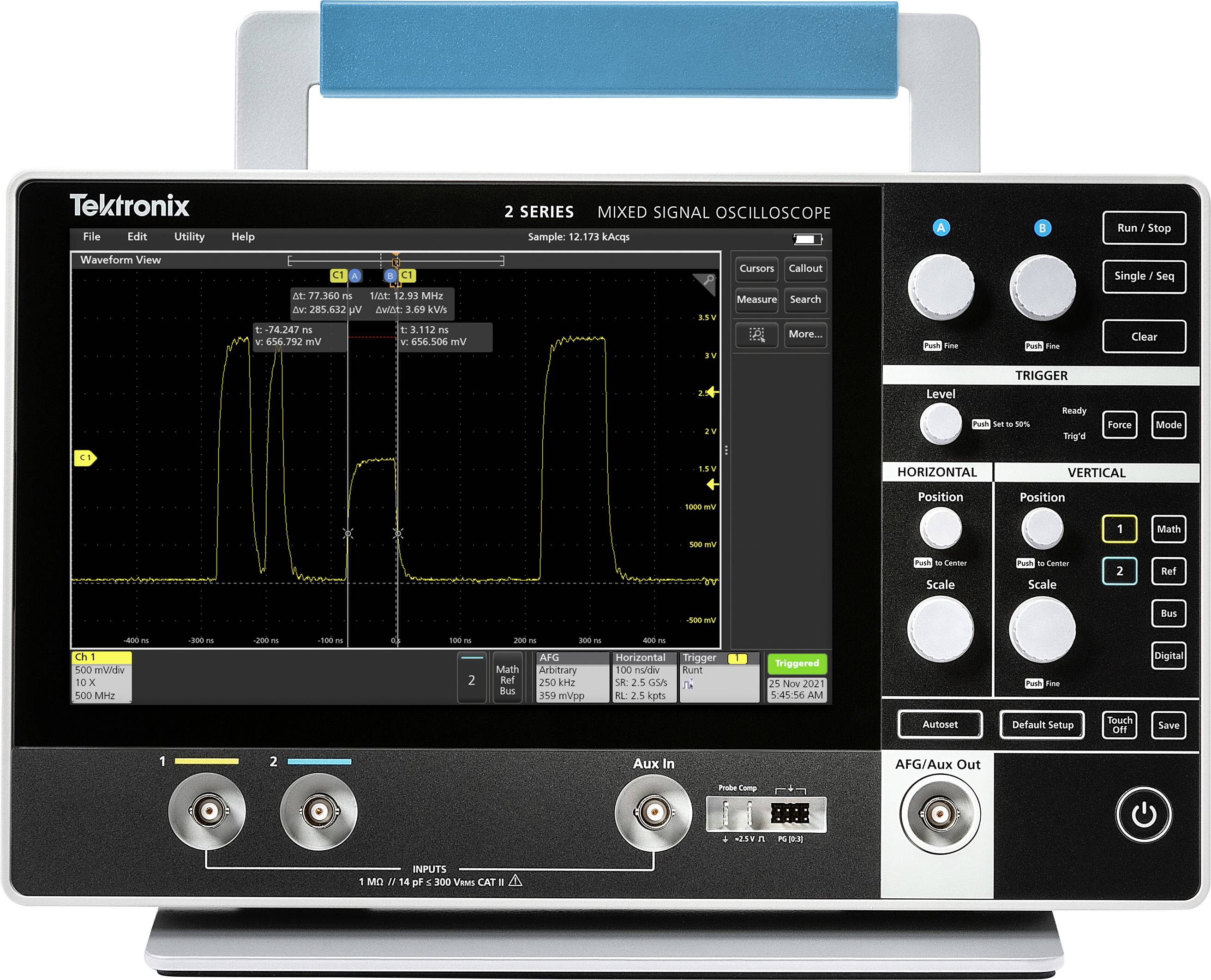

Compact, versatile oscilloscope for daily troubleshooting. With a capacitive touch screen and an extremely intuitive user interface specially designed for touch, the MSO Series 2 is part of Tektronix' award-winning next-generation oscilloscopes family. The common user interface and programmatic interface make it easy to use all Tektronix next-generation oscilloscopes. An extensive catalog of compatible probes and a rounded accessory program make the MSO Series 2 the most powerful and versatile device in its class, suitable for a wide range of applications.Intuitive touch screen with simplified control panel. The MSO Series 2 offers the same award-winning user interface as Tektronix' top-of-the-line oscilloscopes and supports touch interactions you expect from a touch-enabled consumer device. The simplified front panel contains the most important buttons and buttons with color-coded LED ring lights, which enable quick access and easy setting of the most commonly used device settings.
