Tektronix MSO24 2-BW-500 + MSO24 2-P6139B Digital 500 MHz 1.25 GS/s 8 Bit 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 12,189.08 / piece)
€
Highlights & Details
Tektronix MSO24 2-BW-500 + MSO24 2-P6139B Digital 500 MHz 1.25 GS/s 8 Bit 1 pc(s)
- 500 MHz
- No. of analogue inputs 4
Technical specifications
- Screen size
10.1 inch
- Power supply (details)
230 V AC
- Dim
(L x W x H) 344 x 210 x 40.4 mm
- Height
40.4 mm
- Length
344 mm
- Width
210 mm
- Display
1280 x 800 p
- No. of analogue inputs
4
Manufacturer's standards (no certificate)
- Type
MSO24 2-BW-500 + MSO24 2-P6139B
- Bandwidth
500 MHz
- Resolution
8 Bit
- Channel sample rate
1.25 GS/s
- Product type
Digital
Documents & Downloads
Datasheet
Datasheet 2585649 Tektronix MSO24 2-BW-500 + MSO24 2-P6139B Digital 500 MHz 1.25 GS/s 8 Bit 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2585649 Tektronix MSO24 2-BW-500 + MSO24 2-P6139B Digital 500 MHz 1.25 GS/s 8 Bit 1 pc(s)
Description

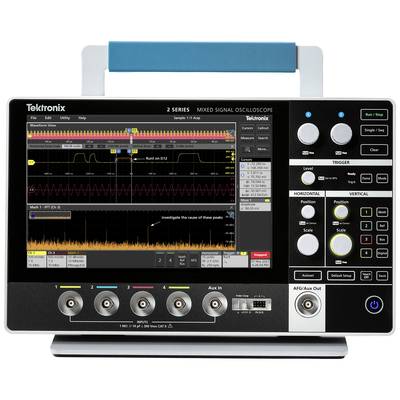

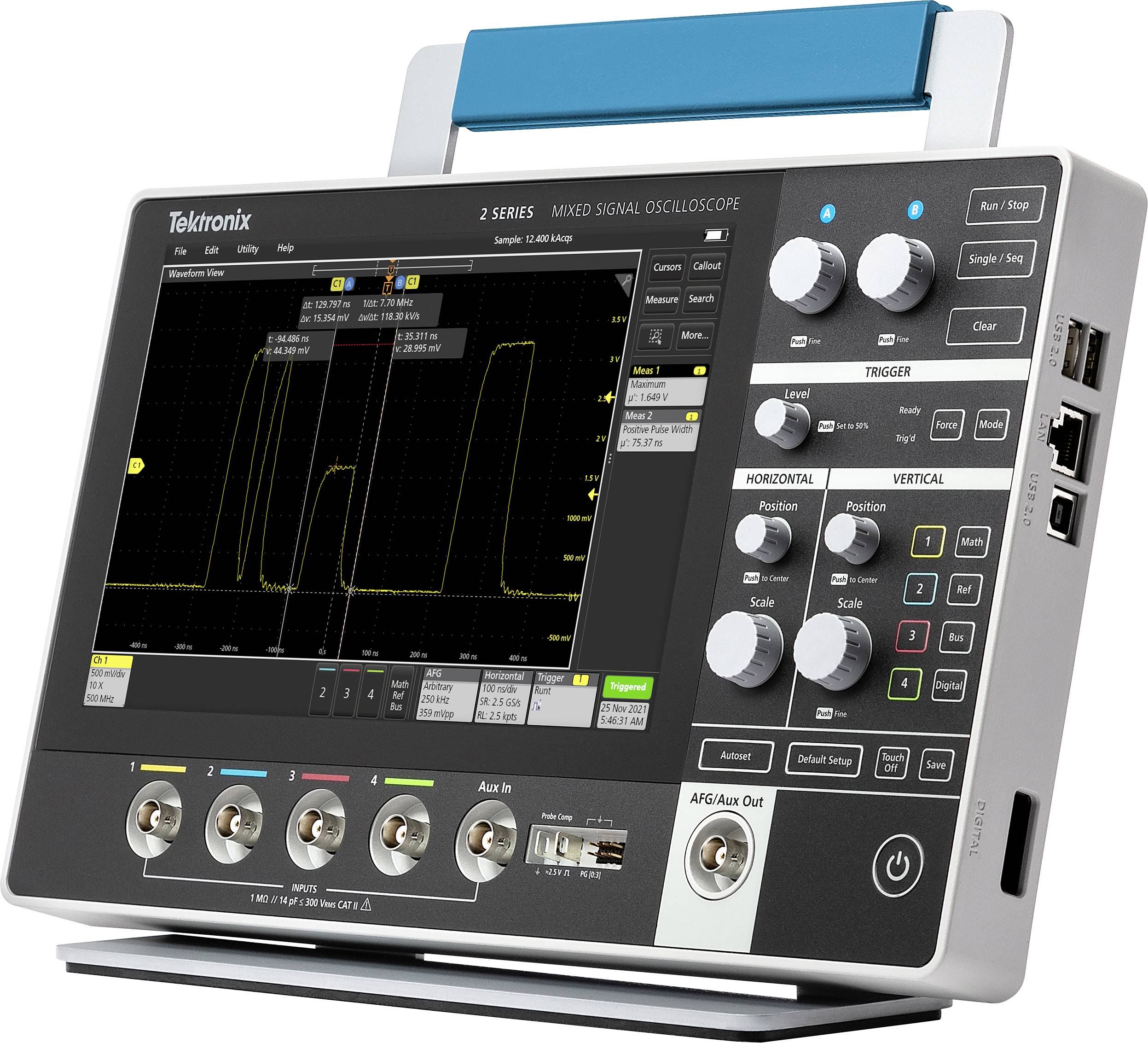

Compact, versatile oscilloscope for daily troubleshooting. A large, high-resolution, capacitive touch display provides a class-leading relationship between the screen and the housing. Passive voltage probes are included as standard with most oscilloscopes and are a cost-effective multi-purpose probe solution. In general, the performance of these probes is lower than that of an active voltage probe. However, they have the robustness and the wide dynamic range, which make them ideal for visualizing signals in a variety of applications. Tektronix has revolutionized the passive probe category with its new class of passive probes.
This text is machine translated.
This text is machine translated.
Features
- Passive voltage probeBest bandwidth of up to 1 GHzMinimum load impact of the probe head through the industry's best input capacity of surprisingly low 3.9 pFMinimal power losses when using long ground conductors thanks to the industry's best input capacityAutomated probe compensation, which means that no compensation screwdriver is needed any more300 V CAT II DYNAMIC RANGEBandwidth: 500 MHzInput impedance at probe tip: 10 MΩ, 8 pFCable length: 1,3 m
