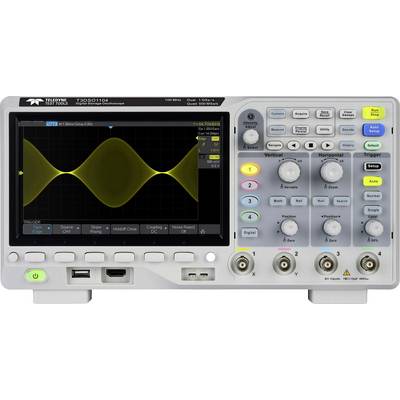

Teledyne LeCroy T3DSO1104 Digital 100 MHz 1 GS/s 14 MP 8 Bit Digital storage (DSO) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,130.25 / piece)
€
Highlights & Details
T3 DSO 1104 oscilloscope
- 100 MHz
- No. of analogue inputs 4
- 100 MHz, 200 MHz bandwidth models
- New generation of high-speed display technology:
- • Waveform Capture rate up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
- • Supports 256-stage intensity degree order picking and color display modes recording length up to 14 Mpts
- • Digital release system
- Triggering and decoding via serial bus (Standard), supported protocols IIC, SPI, UART, RS232, CAN, LIN
- Video trigger, Supports HDTV
- Low background noise due to voltage scales of 500 μV/div to 10 V/div
- History waveform recording (History) function, Maximum of the recorded waveform length is 80,000 images.
Technical specifications
- Displays
TFT-LCD 800 x 480 pixels
- Screen size
17,78 cm
- Time base
1.0 ns/div - 100 s/div
- Vertical deflection
500 μV/DIV - 10 V/div
- Input impedance
1 MΩ
- Input coupling
DC AC GND
- Input voltage
240 V
- Power supply (details)
100-240 VAC 50/60/400 Hz
- Dim
(L x W x H) 151 x 312 x 132.6 mm
- Weight
3.8 kg
- Height
132.6 mm
- Length
151 mm
- Width
312 mm
- Display
TFT-LCD 800 x 480 p
- No. of analogue inputs
4
Manufacturer's standards (no certificate)
- Interfaces
USB device
USB host
LAN
- Reading category
CAT II
- Oscilloscope features
Digital storage (DSO)
- Type
T3DSO1104
- Bandwidth
100 MHz
- Channel memory depth
14 MP
- Resolution
8 Bit
- Channel sample rate
1 GS/s
- Product type
Digital
Documents & Downloads
Datasheet
Datasheet 1846074 Teledyne LeCroy T3DSO1104 Digital 100 MHz 1 GS/s 14 MP 8 Bit Digital storage (DSO) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1846074 Teledyne LeCroy T3DSO1104 Digital 100 MHz 1 GS/s 14 MP 8 Bit Digital storage (DSO) 1 pc(s)
Description
The new Teledyne Test Tools T3DSO1000 oscilloscopes feature 2 and 4-channel models. The 2-channel model is equipped with 100 MHz analogueue bandwidth, a single ADC, a maximum sampling rate of 1 GSa/s and a single memory module with 14 Mpts sample memory. The 4-channel models are available in 100 and 200 MHz versions and include two 1 GSa/s ADCs and two 14 Mpts memory modules. When all channels are enabled, each channel has a sampling rate of 500 MSA/s and a standard record length of 7 Mpts. If only one single channel per ADC is active, the maximum sampling rate is 1 GSa/s and the maximum recording length is 14 Mpts. For easy operation, the most commonly used functions are accessible through the user-friendly front panel design.
The product comes standard with the I2C, SPI, UART, RS232, CAN, and LIN serial bus triggering and decoding options.
This text is machine translated.
The product comes standard with the I2C, SPI, UART, RS232, CAN, and LIN serial bus triggering and decoding options.
This text is machine translated.
Features
- 10 types of one-button-Shortcuts, Supports Auto Setup, Standard, Cursor, dimensions, role, history, display/persist, Clear Sweep, zoom and print.
