Buy Teledyne LeCroy T3DSO1204HD Digital 200 MHz 4-channel 2 GS/s 200 MP Digital storage (DSO) 1 pc(s)

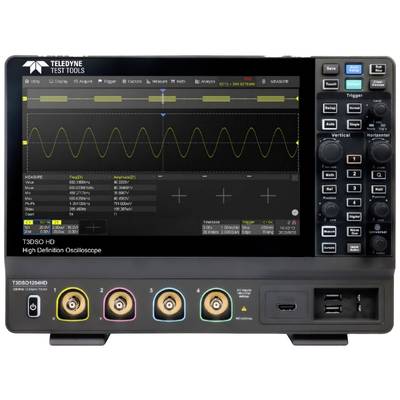

A oscilloscope with a wave-form display on the screen and controls on the right-hand side, model 'Teledyne T3DSO HD'.

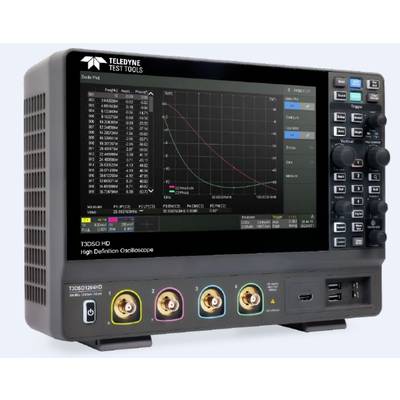

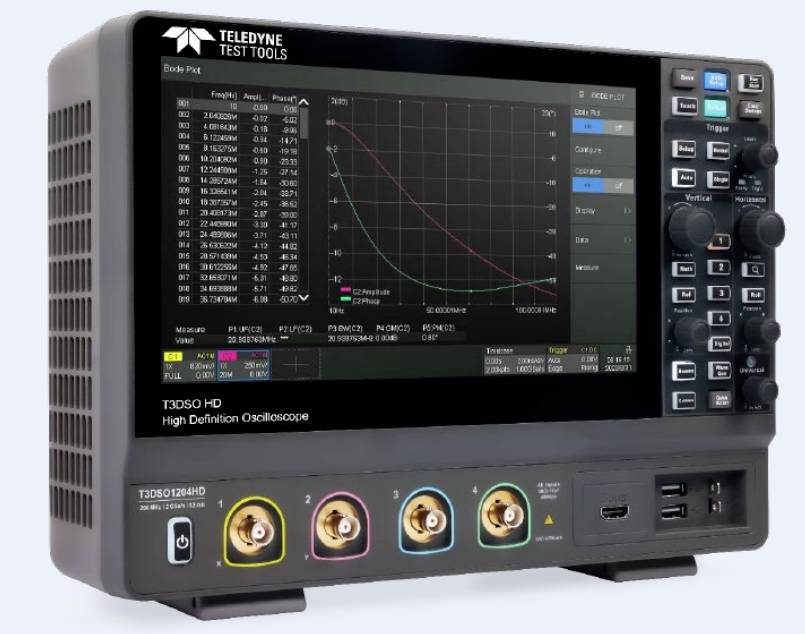

An oscilloscope shows a graphical screen with various data curves and parameters. It measures electrical signals.

1/2

Datasheet (PDF)

3 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 2,385.71 / piece)

€

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

Teledyne LeCroy, 200 MHz, 2 GS/s per channel, 2 GS/s interleaved, 4 channels, 200 Mpts/Ch HD DSO with 10.1" color display

200 MHz
No. of analogue inputs 4

Technical specifications

Product type: Digital

Bandwidth: 200 MHz

Channel sample rate: 2 GS/s

Displays: TFT LCD 1024 x 600 pixels

Screen size: 25,65 cm

Oscilloscope features: Digital storage (DSO)

No. of analogue inputs: 4

: Manufacturer's standards (no certificate)

Input coupling: DC AC GND

Input voltage: 240 V

Dim: (L x W x H) 317.20 x 149 x 236 mm

Weight: 4.1 kg

Display: TFT LCD 1024 x 600 pixels

Width: 149 mm

Height: 236 mm

Length: 317.20 mm

Channel memory depth: 200 MP

Type: T3DSO1204HD

Documents & Downloads

Datasheet

Datasheet 3206856 Teledyne LeCroy T3DSO1204HD Digital 200 MHz 4-channel 2 GS/s 200 MP Digital storage (DSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3206856 Teledyne LeCroy T3DSO1204HD Digital 200 MHz 4-channel 2 GS/s 200 MP Digital storage (DSO) 1 pc(s)

Description

The Teledyne LeCroy T3DSO1000HD Series oscilloscopes are 12-bit high-definition oscilloscopes available in 4-channel bandwidths of 100 MHz and 200 MHz. The series of oscilloscopes are available as DSO-only models with an optional 16-channel logic probe that offers MSO capabilities. All oscilloscopes are standard equipped with all trigger/decoder and analysis software. This provides customers with a comprehensive analysis tool for their design and verification requirements. A really cost-effective 12-bit oscilloscope with high resolution and many functions, each with a large 10.1" color touch-screen display.

This text is machine translated.
