Buy Telegärtner 100007468 STX V5 RJ45 connector set version 5 100007468 Plug, straight Pins: 8P8C Aluminium 1 pc(s)

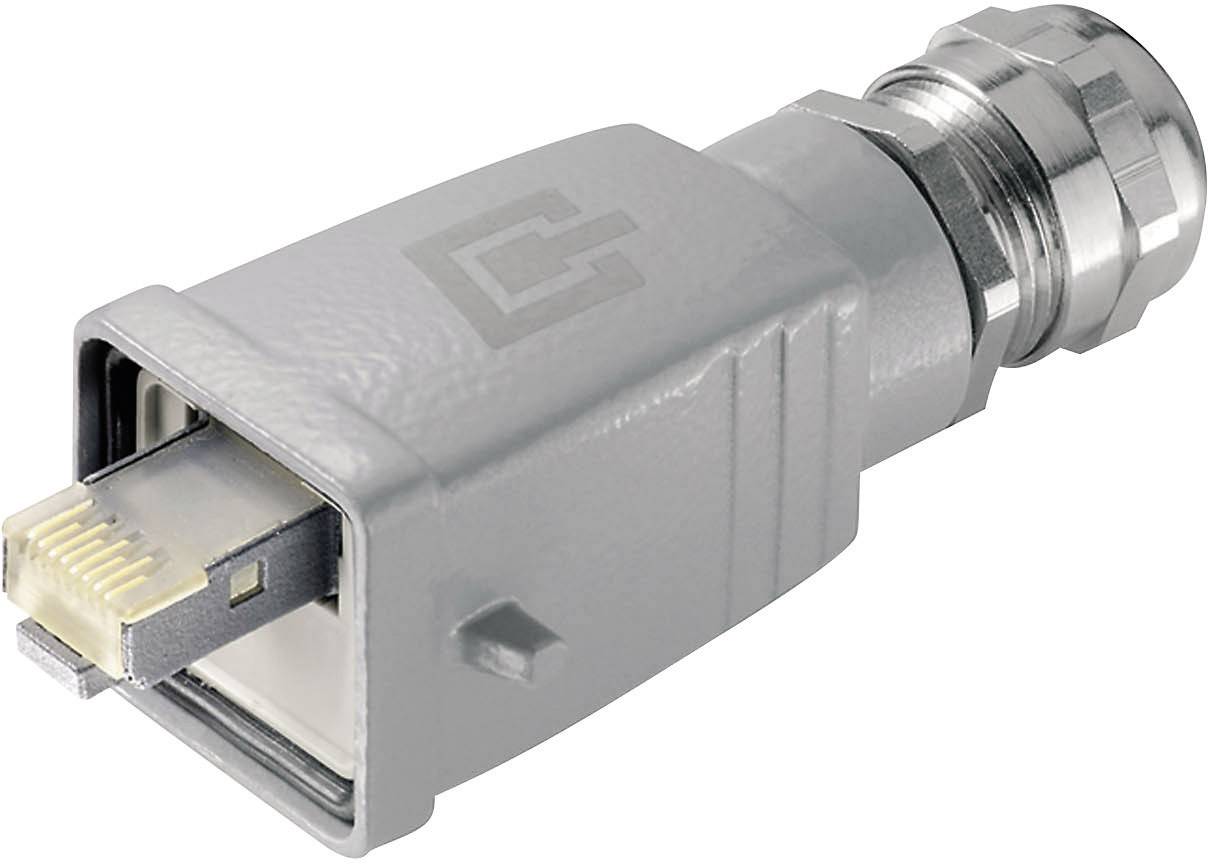

A grey RJ45 plug with housing and screw lock, commonly used for industrial networks, lies on a white background.

Image similar

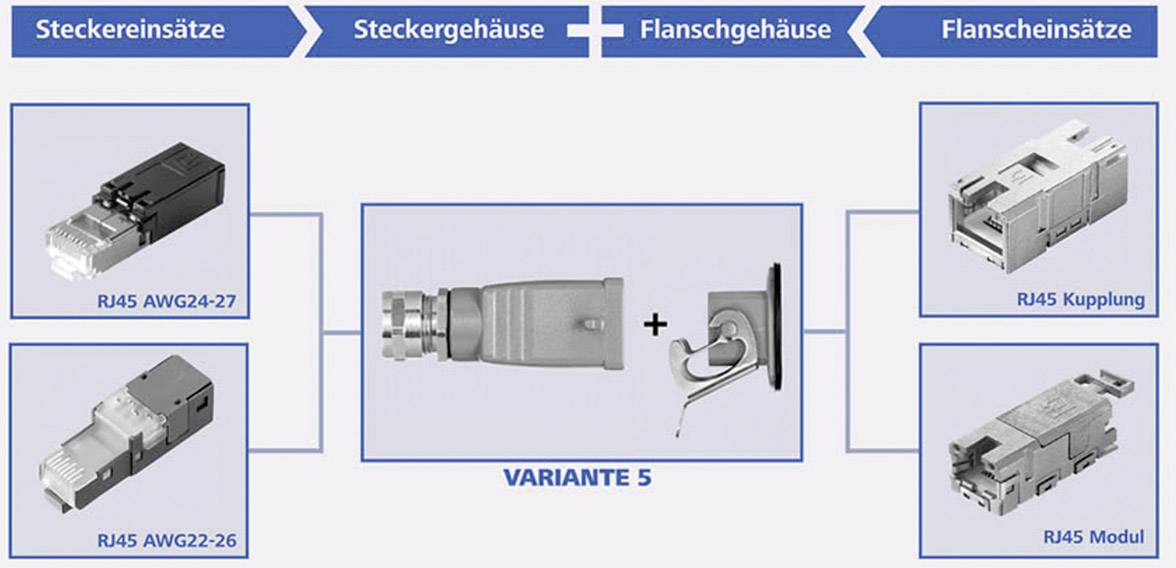

Diagram shows various RJ45 connectors: plug housings, flange inserts, and connector inserts labelled 'Variant 5'.

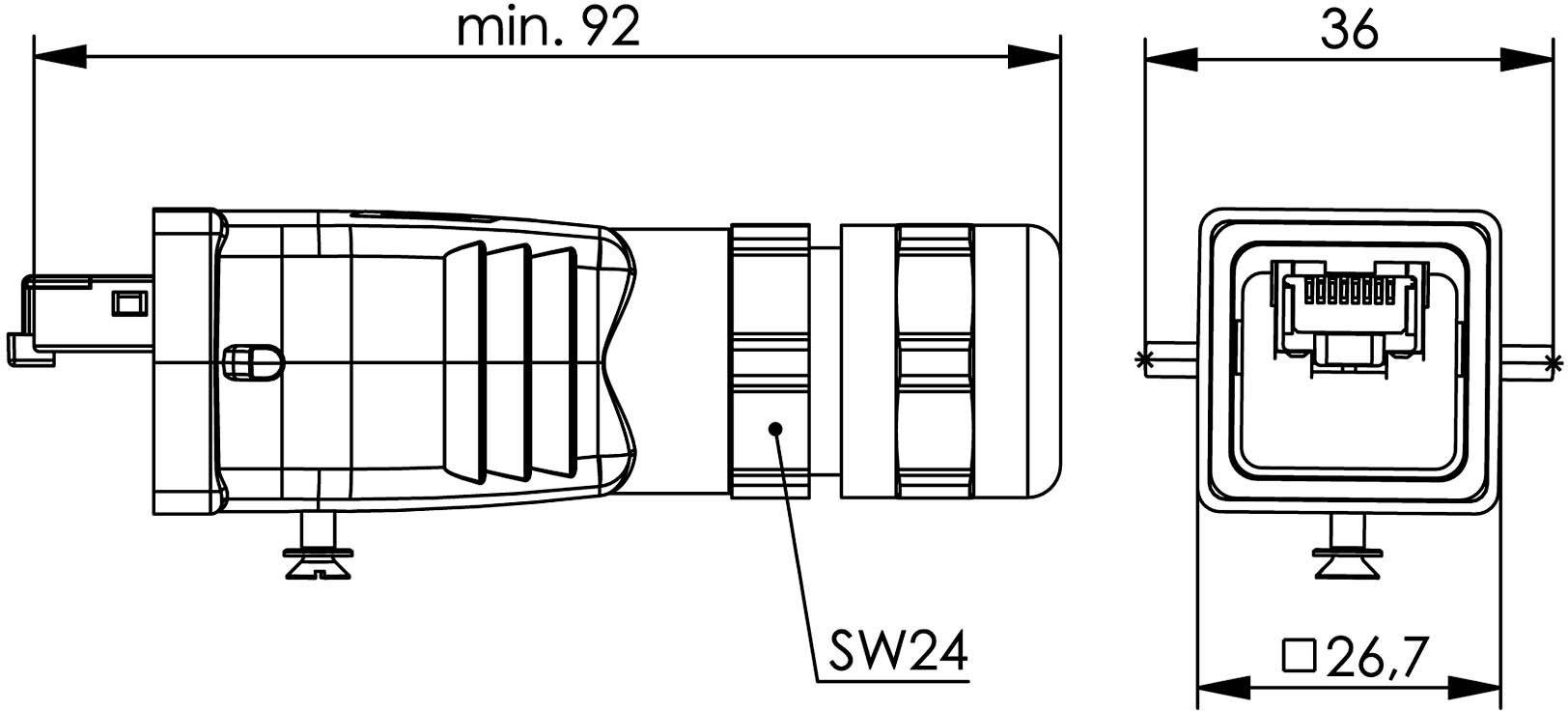

Technical drawing of a connector in side and front view. Dimensions are: Minimum length 92 mm, width 36 mm, key width 24 mm.

1/3

Image similar

Connector standard

RJ45

Specification

CAT 6

Connector type

Plug, straight

Product type

RJ45 connector

Type

100007468

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 36.97 / piece)

€ 49.57

-25 %

€

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Type: 100007468

Content: 1 pc(s)

Factory colour: Aluminium

Connector standard: RJ45

: IP67 (when connected)

Connection: Cut & Clip

Material (details): Aluminium die-casting

Type: Straight

: CAT 6

AWG max.: 22

AWG (min.): 26

Connector type: Plug, straight

Nominal current (details): 1.0 A at 50°C

: 22-26

Pins: 8P8C

Mating cycles: min. 750

Temperature range: -40°C to + 70 °C

RoHS-compliant: Yes

Standards: IEC 61076-3-106

Product type: RJ45 connector

Documents & Downloads

Datasheet

Datasheet 1179951 Telegärtner 100007468 STX V5 RJ45 connector set version 5 100007468 Plug, straight Pins: 8P8C Aluminium 1 pc(s)
