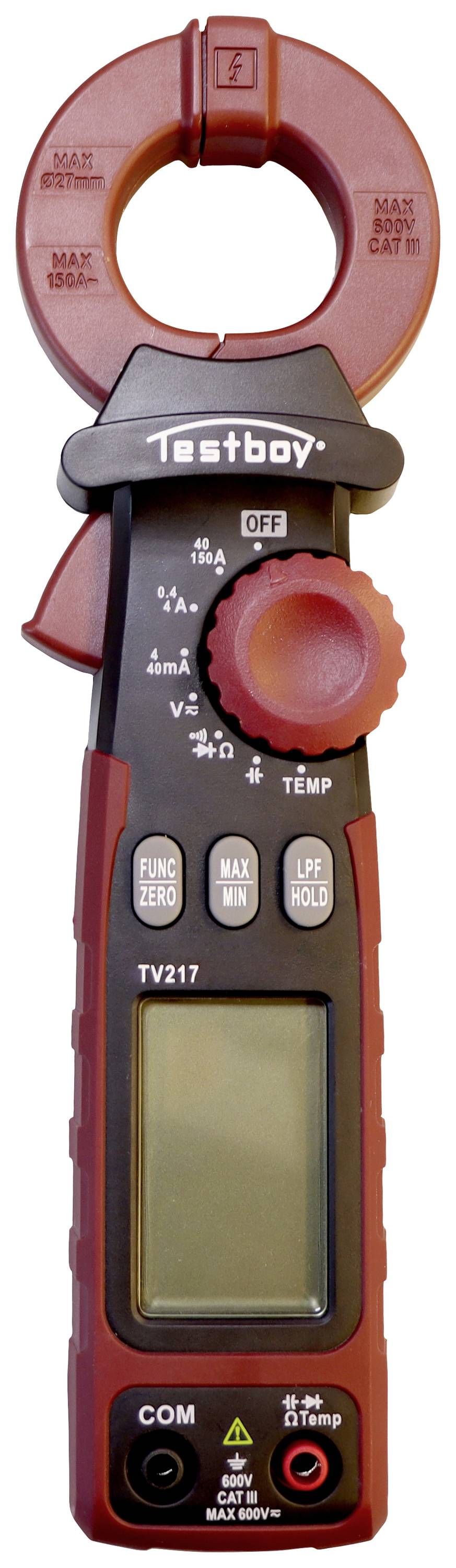

Testboy TV 217 Clamp meter Digital CAT III 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TV 217
- CAT III 600 V
Technical specifications
- Voltage reading range DC (min.)
0 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0 V
- V AC reading range (max.)
600 V
- A AC reading range (min.)
0 A
- Amperage reading range AC (max.)
150 A
- Reading range - resistance
400 Ω - 40 MΩ
- Reading range - capacity
40 nF - 40 mF
- Measurement type (details)
True RMS
- Power supply (details)
2x 1.5 V batteries type AAA
- Height
213 mm
- Width
62 mm
- Length
38 mm
- Weight
250 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC
- Type
TV 217
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 38 x 62 x 213 mm
- Opening range of current clamps
27 mm
Documents & Downloads
Datasheet
Datasheet 2885783 Testboy TV 217 Clamp meter Digital CAT III 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 2885783 Testboy TV 217 Clamp meter Digital CAT III 600 V Display (counts): 4000
Description
The leakage current clamp Testboy TV 217 shows its performance with the ground conductor and contact current measurement of systems, fixed connected devices and three-phase consumers. Its extensive multimeter functions make it a widely applicable all-rounder, with safe and comfortable ergonomics.
This text is machine translated.
This text is machine translated.
Features
- Voltage range 0 to 600 V AC/DC
- Current range up to 150 A AC
- Min. /maximum function
- Measure resistance
- Diode test
- CAT III 600V
- Easy-to-read LCD display
- IEC/EN 61010-1 (DIN VDE 0411); EN 61010-2-030; EN 61010-2-031; EN 61010-2-032; EN 61010-2-033
Scope of delivery
- Bag
- User manual
- Batteries
