testo 0572 1761 176 T1 Temperature data logger Unit of measurement Temperature -35 up to 70 °C
EAN:
Part number:
Item no:
Number
Total (€ 419.33 / piece)
€
Highlights & Details
Temperature data logger testo 176 T1
- 1x Internal channel with metal housing & no display
- Sensor: Pt100 class A
- Units: °C, °F
- Memory: 2 million Readings
- IP68 Rated
Technical specifications
- Channels: 1 x internal
- Temperature resolution
0.01 °C
- Sampling interval
1 s - 24 h
- Memory
2 million measured values
- Power supply (details)
3.6 V lithium battery (TLH -5930)
- Battery life
Approx. 8 years at 15 min recording rate
- Sensor
Pt 100 Class A
- Dim
(L x W x H) 33 x 63 x 103 mm
- Depth
33 mm
- Height
103 mm
- Length
33 mm
- Width
63 mm
- Temperature reading range
-35 up to 70 °C
- Memory (readings)
2000000
Manufacturer's standards (no certificate)
- Unit of measurement
Temperature
- Type
176 T1
- Reading accuracy temperature
0.2 °C
- Sample rate (max.)
24 h
- Sample rate (min.)
1 s
- Temperature reading range (max.)
70 °C
- Temperature reading range (min.)
-35 °C
- Temperature accuarcy (details)
±0.2 °C
- Casing
IP 68
- Reading range
Temperature:
- Power supply
Li battery (TLH-5903)
- Product type
Temperature data logger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 123478 testo 0572 1761 176 T1 Temperature data logger Unit of measurement Temperature -35 up to 70 °C
Information
Information 123478 testo 0572 1761 176 T1 Temperature data logger Unit of measurement Temperature -35 up to 70 °C
Download
Download 123478 testo 0572 1761 176 T1 Temperature data logger Unit of measurement Temperature -35 up to 70 °C
Description
The data logger testo 176 T1 convinces by its exact temperature monitoring, even under extreme conditions. The data logger also has a USB port and an SD card slot, which makes reading off data quick and easy. Further advantages are the larger storage capacity and power supply via standard batteries. The robust metal casing protects against mechanical effects such as Impacts.
This text is machine translated.
This text is machine translated.
Features
- Metal housing
- Less frequent read thanks to larger memory
- Easy to read thanks to larger display
- Simple battery replacement

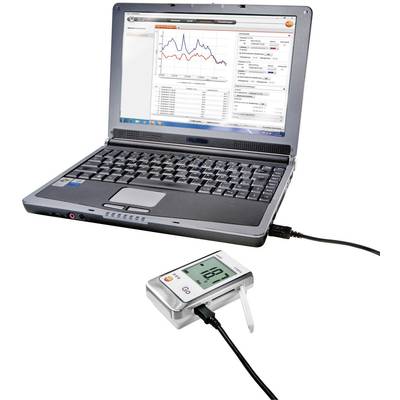

- Easy to read off with standardised USB cable or SD card
- Mini USB connection available
- SD card slot.
Scope of delivery
- Wall bracket · Lock · Lithium battery (TLH-5903) · User manual · Factory calibration certificate.
- This text is machine translated.
Hints
Comsoft 5 Basic available to downloaded free of charge under 'Downloadable documents'. USB cable and software are not included in the delivery.
