1/8
testo 0572 2034 Saveris 2-H1 Multi-channel data logger Unit of measurement Temperature, Humidity -30 up to 50 °C 0 up to
EAN:
Part number:
Item no:
Datasheet (PDF)
25 Piece(s) (Only while stocks last)
Sales and shipping:
Number
Total (€ 365.55 / piece)
€
Highlights & Details
WLAN-data logger system: testo Saveris 2-H1
- All air-conditioning measuring data are at any time by flexibly via PC, tablet or smart phone available.

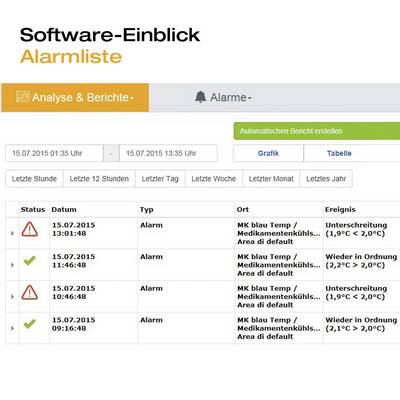

- Reliable alert when a threshold is exceeded by E-mail or SMS (optional)

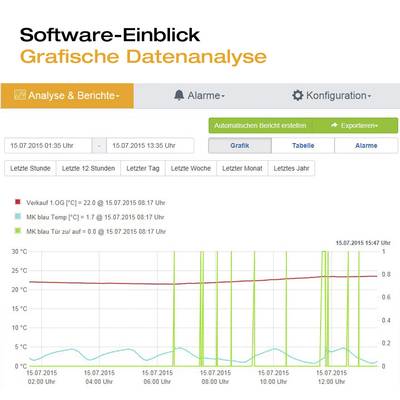

- Detailed evaluation and analysis of your measurement data.
Technical specifications
- Temperature measurement range: -30 … +50 °C
- Accuracy: Temperature ± 0.5 °C
- Temperature resolution: 0.1 °C
- Storage temperature: -40 … +70 °C
- Operating temperature: -30…+50 °C
- Protection class IP 42
- Measurement speed: Basic: 15 min. (Fix)/Advanced: 1 Min. … 24 h (flexible)
- Communication cycle: Basic: 15 min. (Fix)/Advanced: 1 Min. … 24 h (flexible)
- Dimensions (width * High * Depth): 95 x 75 x 30.5 mm
- Wall: Included
- Memory: 10,000 values/channel
- Door contact: No
- Battery life: 24 months at 25°C and 15 min measuring and communication cycle, 24 months at -30°C and 15 min measuring and communication cycle with Energizer Batteries
- Power supply: 4 x AA AlMn AA batteries, power supply optional, for temperatures in cold than -10 °C, please use Energizer Batteries
- Temperature resolution
0.1 °C
- Sampling interval
15 min.
- Sensor
NTC, internal
- Dim
(L x W x H) 30.5 x 95 x 75 mm
- Weight
450 g
- Channels
1
- Height
75 mm
- Length
30.5 mm
- Width
95 mm
- Temperature reading range
-30 up to 50 °C
- Memory (readings)
10000
IP30
Manufacturer's standards (no certificate)
- Interfaces
USB
- Unit of measurement
Temperature
Humidity
- Type
Saveris 2-H1
- Reading accuracy temperature
0.5 °C
- Sample rate (max.)
24 h
- Sample rate (min.)
1 min
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range (max.)
50 °C
- Temperature reading range (min.)
-30 °C
- Humidity reading accuracy
2 RH
- Resolution
0.1 °C
- Power supply
AA battery (4x)
PSU
- Product type
Multi-channel data logger
Documents & Downloads
Datasheet
Datasheet 1586123 testo 0572 2034 Saveris 2-H1 Multi-channel data logger Unit of measurement Temperature, Humidity -30 up to 50 °C 0 up to
User & Safety Instructions
User & Safety Instructions 1586123 testo 0572 2034 Saveris 2-H1 Multi-channel data logger Unit of measurement Temperature, Humidity -30 up to 50 °C 0 up to
Description

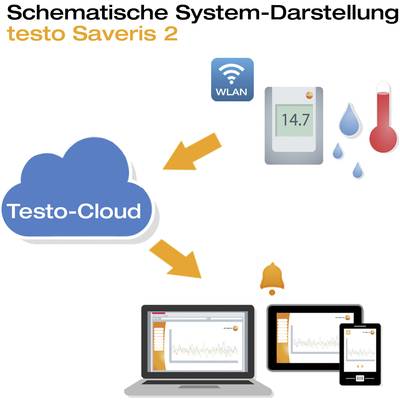

WLAN data logger system consists of:

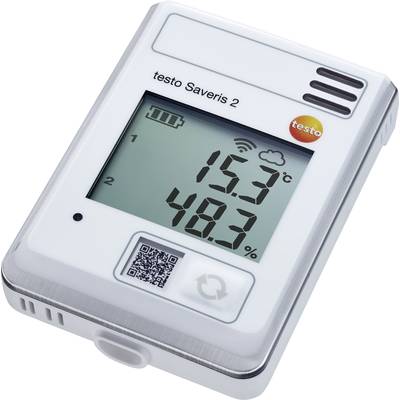

Sensors for temperature and humidity with display and integrated capacitive sensor.

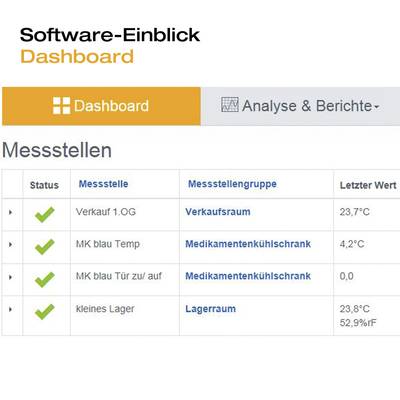

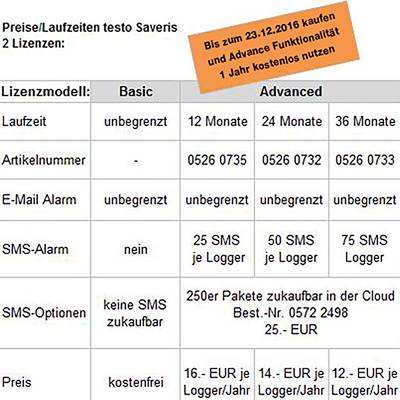

Cloud package with configuration and evaluation functions: You can according to your needs between the free Basic - and a wide range of advanced functionality.
You can monitor the system to the WLAN data logger testo Saveris 2-H1 their temperatures and humidity in storage, cooling and work places. With the integrated sensor measured temperature and humidity values are also reliably over long periods of time recorded and directly via your WLAN to the Testo Cloud (online data storage). With your internet-enabled smartphone, tablet or PC, you can use this measurement values at any time and anywhere. With exceeding or shortfalls, you will be informed by e-mail or SMS and can, if necessary, to react fast.
This text is machine translated.
Sensors for temperature and humidity with display and integrated capacitive sensor.
Cloud package with configuration and evaluation functions: You can according to your needs between the free Basic - and a wide range of advanced functionality.
You can monitor the system to the WLAN data logger testo Saveris 2-H1 their temperatures and humidity in storage, cooling and work places. With the integrated sensor measured temperature and humidity values are also reliably over long periods of time recorded and directly via your WLAN to the Testo Cloud (online data storage). With your internet-enabled smartphone, tablet or PC, you can use this measurement values at any time and anywhere. With exceeding or shortfalls, you will be informed by e-mail or SMS and can, if necessary, to react fast.
This text is machine translated.
Features
- WLAN-data logger system testo Saveris 2-H1
- Including a free cloud access
- Micro USB cable
- Wall bracket with lock
- Batteries (4 x AA AlMn mignon cells)
- Quick guide
- Calibration record
Scope of delivery
- WLAN-data logger system testo Saveris 2-H1
- Including a free cloud access
- Micro USB cable
- Wall bracket with lock
- Batteries (4 x AA AlMn mignon cells)
- Quick guide
- Calibration record
Hints
Product description
The WLAN-data logger system testo Saveris 2 is the simple, flexible, and secure solution for the measurement and monitoring of temperature and humidity values in your storage, cooling and work places. The system consists of at least a radio data logger and a free cloud access (online data storage). As part of this data logger system collects and transmits the temperature and humidity data logger testo Saveris 2-H1 with integrated temperature and humidity sensor all the measured values directly via the WLAN in the testo cloud. By means of the alarm function, you can immediately when limiting values are exceeded by E-Mail or (optional) SMS warning.
WLAN-data logger, reading and evaluation
The WLAN-data logger testo Saveris2-H1 can be easily installed without technical knowledge (no software installation is required). For commissioning, as well as evaluation and analysis of the measured data is available the free cloud functionality basic are available. On all measurements and analysis functions, you can at any time and anywhere with an internet-enabled smartphone, tablet or PC.
Also on the data logger display are current measured values, limit value violations and the remaining battery life. The standard batteries (AA) have a shelf life of 24 months and can be changed at any time by the user. The internal data memory of the radio data logger is 2 x 10000 measurement values and the housing is protected according to IP 30.
