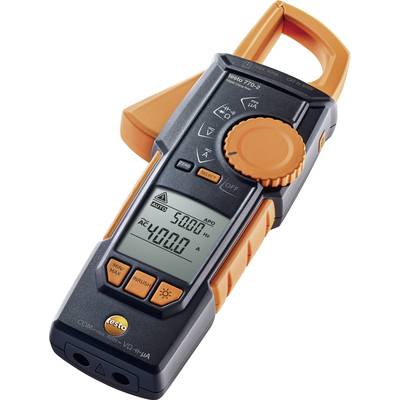

testo 770-2 Clamp meter, Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
8 Piece(s)
Sales and shipping:
Number
Total (€ 210.08 / piece)
€
Only 8 Piece(s) available
Highlights & Details
Hook-Clamp Digital Multimeter with RMA Inrush - testo 770-2
- Unique hook-on function separates and grabs wires without using your hands
- Includes μA for flame rod and can measure temperature using an optional Type K thermocouple adapter
- Retractable post makes hook release fast and easy
- Meter automatically identifies testing in-process and selects correct meter configuration to save time and optimize accuracy
Technical specifications
- Basic accuracy: 0,8 %
- AC/DC voltage: 1 mV ... 600 V AC/DC
- AC/DC current: 0,1 … 400 A AC/DC
- μA current range: 0,1 … 400 μA AC/DC
- Resistance: 0,1 Ω … 40 MΩ
- Frequency: 0,001 Hz … 10 kHz
- Capacitance: 0,001 μF … 100 μF
- Temperature: -20 … +500 °C
- Safety category: CAT IV 600 V
- CAT III 1000 V
- Operating temperature: -10 … +50 °C
- Dimensions: 243 x 96 x 43 mm
- Safety certifications: TÜV, CSA, CE
- Standards: EN 61326-1, EN 61140
- Voltage reading range DC (min.)
1 mV
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 A
- A DC reading range (max.)
400 A
- A AC reading range (min.)
0.1 A
- Amperage reading range AC (max.)
400 A
- Reading range - resistance
0.1 Ω - 40 MΩ MΩ
- Reading range - capacity
0.001 μF - 100 μ F
- Frequency reading range
0.001 Hz - 10 kHz
- DC resistance
11 MΩ
- AC resistance
11 MΩ
- Basic accuracy
0.8 %
- Measurement type (details)
True RMS
- Frequency range
50/60 Hz
- Power supply (details)
3x AAA battery
- Height
43 mm
- Width
96 mm
- Length
243 mm
- Weight
330 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
770-2
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 243 x 96 x 43 mm
- Temperature reading range (max.)
+500 °C
- Temperature reading range (min.)
-20 °C
- Opening range of current clamps
28 mm
Documents & Downloads
Datasheet
Datasheet 1436964 testo 770-2 Clamp meter, Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 1436964 testo 770-2 Clamp meter, Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 4000
Description
The testo 770 Hook-clamp Digital Multimeter (DMM) is ideally suited for electrical work in HVAC applications. Testo’s unique hooking clamp can be used to separate then grab wires. The easy hook-off retractable post releases the wires when testing is complete. You can safely work in tight spaces without using your hands. The 770 series identifies the testing in-process and automatically selects the correct meter configuration which saves you time and increases your accuracy.
The 770 series of instruments are rich in the features HVAC techs need and want including TRMS, starting current, and frequency measurement. The 770-2, which includes μA can also measure temperature using an optional thermocouple adapter.
The 770 series of instruments are rich in the features HVAC techs need and want including TRMS, starting current, and frequency measurement. The 770-2, which includes μA can also measure temperature using an optional thermocouple adapter.
Features
- Complete retractable pliers thighs
- Large two-line display
- Automatic detection of measurement
- Measurement of start-up currents
- Temperature adapter for K-thermocouples
- Diode testing
- Continuity testing
- Hold
- MinMax
- True RMS
Scope of delivery
- testo 770-2 Hook-Clamp DMM with TRMS
- Batteries
- 1 set of measuring cables
- Adapter for type K thermocouples.
